| 최소 주문 수량 : | 1km | 포장 세부 사항 : | 하나의 나무 드럼에서 1/2/3/4/5 km |
|---|---|---|---|
| 배달 시간 : | 3-5년 | 지불 조건 : | L/C, T/T, 웨스턴 유니온 |
| 공급 능력 : | 일 당 30 킬로미터 |
| 원래 장소: | 광저우 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE FCC SDOC | 모델 번호: | Gydts/OPLC |
|
상세 정보 |
|||
| 재킷 소재: | PE, MDPE, LSZH, HDPE | 외경: | 9mm |
|---|---|---|---|
| 섬유 수: | 2-144Core | 구조: | 유닛 튜브/연선 연선 |
| 강도 멤버: | 스틸 와이어/FRP 유리 원사 | 제품명: | 하이브리드 광섬유 케이블 |
| 섬유 종류: | YOFC 또는 요청에 따라 | 애플리케이션: | 공중, 덕트, 오버헤드 설치 |
| 색상: | 검은색 | 길이: | 2km 또는 맞춤형 길이 |
| 강조하다: | 6 core hybrid optical cable,OPLC outdoor communication cable,hybrid fiber optic cable with copper wires |
||
제품 설명
G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC GYDTW/GYDTS
Hybrid Cable 2–24 Core GYXTW With Two Copper Power Wires
Composite hybrid fiber optic cables combine optical fibers and metal conductors in a single bundle, providing multiple transmission paths while reducing installation cost and time.
Construction:
Fiber: 250μm fibers in high-modulus loose tubes filled with water-resistant compound.
Armor: Tube wrapped with longitudinal PSP and water-blocking material for compactness and waterproofing.
Strength Member: Two parallel steel wires alongside the steel tape.
Outer Jacket: Durable polyethylene (PE) sheath.
Features
Excellent mechanical and temperature performance
Hydrolysis-resistant high-strength loose tube
Water-blocking filling compound for fiber protection
Compact, lightweight, flexible, and bend-resistant
Low dispersion and attenuation
Steel wire and corrugated steel tape armor for moisture and crush resistance
Optical Fiber Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Technical Parameters
| Range of Temperature | -20c~ +60c | |||||||||
| Riser | Type OFNR/OFN FT4 | |||||||||
| Plenum | Type OFNR/OFN FT6 | |||||||||
| Jacket | LSZH or PE | |||||||||
| Code name | cable cores |
Diameter (mm) |
Copper Wire (mm) |
Linear mass (kgk m) |
Tensile | Crush | Bending radius |
|||
| Short Term (N) |
Long Term (N) |
Short lerm N) |
Long Term (N) |
short Term N) |
Long Term (N) |
|||||
| OPLC-2*0.5 | 6~24 | 10 | 2*0.5 | 125 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.5 | 6-~24 | 10 | 4*0.5 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*0.75 | 6~24 | 10 | 2*0.75 | 128 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.75 | 6~24 | 10 | 4*0.75 | 135 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| oPLC-2*1.0 | 6~24 | 10 | 2*1.0 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.0 | 6-~24 | 12 | 4*1.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*1.5 | 6~24 | 12 | 2*1.5 | 140 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.5 | 6~24 | 12 | 4*1.5 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*2.5 | 6~-24 | 12 | 2*2.5 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*2.5 | 6-~24 | 14.5 | 4*2.5 | 180 | 1500 | 600 | 1000 | 300 | 20D | 10D |

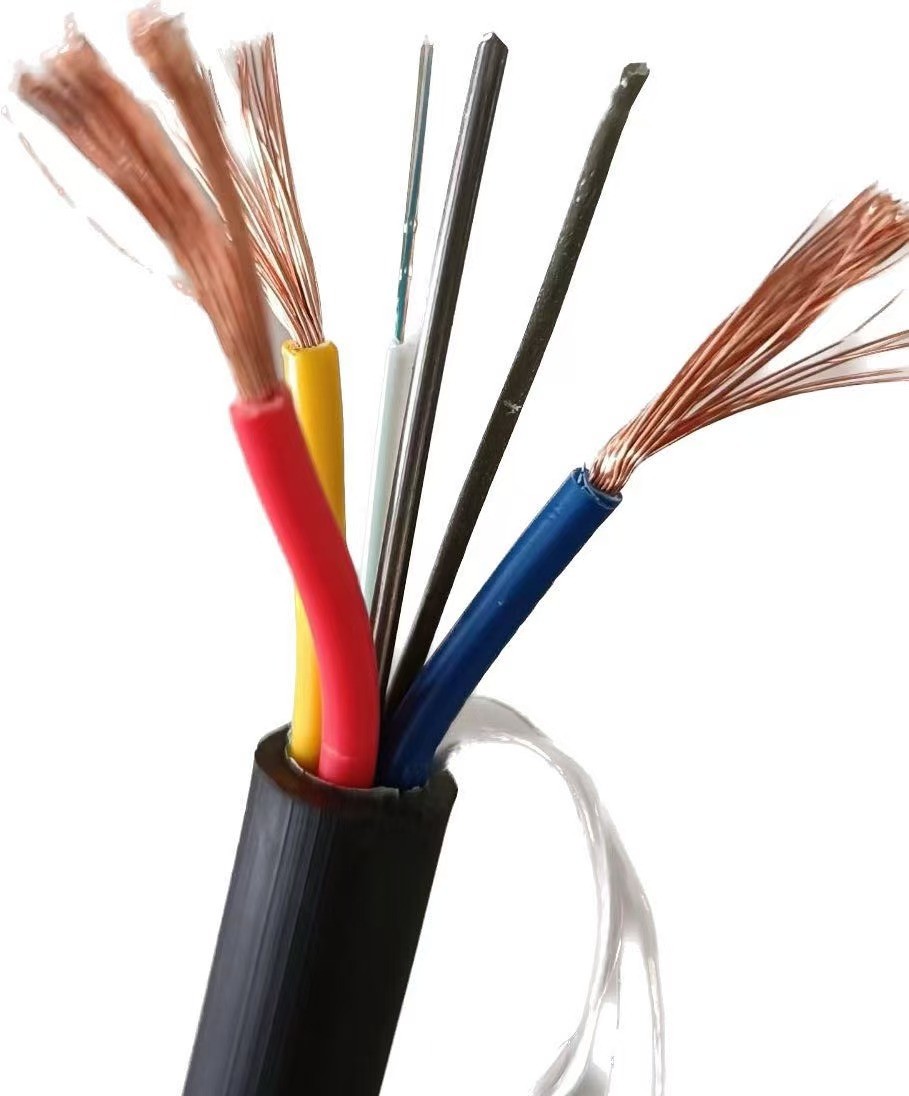

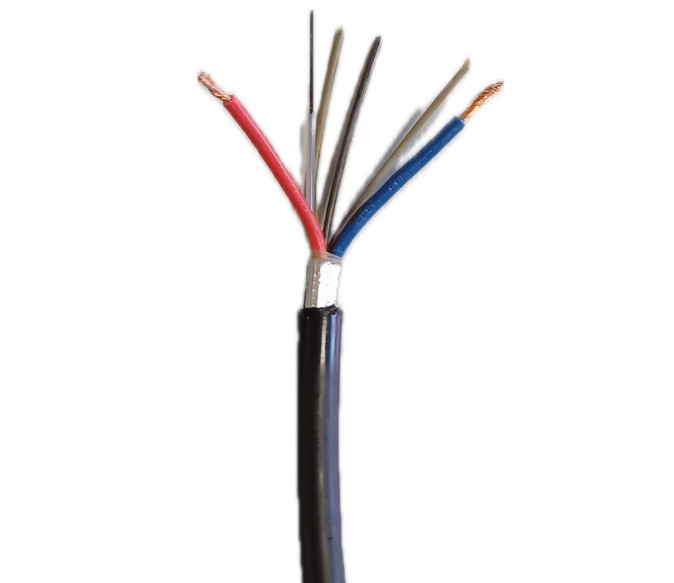

Product Image
Application
Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.
Packing&Delivery
1/2/3/4/km in one wooden drum,deliver days:5-8work days
FAQ
Are you a trading company or manufacturer?
We are a manufacturer with 10+ years of experience in R&D and production of fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou, China – welcome to visit!
How about product quality?
All fibers are tested before delivery. Free samples are available upon request to check quality after price confirmation.
Do you accept small orders?
Yes, small orders are welcome. We support new projects, as all businesses often start small.
What is the delivery time?
Usually 3–7 working days, depending on order quantity. We ensure prompt shipment after payment.
Do you offer OEM service?
Yes, we provide OEM. Your logo can be printed, and customized ideas are welcome.
