담당자 : JQ CABLE
전화 번호 : +8618122383351
왓츠앱 : +8618122383351
| 최소 주문 수량 : | 1km | 포장 세부 사항 : | 하나의 나무 드럼에서 1/2/3/4/5 km |
|---|---|---|---|
| 배달 시간 : | 3-5년 | 지불 조건 : | L/C, T/T, Western Union |
| 공급 능력 : | 일 당 30 킬로미터 |
| 원래 장소: | 광저우 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE FCC SDOC | 모델 번호: | Gydts/OPLC |
|
상세 정보 |
|||
| 재킷 재료: | PE, MDPE, LSZH, HDPE | 외경: | 9mm |
|---|---|---|---|
| 섬유 수: | 2-144Core | 구조: | 유닛 튜브/연선 연선 |
| 강도 멤버: | 스틸 와이어/FRP 유리 원사 | 제품 이름: | 하이브리드 광섬유 케이블 |
| 섬유 유형: | YOFC 또는 요청에 따라 | 신청: | 공기, 도관 |
| 색상: | 검은색 | 길이: | 2km 또는 맞춤형 길이 |
| 섬유 유형: | 단일 모드/멀티 모드 | 케이블 색상: | 검은 색/노란색/주황색/녹색/파란색/자주색/회색 |
| 등록 상표: | Jianghong 또는 OEM | 외부 재킷: | PE (HDPE/LDPE), PVC, LSZH |
| 케이블 유형: | 하이브리드 | 광섬유 소재: | PMMA 및 구리 전선 |
| 재료 모양: | 둥근 와이어 | 재킷 재료: | PVC/LSZH/OFNR/OFNP |
| 외피 재료: | PVC | 섬유 수: | 2-144 코어 |
| 기준: | YD/T 901 / IEC 60794-3-10 | 반환 손실: | ≥50dB |
| 설치: | 공중선/튜브/덕트 | ||
| 강조하다: | 6 core hybrid fiber optic cable,8 core photoelectric hybrid cable,OPLC fiber optic cable with copper wires |
||
제품 설명
G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires
GYDTW/GYDTS
Hybrid Cable 2–24 Core GYXTW with Two Copper Power Wires

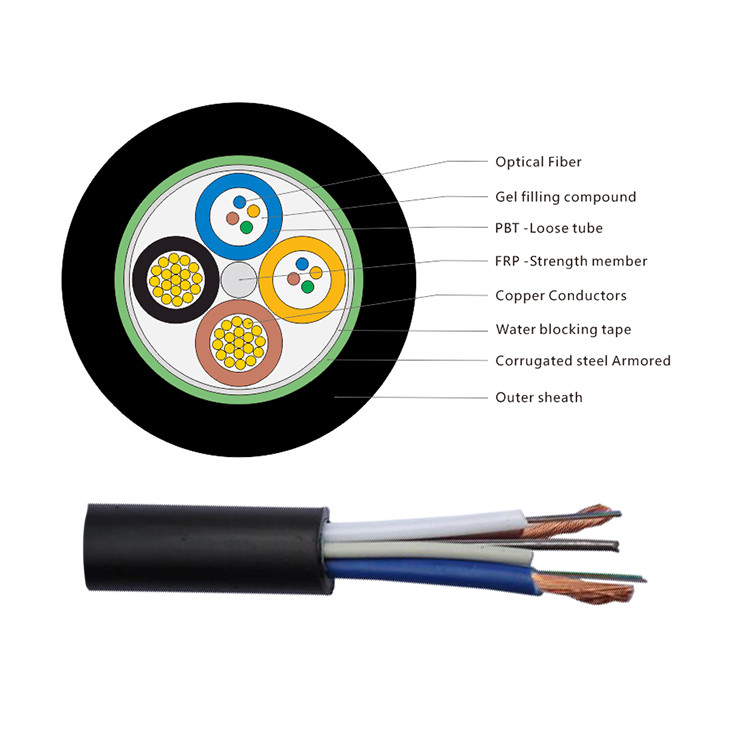

Composite fiber optic cables combine multiple components—such as optical fibers and metal conductors—within a single bundle. This design allows multiple transmission paths in one cable, reducing installation costs and lead time. The 250μm fiber is placed in a loose tube made of high-modulus plastic, filled with a water-resistant compound. The tube is wrapped with a layer of PSP, with water-blocking material between the PSP and the loose tube to ensure compactness and watertight performance. Two parallel steel wires run along both sides of the steel tape for added strength. The cable is completed with a durable polyethylene (PE) jacket.
Features
Excellent mechanical and temperature performance
High-strength loose tube with hydrolysis resistance
Special filling compound for optimal fiber protection
Compact, lightweight, flexible design with strong bend resistance
Low dispersion and attenuation; precise fiber excess length and controlled stranding ensure superior mechanical and environmental performance
Steel wire and corrugated steel tape armoring provide moisture resistance and crush protection
Optical Fiber Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Technical Parameters
| Range of Temperature | -20c~ +60c | |||||||||
| Riser | Type OFNR/OFN FT4 | |||||||||
| Plenum | Type OFNR/OFN FT6 | |||||||||
| Jacket | LSZH or PE | |||||||||
| Code name | cable cores |
Diameter (mm) |
Copper Wire (mm) |
Linear mass (kgk m) |
Tensile | Crush | Bending radius |
|||
| Short Term (N) |
Long Term (N) |
Short lerm N) |
Long Term (N) |
short Term N) |
Long Term (N) |
|||||
| OPLC-2*0.5 | 6~24 | 10 | 2*0.5 | 125 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.5 | 6-~24 | 10 | 4*0.5 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*0.75 | 6~24 | 10 | 2*0.75 | 128 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.75 | 6~24 | 10 | 4*0.75 | 135 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| oPLC-2*1.0 | 6~24 | 10 | 2*1.0 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.0 | 6-~24 | 12 | 4*1.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*1.5 | 6~24 | 12 | 2*1.5 | 140 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.5 | 6~24 | 12 | 4*1.5 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*2.5 | 6~-24 | 12 | 2*2.5 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*2.5 | 6-~24 | 14.5 | 4*2.5 | 180 | 1500 | 600 | 1000 | 300 | 20D | 10D |

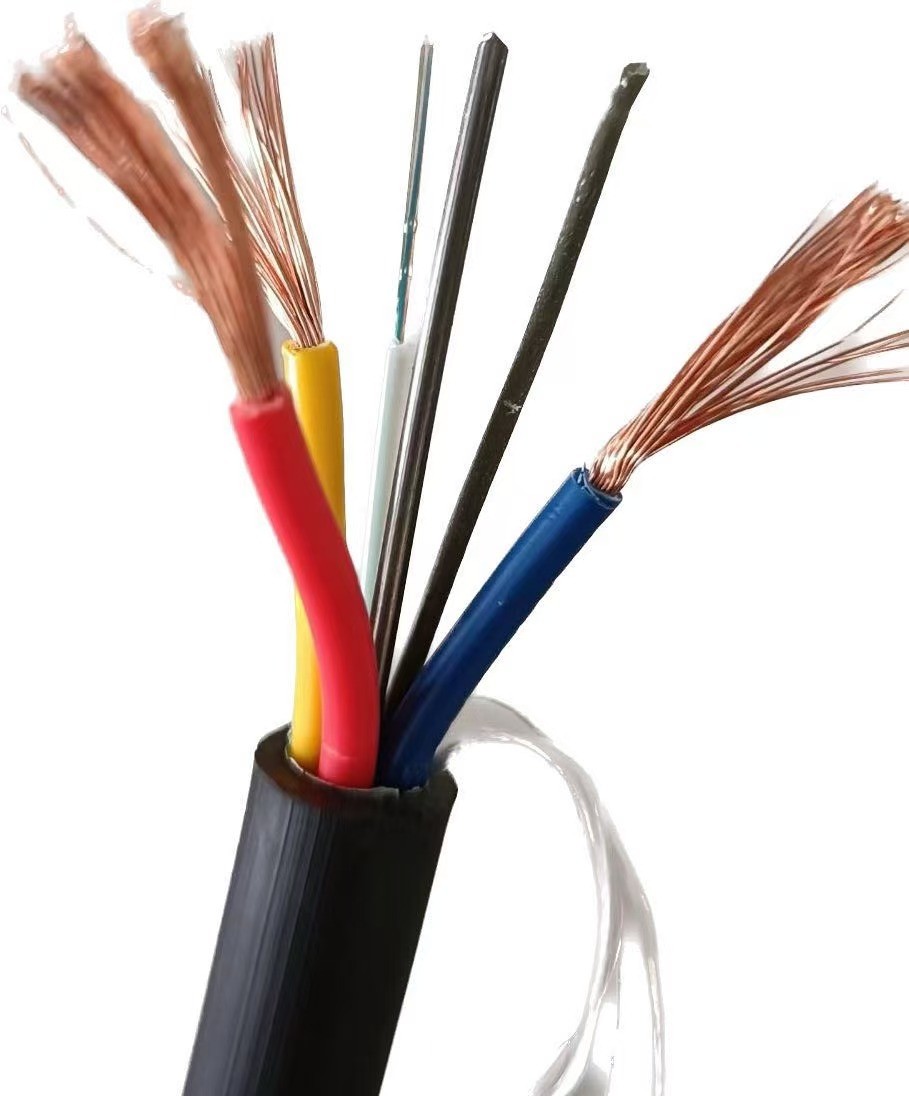

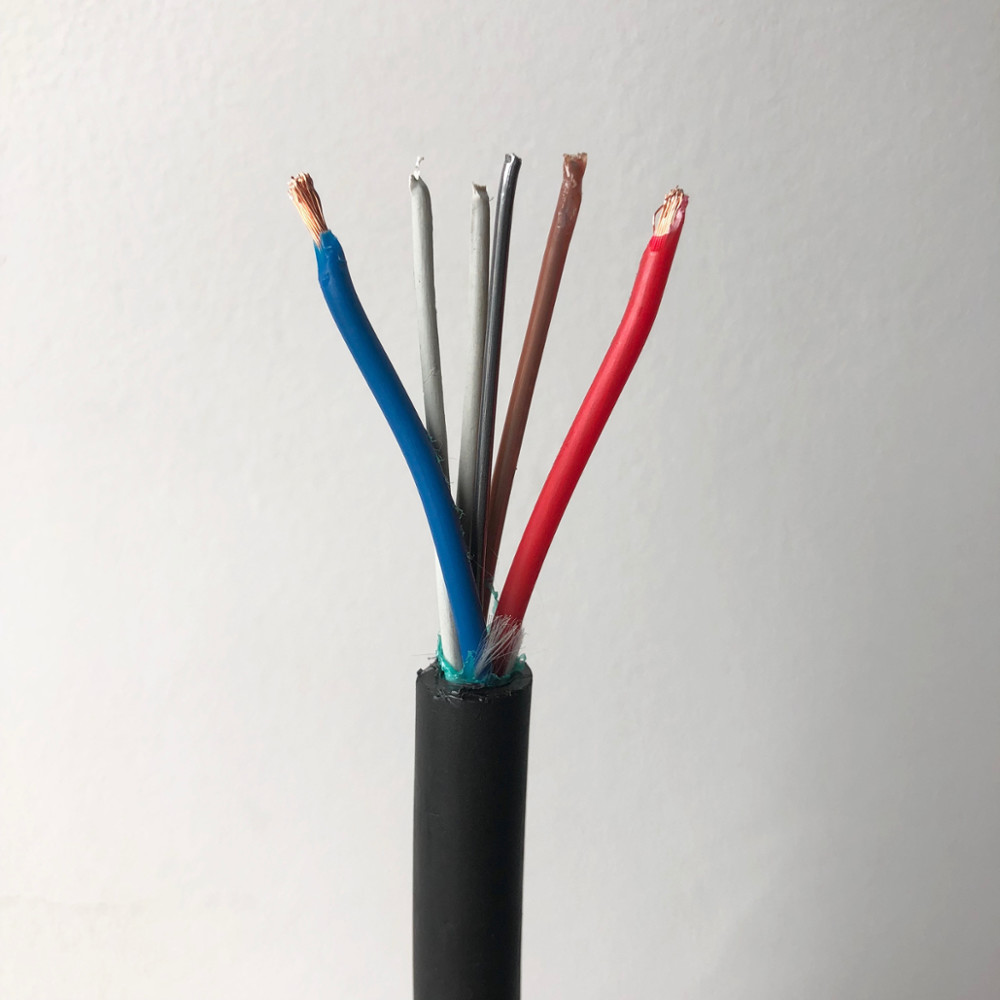

Product Image
Application
Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.
Packing&Delivery
1/2/3/4/km in one wooden drum,deliver days:5-8work days
FAQ
Are you a trading company or manufacturer?
We are a manufacturer with 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—welcome to visit us!
What about product quality?
Every fiber is tested before delivery to ensure quality. After price confirmation, you can request free samples to check our products.
Do you accept small orders?
Yes, small orders are welcome. We support new customer projects because business often starts small.
What is the delivery time?
Typically 3–7 working days, depending on order quantity. We will arrange your goods as soon as possible after payment.
Do you provide OEM services?
Yes, OEM is available. We can print your logo on the products, and we are open to any customization ideas you have.
