OPGW Optical Power Ground Wire Cable for Overhead Power Line Communication
Product Introduction

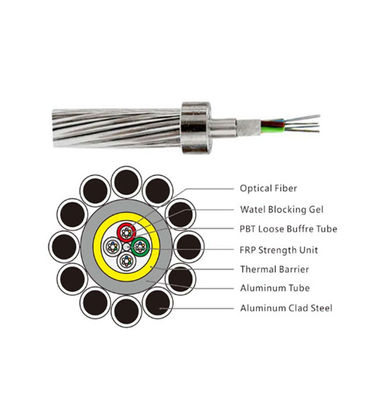

OPGW (Optical Power Ground Wire) cable integrates optical fiber communication with the grounding function of overhead power transmission lines. Installed at the top of power towers, it acts as both a ground wire and a fiber optic communication medium. With a stainless steel tube structure and aluminum-clad steel wires, OPGW provides strong mechanical strength, reliable fiber protection, and stable data transmission for modern power networks.
Key Features
Applications
OPGW with PBT Aluminum Tube
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-113(87.9;176.9) | 48 | 14.8 | 600 | 87.9 | 176.9 |
| OPGW-70(81; 41) | 24 | 12 | 500 | 81 | 41 |
| OPGW-66(79;36) | 36 | 11.8 | 484 | 79 | 36 |
| OPGW-77(72;36) | 36 | 12.7 | 503 | 72 | 67 |
OPGW Typical Designs of Stranded Stainless Steel Tube
Typical design for Double Layer:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] | 24 | 12.6 | 381 | 55.4 | 62.9 |
| OPGW-110[90.0;86.9] | 24 | 14 | 600 | 90 | 86.9 |
| OPGW-104[64.6;85.6] | 28 | 13.6 | 441 | 64.6 | 85.6 |
| OPGW-127[79.0;129.5] | 36 | 15 | 537 | 79 | 129.5 |
| OPGW-137[85.0;148.5] | 36 | 15.6 | 575 | 85 | 148.5 |
| OPGW-145[98.6;162.3] | 48 | 16 | 719 | 98.6 | 162.3 |
Typical design for Three Layer:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] | 28 | 20.15 | 1696 | 343 | 191.4 |
| OPGW-254[116.5;554.6] | 36 | 21 | 889 | 116.5 | 554.6 |
| OPGW-347[366.9;687.7] | 48 | 24.7 | 2157 | 366.9 | 687.7 |
| OPGW-282[358.7;372.1] | 96 | 22.5 | 1938 | 358.7 | 372.1 |
OPGW Typical Designs of Central AL-covered Stainless Steel Tube
Typical Design for Single Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) | 24 | 11.9 | 504 | 82.3 | 46.8 |
| OPGW-70(54.0;8.4) | 24 | 11 | 432 | 70.1 | 33.9 |
| OPGW-80(84.6;46.7) | 48 | 12.1 | 514 | 84.6 | 46.7 |
Typical Design for Double Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) | 36 | 15.9 | 617 | 87.9 | 176.9 |
OPGW Typical Designs of Central Stainless Steel Loose Tube
Typical design for Single Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
| OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
| OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
| OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
| OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 |
| OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
| OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
| OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
| OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |
Typical design for Double Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127(141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127(77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |
