| 최소 주문 수량 : | 5km | 가격 : | 1680USD / km |
|---|---|---|---|

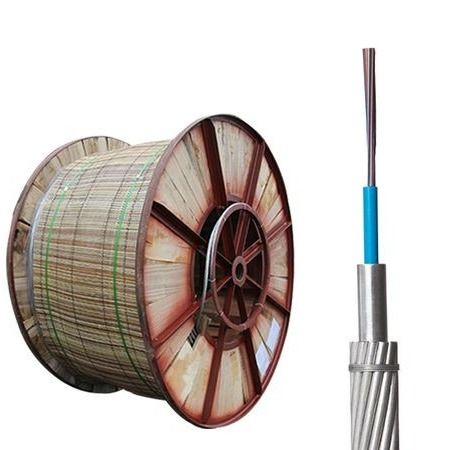

| 포장 세부 사항 : | 하나의 나무 드럼에서 1/2/3/4/5 km | 배달 시간 : | 15 Dyas |
| 지불 조건 : | L/C, T/T, 웨스턴 유니온 | 공급 능력 : | 하루에 50km |
| 원래 장소: | 광동 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO9001/CE/ROHS/FCC | 모델 번호: | OPGW-24B1-86 (87.6; 55.8) |
|
상세 정보 |
|||
| 와이어의 섹션: | 68.8mm | Al 튜브의 섹션: | 17.6mm |
|---|---|---|---|
| 섬유 종류: | 단일 모드 G652D | 섬유 수: | 24 48 코어 |
| 설치: | 전원 시스템 | 섬유 브랜드: | Corning/ YOFC 또는 고객화 |
| 섬유 종류: | G652d G655 G657 | 케이블 모드: | 지상 와이어 |
| 강조하다: | OPGW fiber optic cable 24 core,aerial optical cable G652D,single mode OPGW cable 48 core |
||
제품 설명
Main Functions
OPGW cables serve power communication systems, supporting relay protection, automatic control, and data transmission. Installed along high-voltage lines, they integrate optical communication and grounding in one system.

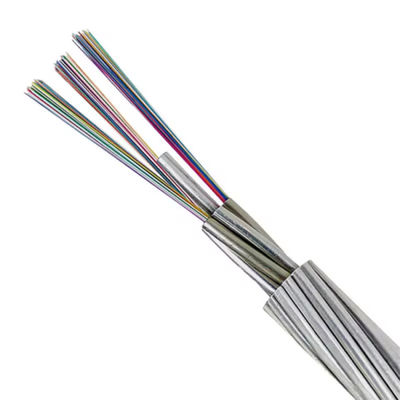

Structure
Made of two or three layers of aluminum-clad steel or aluminum alloy wires, OPGW is designed for the mechanical and structural demands of transmission lines.
Fiber Specifications
Fiber types: G652D, G655C, G657A1, 50/125, 62.5/125, OM3, OM4
Fiber count: up to 96 cores
Electrical & Application Range
For power lines ≤110KV and UHV systems
Suitable for new overhead transmission lines
Conducts short-circuit currents and provides lightning protection
Typical Design
Central aluminum-covered stainless steel tube ensures strong mechanical performance, excellent fiber protection, and long-term reliability.
OPGW with PBT Aluminum Tube
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-113(87.9;176.9) | 48 | 14.8 | 600 | 87.9 | 176.9 |
| OPGW-70(81; 41) | 24 | 12 | 500 | 81 | 41 |
| OPGW-66(79;36) | 36 | 11.8 | 484 | 79 | 36 |
| OPGW-77(72;36) | 36 | 12.7 | 503 | 72 | 67 |
OPGW Typical Designs of Stranded Stainless Steel Tube
Typical design for Double Layer:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] | 24 | 12.6 | 381 | 55.4 | 62.9 |
| OPGW-110[90.0;86.9] | 24 | 14 | 600 | 90 | 86.9 |
| OPGW-104[64.6;85.6] | 28 | 13.6 | 441 | 64.6 | 85.6 |
| OPGW-127[79.0;129.5] | 36 | 15 | 537 | 79 | 129.5 |
| OPGW-137[85.0;148.5] | 36 | 15.6 | 575 | 85 | 148.5 |
| OPGW-145[98.6;162.3] | 48 | 16 | 719 | 98.6 | 162.3 |
Typical design for Three Layer:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] | 28 | 20.15 | 1696 | 343 | 191.4 |
| OPGW-254[116.5;554.6] | 36 | 21 | 889 | 116.5 | 554.6 |
| OPGW-347[366.9;687.7] | 48 | 24.7 | 2157 | 366.9 | 687.7 |
| OPGW-282[358.7;372.1] | 96 | 22.5 | 1938 | 358.7 | 372.1 |
OPGW Typical Designs of Central AL-covered Stainless Steel Tube
Typical Design for Single Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) | 24 | 11.9 | 504 | 82.3 | 46.8 |
| OPGW-70(54.0;8.4) | 24 | 11 | 432 | 70.1 | 33.9 |
| OPGW-80(84.6;46.7) | 48 | 12.1 | 514 | 84.6 | 46.7 |
Typical Design for Double Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) | 36 | 15.9 | 617 | 87.9 | 176.9 |
OPGW Typical Designs of Central Stainless Steel Loose Tube
Typical design for Single Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
| OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
| OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
| OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
| OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 |
| OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
| OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
| OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
| OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |
Typical design for Double Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127(141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127(77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |
1. Are you a trading company or manufacturer?
We are a professional fiber optic cable manufacturer with over 10 years of experience, based in Guangzhou. Welcome to visit our factory.
2. How do you ensure product quality?
All fibers are strictly tested before delivery. Free samples are available for quality inspection after price confirmation.
3. Do you accept small orders?
Yes. Trial and small-volume orders are welcome to build long-term cooperation.
4. What is the delivery time?
Normally 3–7 working days, depending on quantity. Production and shipping start once payment is confirmed.
5. Do you offer OEM service?
Yes. OEM customization and logo printing are available according to your design requirements.
