담당자 : JQ CABLE
전화 번호 : +8618122383351
왓츠앱 : +8618122383351
| 최소 주문 수량 : | 1000m | 포장 세부 사항 : | 나무 드럼 |
|---|---|---|---|
| 배달 시간 : | 2-4 일 | 지불 조건 : | Western Union, Moneygram, T/T, L/C. |
| 공급 능력 : | 2 일 당 100km |
| 원래 장소: | 중국 | 브랜드 이름: | Jiqian/Customize/ OEM |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE-EMC FCC SDOC | 모델 번호: | GYXTW-4/6/8/12B1 |
|
상세 정보 |
|||
| 섬유 종류: | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 | OEM: | 사용 가능 |
|---|---|---|---|
| 어플리케이션: | 항공, 오버 헤드/ 직접 매장 | 지휘자 수: | 24 코어 48 코어 72core |
| 구조: | 루즈 튜브는 좌초했습니다 | 작동 온도: | -40 ~ +60 c |
| 섬유 브랜드: | YOFC/Fiberhome/Fujikura/Corning | 외피 재료: | PE/MDPE/HDPE 외부 피복 |
| 강조하다: | aerial armored fiber optic cable,outdoor single mode fiber optic cable,GYXTW fiber optic cable 24 core |
||
제품 설명

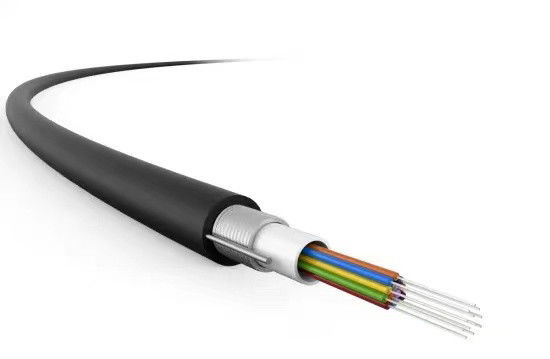

2 4 6 8 16 24 Core GYXTW Aerial Armored Fiber Optic Cable 1km Outdoor Price

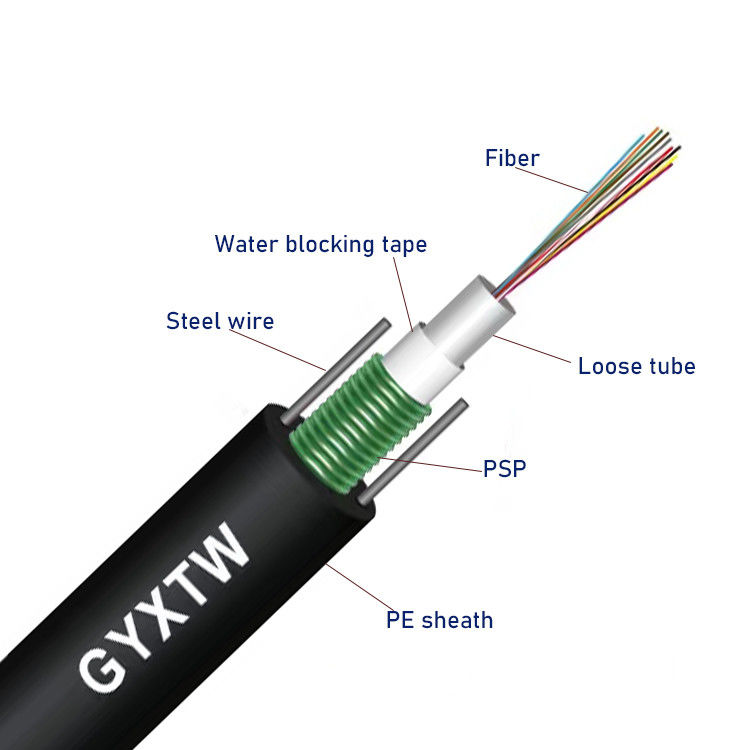

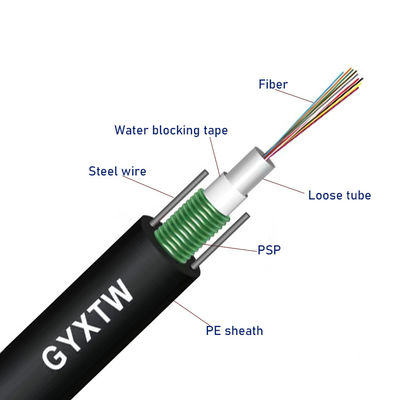

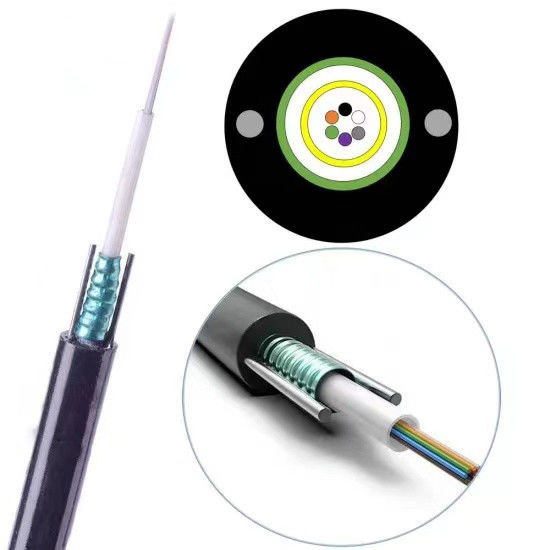

The GYXTW fiber optic cable features 250µm fibers in a gel-filled loose tube, reinforced with a PSP steel tape layer and water-blocking elements for reliable moisture protection. Two parallel steel wires provide high tensile strength, and the PE outer sheath ensures durability for outdoor aerial or duct installations. Compact, armored, and built for long-distance communication.
Product Characteristics :
• High-strength, hydrolysis-resistant loose tube with excellent mechanical and temperature performance
• Special gel filling for reliable fiber protection
• Good lateral pressure resistance and flexible structure
• PSP steel tape enhances moisture and water-blocking performance
• Dual parallel steel wires ensure strong tensile strength
• Small diameter, lightweight design for easy aerial or duct installation
Optical Fibre Performance:
| Type | Attenuation(+20℃) | Bandwidth | Numerical aperture | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | ||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
Technical Performance
| Model |
Fiber count |
Tube count |
Filling rope count |
Weight (kg/km) |
Tension Long/Short term |
| GYXS/GYXTW-2~12Xn | 2~12 | 82 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-14~24Xn | 14~24 | 127 | |||
| GYXS/GYXTW-2~12Xn | 2~12 | 124 | 1000/3000 | ||
| GYXS/GYXTW-14~24Xn | 14~24 | 147 |
Environmental Characteristics:
• Transport/storage temperature: -40℃ to +70℃
Application
• Outdoor Duct, overhead
FAQ (Simplified)
Are you a manufacturer?
Yes, we are a factory in Guangzhou, China. Welcome to visit.
Minimum order quantity?
1 km. Trial orders are supported.
Can I get a sample?
Yes, free samples are available; you only cover the freight.
Payment methods?
L/C, T/T, Western Union, PayPal.
Delivery time?
Typically 3–7 working days, depending on quantity.
Do you offer custom products or logo?
Yes, OEM & ODM are available. Contact us anytime.
