GYXTW fiber optic cable is a high-performance single-mode G652D armored cable widely used for aerial and duct applications. Known for its long-distance signal stability and reliability, it is a trusted choice in telecommunication networks and urban fiber deployments. Its dual steel wire strength member design provides excellent tensile strength, ensuring durability in outdoor environments.
Water-Blocking Layer: Protects fibers with excellent impermeability for outdoor installations.
Armored Protection: Steel tape bonded with PE sheath offers superior tension resistance and mechanical strength.
Central Loose Tube Design: Minimizes stress on optical fibers, ensuring stable transmission.
Compact and Lightweight: Small outer diameter simplifies installation and reduces construction costs.
Stable Fiber Excess Length: Maintains performance consistency over time.
Low Attenuation & Minimal Dispersion: Additional attenuation after cabling is nearly zero; dispersion remains stable.
Environmental Adaptability: Suitable for diverse climates and harsh outdoor conditions.
Aerial and Duct Installations: Ideal for connecting communication bureaus and backbone networks.
Metropolitan Networks: Supports high-density urban network deployment.
Access Networks: Reliable for FTTH and local access network projects.
Long-Distance Transmission: Excellent for inter-city or inter-office communication lines.
High mechanical strength with dual steel wire reinforcement.
Durable for outdoor, high-stress, and long-distance applications.
Complies with international standards for fiber optic cables.
Easy installation and maintenance, reducing overall project costs.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm/0.7mm |
| Material | Steel | |
| Outer Jacket | Dimension | 6.0~9.0mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 8.0 | 78 | 600/1500 | 300/1000 | 10D/20D |
| 14~24 | 9.0 | 90 | 600/1500 | 300/1000 | 10D/20D |

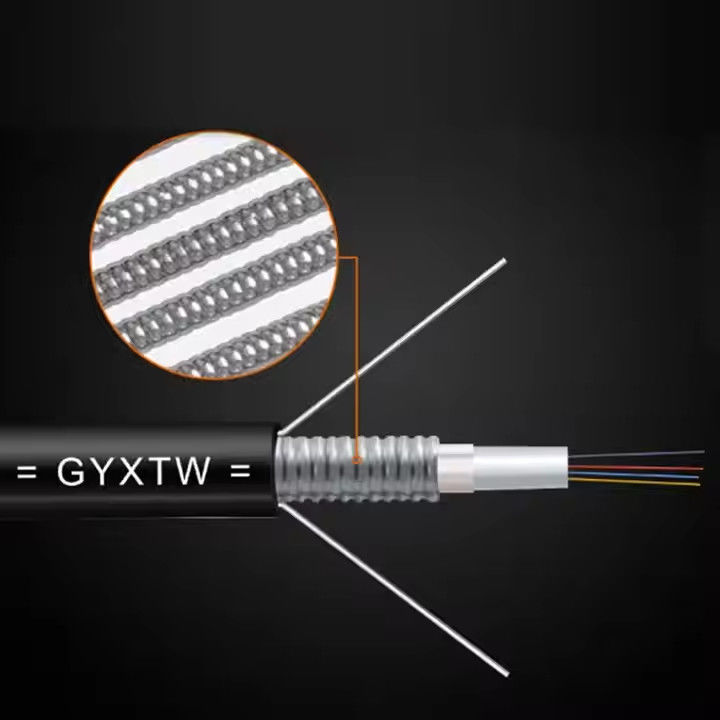

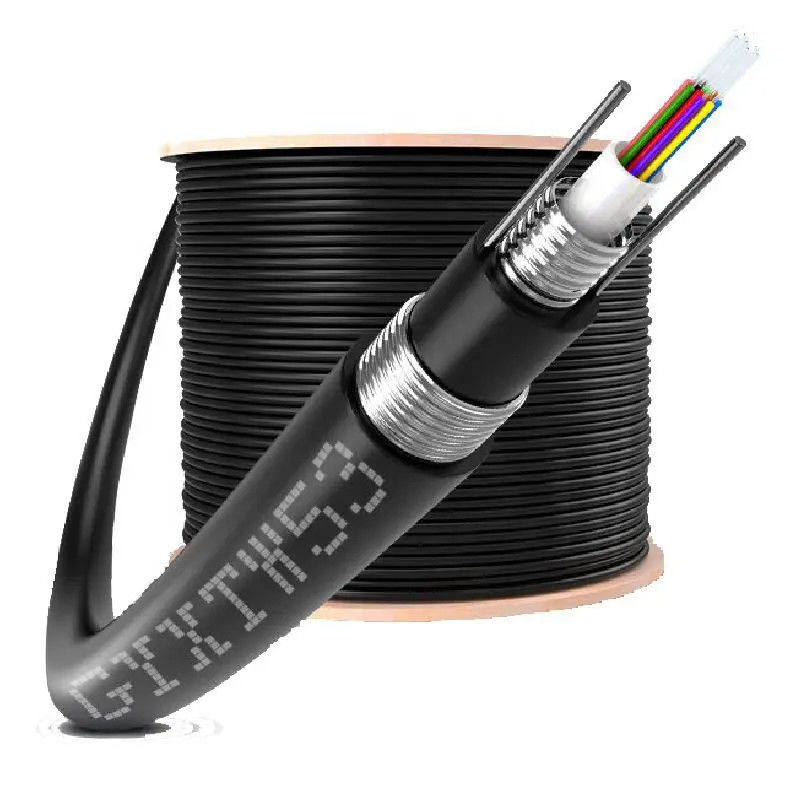

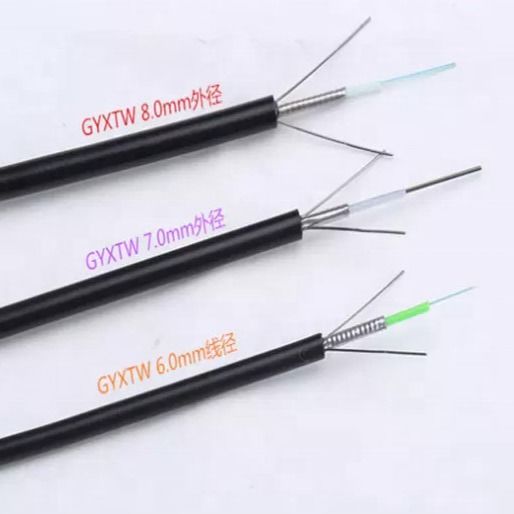

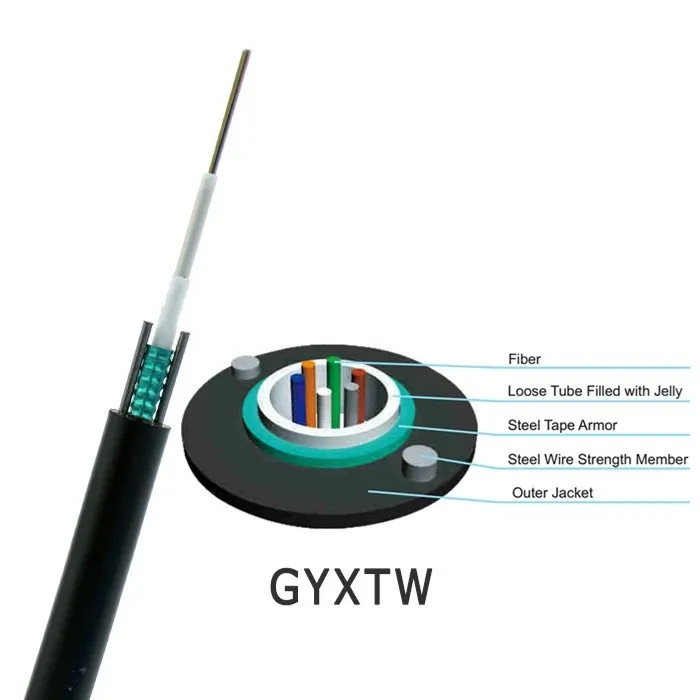

details pictures showes
Q1: Are you a trading company or manufacturer?
A: We are a direct manufacturer with over 10 years of experience in research, development, and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China, and visitors are always welcome.
Q2: How do you ensure product quality?
A: Each fiber optic cable is fully tested before shipment to guarantee high performance. After price confirmation, we can provide free samples for quality inspection, ensuring complete customer satisfaction.
Q3: Can you accept small orders?
A: Yes, we accept small orders. We support new projects for customers, understanding that business often starts from small trials.
Q4: What is the typical delivery time?
A: Delivery usually takes 3–7 working days, depending on the order quantity. Rest assured, we will arrange shipment as quickly as possible after receiving your payment.
Q5: Do you offer OEM/ODM services?
A: Yes, we welcome OEM services. Your logo can be printed on products or packaging, and custom designs are fully supported to meet your specific project requirements.
