6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service

최소 주문 수량 : 1km 포장 세부 사항 : 2KM/Wooden 드럼
배달 시간 : 5-8 일 지불 조건 : L/C, Western Union, T/T
공급 능력 : 한달에 4500KM
원래 장소: 광저우 중국 브랜드 이름: JQ/OEM/Customize
인증: ISO9001 ROHS CE-EMC FCC SDOC 모델 번호: gjfjv

상세 정보

이름: 실내 광섬유 케이블 외피: PVC, PE, LSZH
케이블 유형: 아라미드 원사를 갖는 단단한 완충 섬유 원래 장소: 광저우 중국
강도 소재: 아라미드 원사 색상: 오렌지, 노란색, 파란색
핵심: 2-48 파이버 섬유 유형: 다중 모드/ 이중
포장: 나무 드럼 신청: 데이터 센터, LAN 및 기타 고속 응용 프로그램의 실내 케이블
재료: PVC/LSZH/TPU/Nylon 설치 온도: -5°C ~ +50°C
보증: 3 년 길이: 사용자 정의 길이
외부 재킷 재료: PVC 또는 LSZH 굽힘 반경: 케이블 직경의 10배
장갑: 없음 실외 또는 실내: 실내 광섬유 케이블
커넥터: MPO, MTP 제품명: 실내 광섬유 케이블
모델: ftth 4 코어 드롭 케이블 섬유 유형: 단일 모드
케이블 색상: 노란색/오렌지 관리인들: ≥10
강조하다:

LSZH flame retardant indoor fiber optic cable

,

multi-mode indoor fiber optic cable

,

ODM fiber optic cable with warranty

제품 설명

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV

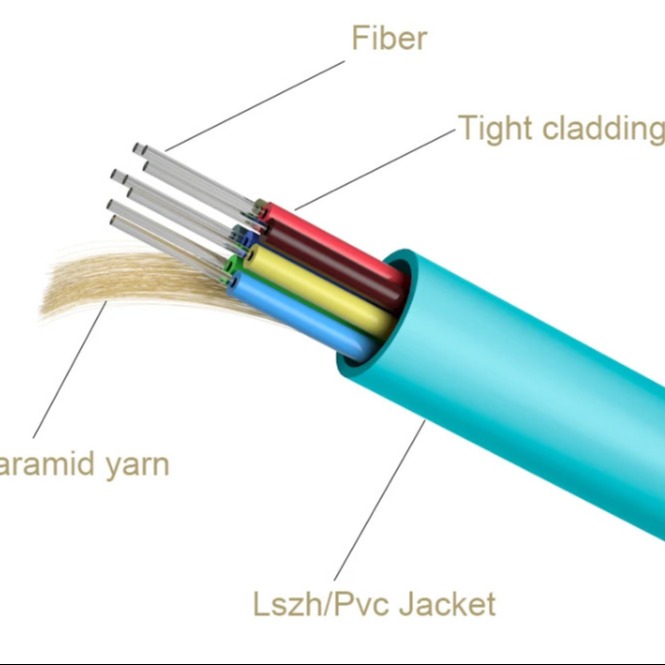

Multi-purpose distribution cable uses multiple 900μm flame-retardant tight-buffered fibers as the optical communication medium. Each fiber is reinforced with a layer of aramid yarn for added strength, then completed with a durable PVC or LSZH (Low Smoke, Zero Halogen, Flame-Retardant) jacket. The tight-buffered fiber is manufactured by sheathing the fiber with high-quality buffer material, available in diameters of Φ600μm or Φ900μm.



Carefully selected premium fibers, precision production equipment, and accurately designed tools ensure excellent transmission performance, low attenuation, and high reliability. This indoor cable is lightweight, flexible, and easy to install, making it ideal for building backbone networks, data centers, and FTTH (Fiber-to-the-Home) applications.





6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 0



Characteristics

  • Excellent mechanical and environmental performance

  • Flame-retardant properties comply with relevant industry standards

  • Jacketed design meets mechanical strength requirements

  • Soft, flexible, easy to install and splice, supporting high-capacity data transmission

  • Designed to meet diverse market and customer needs



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Cable diameter

  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm



Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count
Outside
Diameter
Tight
buffer
Diameter

Weight



Minimum
allowable Tensile
Strength(N)

    Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60



Application

  1. Suitable for pigtails and patch cords

  2. Ideal for equipment interconnection lines

  3. Can be used in indoor and outdoor cabling, especially as distribution cables

  4. Perfect for optical connections in communication rooms and optical distribution frames

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 1



Product Detail

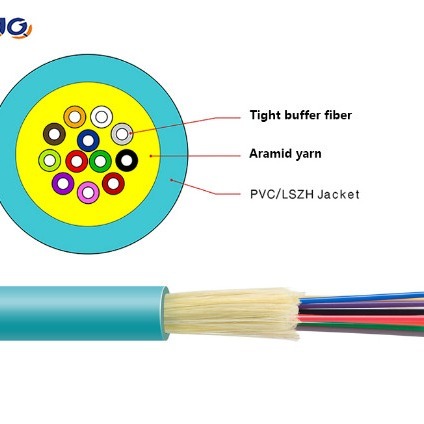

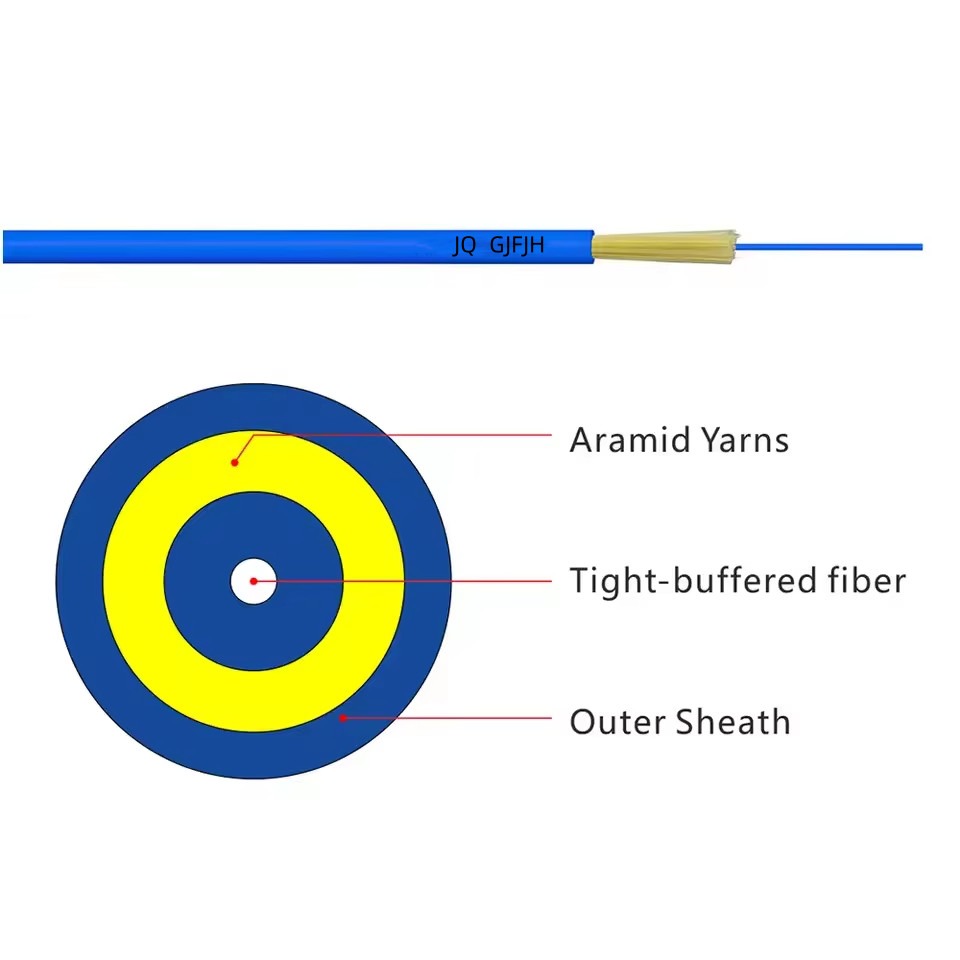

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 2

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 3

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 4





Packing

2km or customized length export wooden drum

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 5
