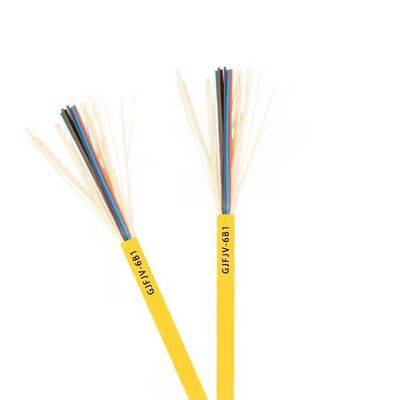

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi Purpose Distribution Fiber Optic Cable Product Features

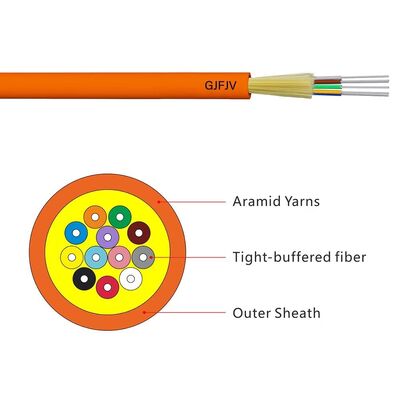

600µm or 900µm tight buffer fibers for stable indoor transmission
Aramid yarn strength member for enhanced tensile performance
PVC or LSZH flame retardant jacket for safe indoor use
Flexible structure for easy installation splicing and maintenance
High bandwidth and reliable data transmission
Application Scenarios
Pigtails and patch cord production
Equipment interconnection lines
Indoor and limited outdoor distribution cabling
Optical communication rooms and distribution frames
Data center and enterprise network systems
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHz-km |
2200MHz-km |
|
|
@1300nm |
|
21000MHz-km |
2600MHz-km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV | ||||||||||
| Cable Count |
Outside Diameter |
Tight buffer Diameter |
Weight
|
Minimum allowable Tensile Strength(N) |
Minimum allowable (N/100mm) |
Minimum Bending |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |

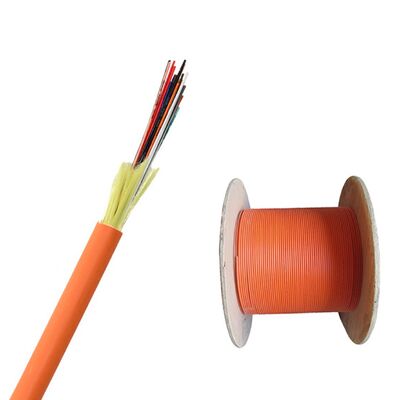

Packing
2km or customized length export wooden drum
FAQ – Fiber Optic Cable
1. Why Choose Us?
Professional fiber optic cable manufacturer with low MOQ and free samples. We offer stable quality, competitive prices and fast response service.
2. Do You Provide OEM or ODM Service?
Yes, OEM and ODM services are available to meet customized requirements.
3. Can You Print Our Logo?
Yes, we support logo printing on products and packaging boxes.
4. What Shipping Methods Are Available?
Sea freight, air freight and land transportation are all supported.
5. What Payment Methods Do You Accept?
L/C, T/T, Western Union and Alipay are accepted.
6. What Is Your Delivery Time?
Normally 3 to 7 working days depending on order quantity. Shipment will be arranged promptly after payment.
