| 최소 주문 수량 : | 1km | 포장 세부 사항 : | 2KM/Wooden 드럼 |
|---|---|---|---|
| 배달 시간 : | 5-8 근무일 | 지불 조건 : | 신용장, 서부 동맹, T/T |
| 공급 능력 : | 한달에 4500KM |
| 원래 장소: | 광저우 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE-EMC FCC SDOC | 모델 번호: | gjfjv |
|
상세 정보 |
|||
| 이름: | 실내 광섬유 케이블 | 외피: | PVC, PE, LSZH |
|---|---|---|---|
| 케이블 유형: | 아라미드 원사를 갖는 단단한 완충 섬유 | 원래 장소: | 광저우 중국 |
| 강도 소재: | 아라미드 원사 | 색상: | 오렌지, 노란색, 파란색 |
| 핵심: | 2-48 파이버 | 섬유 종류: | 멀티 모드 |
| 강조하다: | 6 core indoor fiber optic cable,24 core GJFJV optical cable,high performance multi mode fiber |
||
제품 설명
ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi-purpose Distribution Fiber Optic Cable
Uses 600µm or 900µm flame-retardant tight buffer fibers as the optical medium, wrapped with aramid yarn for strength, and completed with PVC or LSZH jacket. High-quality fibers and precise manufacturing ensure excellent performance for indoor optical communication.
Characteristics
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHz-km |
2200MHz-km |
|
|
@1300nm |
|
21000MHz-km |
2600MHz-km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV | ||||||||||
| Cable Count |
Outside Diameter |
Tight buffer Diameter |
Weight
|
Minimum allowable Tensile Strength(N) |
Minimum allowable (N/100mm) |
Minimum Bending |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
Application
1.Used in pigtails and patch cords
2.Used as interconnect lines of equipments.
3.Used in indoor and outdoor cabling, especially used as distribution cable
4.Used in optical connections in optical communication rooms and optical distribution frames
Product Detail

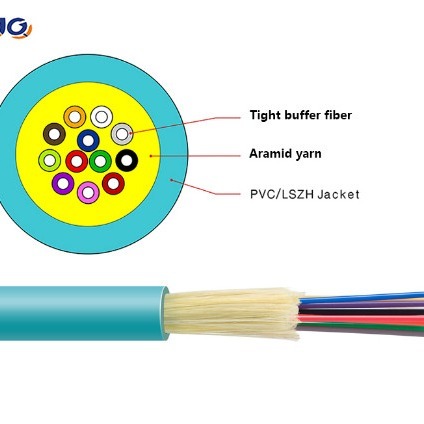

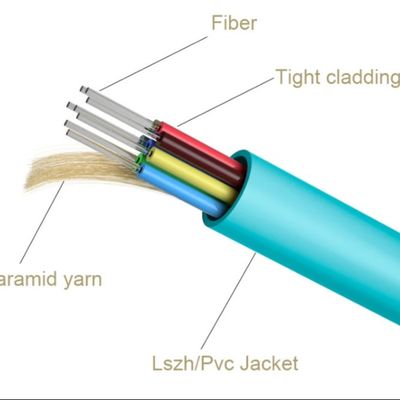

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Packing

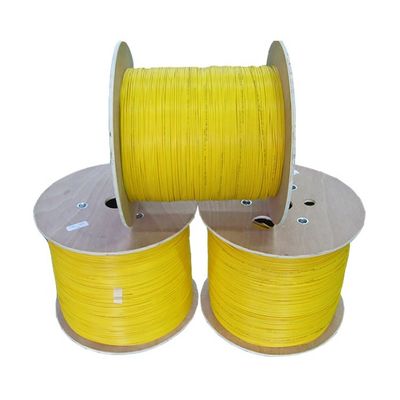

2km or customized length export wooden drum
