ASU Fiber Optic Cable Unitube Single Mode Self Supporting Outdoor Aerial Optical Cable for Long Span Communication

1km
MOQ
Inquiry for price
가격
ASU Fiber Optic Cable Unitube Single Mode Self Supporting Outdoor Aerial Optical Cable for Long Span Communication
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
섬유수: 2-12 코어
재킷: PE, MDPE, LSZH, PVC, HDPE
OEM: 예
섬유 브랜드: YOFC/Fiberhome/Fujikura/Corning
생산 이름: 무장 섬유 Cale Gyfty
파이버 모드: 단일 모드 및 다중 모드
강도 멤버 재료: FRP/아라미드 원사
케이블: 실외 광섬유 케이블
강조하다:

outdoor fiber optic cable with warranty

,

single mode aerial optical cable

,

self supporting fiber optic cable
기본 정보
원래 장소: 중국 광둥성
브랜드 이름: jiqian/haiso/Customize/ ODM
인증: ISO9001 ROHS CE-EMC FCC SDOC
모델 번호: ASU 케이블/GYFFY
결제 및 배송 조건
포장 세부 사항: 나무 드럼 또는 맞춤형
배달 시간: 3-5 일, 수량에 따라 다릅니다
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력: 월 60000km/월
제품 설명





ASU Mini ADSS Aerial Fiber Optic Cable 6–12 Core Single Mode Long Span Outdoor Cable



Features

  • Lightweight unitube structure for easy aerial installation
  • Self-supporting design without additional messenger wire
  • High tensile strength suitable for 80–120m span deployment
  • All dielectric construction resistant to lightning and interference
  • UV and weather resistant sheath for long outdoor service life



Applications

  • FTTH and FTTx broadband network deployment
  • Rural and suburban aerial communication lines
  • Building to building fiber optic connections
  • Telecommunication and metropolitan area networks
  • Outdoor long span fiber optic installations
Item Details
Fiber Count 6 / 12 Cores
Fiber Type Single Mode G652D or G657A1
Cable Structure Unitube Self Supporting
Strength Member Aramid Yarn
Outer Sheath UV Resistant PE
Span Length 80–120 m
Cable Diameter Approx. 6–8 mm
Tensile Strength ≥ 1500 N
Crush Resistance ≥ 1000 N / 100 mm
Operating Temperature −40°C to +70°C
Installation Method Aerial Self Supporting
Application FTTH / FTTx / Telecom Networks

ASU Fiber Optic Cable Unitube Single Mode Self Supporting Outdoor Aerial Optical Cable for Long Span Communication 0

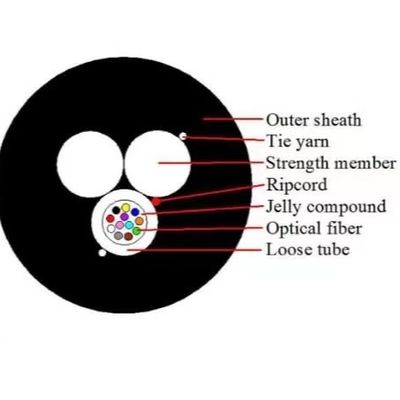

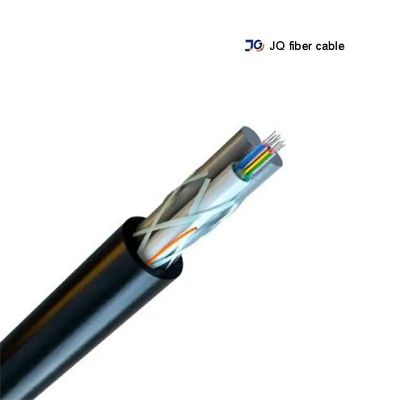

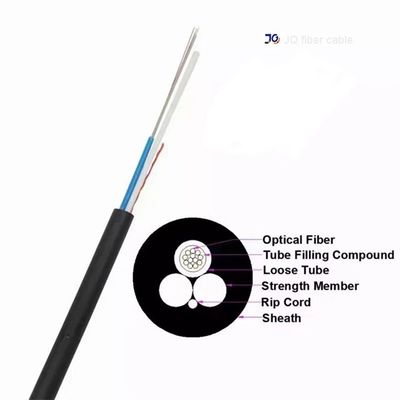

Structure

  • Fiber Type: 2–12 core single-mode fibers, compliant with G652D / G657A1 / G657A2

  • Cable Design: Central loose tube filled with water-blocking gel for moisture protection

  • Fiber Brand: Premium YOFC fibers for stable optical performance

  • Armor: All-dielectric mini ADSS construction, non-armored for lightweight installation

  • Strength Member: Dual FRP rods to enhance tensile strength and span capability

  • Outer Sheath: Black UV- and moisture-resistant PE jacket for reliable outdoor use

ASU Fiber Optic Cable Unitube Single Mode Self Supporting Outdoor Aerial Optical Cable for Long Span Communication 1

ASU Fiber Optic Cable Unitube Single Mode Self Supporting Outdoor Aerial Optical Cable for Long Span Communication 2

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

FAQ

  1. What is ASU aerial fiber optic cable?
    ASU cable is a lightweight self-supporting aerial fiber optic cable designed for overhead telecom installations.
  2. What span length does this cable support?
    It supports aerial spans of approximately 80–120 meters.
  3. What fiber types are available?
    It typically uses single-mode fibers such as G652D or G657A1.
  4. Is the cable suitable for outdoor environments?
    Yes, the UV-resistant outer sheath provides protection against weather and moisture.
  5. What applications is it commonly used for?
    It is widely used in FTTH, FTTx networks, and rural aerial telecom deployments.
