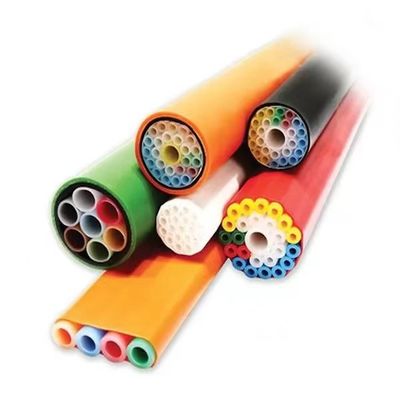

GCYFY Air Blown Micro Fiber Optic Cable 24 48 96 Core for FTTH Micro Duct Network
Features
Applications
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
• Transport/storage temperature: -40℃ to +70℃
Cable Parameters
|
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
| 12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Delivery Length
• Standard length: 4,000m; other lengths are also available.
Welcome to your Inquiry Welcome to visit our factory!
FAQ – GCYFY Air Blown Micro Fiber Optic Cable
Q1: What is GCYFY fiber optic cable used for?
A: It is mainly used for FTTH, access networks, and micro-duct air blown installations.
Q2: What fiber counts are available?
A: Common options include 24, 48, and 96 cores, with customization available.
Q3: How is the cable installed?
A: It is installed by air blowing into pre-installed micro ducts.
Q4: Is the cable suitable for long-distance networks?
A: Yes, it is designed for backbone, metropolitan, and access network deployment.
Q5: What are the advantages of air blown installation?
A: It improves duct utilization, reduces construction costs, and allows easy network expansion.
