GYTC8S Aerial Fiber Optic Cable Steel Messenger Armored Outdoor Cable
Product Introduction:

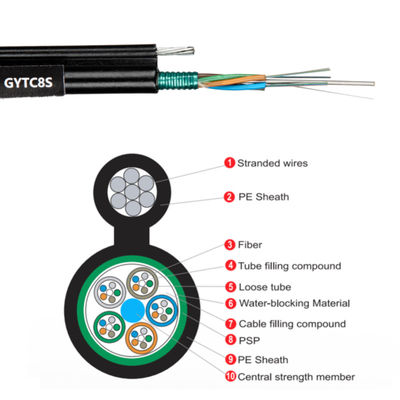

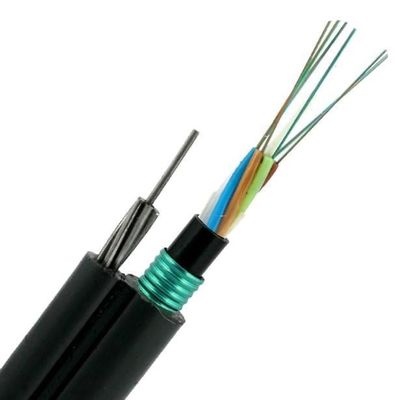

GYTC8S is a self-supporting aerial fiber optic cable with stranded loose tube structure, designed for outdoor communication with strong mechanical and environmental performance.
Key Features:
Steel messenger wire for self-supporting installation
Corrugated steel tape for enhanced crush resistance
PE outer sheath for weather protection
Supports 1–144 fiber cores
High tensile strength for long-span use
Applications:
Outdoor aerial installations
Long-distance communication lines
LAN and data networks
Subscriber access systems
CATV and telecom networks
Product Parameters:
| Model | fiber cores | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static /Dynamic mm |
| GYTC8S | 12-288 | 7-20mm | 70-300 | 3500/7000N | 300/1000 | 15D/30D |
Specification:
| item | value |
| Model Number | GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | Multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | Steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Certification:
GYTC8S Fiber Optic Cable FAQ
Q1: What is GYTC8S cable used for?
A: It is used for outdoor aerial installations in telecom and data transmission networks.
Q2: What makes GYTC8S self-supporting?
A: It has a built-in steel messenger wire for aerial installation without extra support.
Q3: How many fiber cores does it support?
A: It supports from 1 to 144 fiber cores.
Q4: Is GYTC8S suitable for harsh environments?
A: Yes, it has steel tape armor and PE sheath for strong protection.
Q5: Where is GYTC8S commonly applied?
A: It is used in long-distance communication, LAN, CATV, and access networks.
