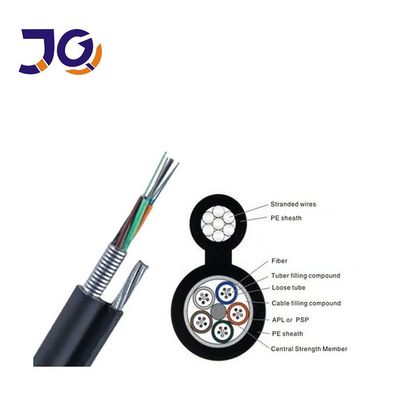

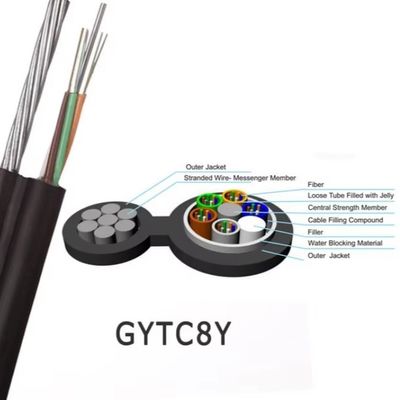

Product Description
250µm fibers in high-modulus loose tubes, filled with water-resistant compound
Central steel wire as metallic strength member
Loose tubes and fillers stranded into compact circular core
Corrugated steel tape armor with full filling for water blocking
Stranded steel messenger integrated, PE sheath forming Figure-8 structure
Features
High tensile steel messenger, self-supporting, low installation cost
Excellent mechanical and temperature performance
Hydrolysis-resistant high-strength loose tube
Special filling compound for fiber protection
Full water-blocking design:
Central steel wire
Loose tube filling
100% core filling
Corrugated steel tape moisture barrier
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Model | G.652D | ||
| Design(Strength Member+Tube&Filler) | 1+5 | ||
| CentralStrengthMember | Material | Steel Wire | |
| Diameter(+0.05)mm | 1.5 | ||
| LooseTube | Material | PBT | |
| Diameter(+0.06)mm | 2 | ||
| Thickness(+0.03)mm | 0.32 | ||
| TheMax.CoreNO./Tube | 12 | ||
| Filler Rope | Material | LDPE | |
| Color | White | ||
| Diameter(+0.06)mm | 2.1 | ||
| Strand Strength Member | Material | Galvanized Steel | |
| Type | φ0.9x3 | ||
| Armor layer | Material | Steel Tape | |
| OuterSheath① | Material | MDPE | |
| Thickness(+0.03)mm | 1. | ||
| OuterSheath① | Material | MDPE | |
| Thickness(40.03)mm | 1.8 | ||
| CableDiameter(土0.2)mm | 9.5*17.8(nominal) | ||
| CableWeight(+10)kg/km | 160(nominal) | ||
| Min.installation/N | 1500 | ||
| Attenuation | 1310nm | 0.35dB/KM | |
| 1550nm | 0.21dB/KM | ||
| Min.bendingradius | Without Tension | 10.0*Cableφ | |
| Under Maximum Tension | 20.0xCableφ | ||

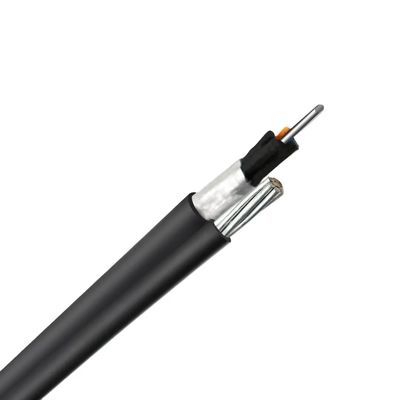

Picture Show
FAQ
Are you a real manufacturer?
Yes, we are a direct manufacturer with 10 years’ experience.
Do you accept small orders?
Yes. Small orders are accepted to support new projects.
What is the warranty period?
25 years for fiber optic cables.
What is the delivery time?
Usually 3–5 working days.
What is your annual production capacity?
Outdoor/Indoor Fiber Cable: 6,000,000 km/year
FTTH/FTTX/FTTA Cable: 6,000,000 km/year
Patch Cord & Pigtail: 12,400,000 pcs/year
Do you support OEM & ODM?
Yes. OEM & ODM available, drawings accepted.
