| 최소 주문 수량 : | 1km | 포장 세부 사항 : | 나무 드럼 |
|---|---|---|---|
| 배달 시간 : | 5-8 근무일 | 지불 조건 : | L/C, T/T, 웨스턴 유니온 |
| 공급 능력 : | 일 당 30 킬로미터 |
| 원래 장소: | 광저우, 중국 | 브랜드 이름: | JQ/OEM |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE FCC | 모델 번호: | GYFTY |
|
상세 정보 |
|||
| 섬유 수: | 4-288 코어 | 섬유 종류: | 단일 모드 G652D |
|---|---|---|---|
| 재킷: | PE, MDPE, HDPE | 색상: | 검은색 |
| 제품명: | 실외 SZ 광섬유 케이블 | 길이: | 2KM/Wooden 드럼 |
| 구조: | 좌초 된 느슨한 튜브 | 설치: | 공중 덕트 |
| 강조하다: | 72 core GYFTY fiber optic cable,FRP non metallic outdoor fiber cable,waterproof HDPE jacket fiber optic cable |
||
제품 설명

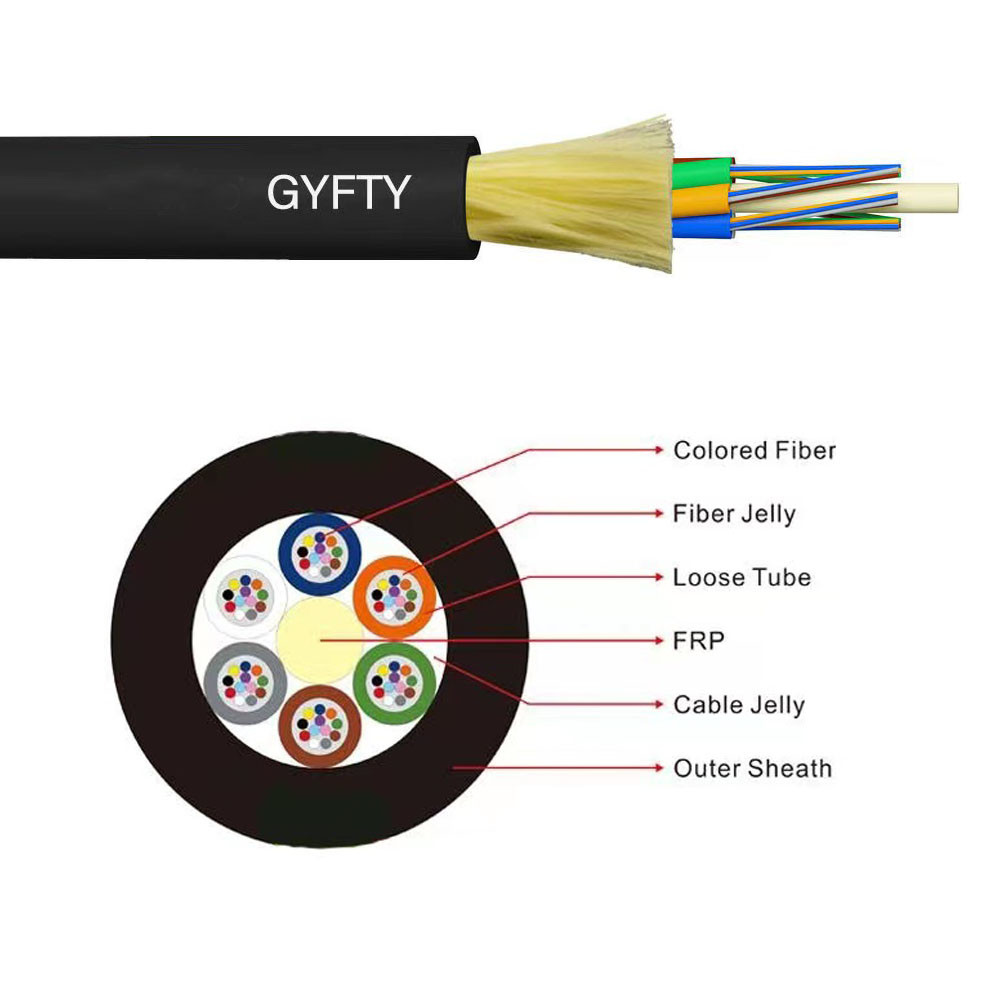

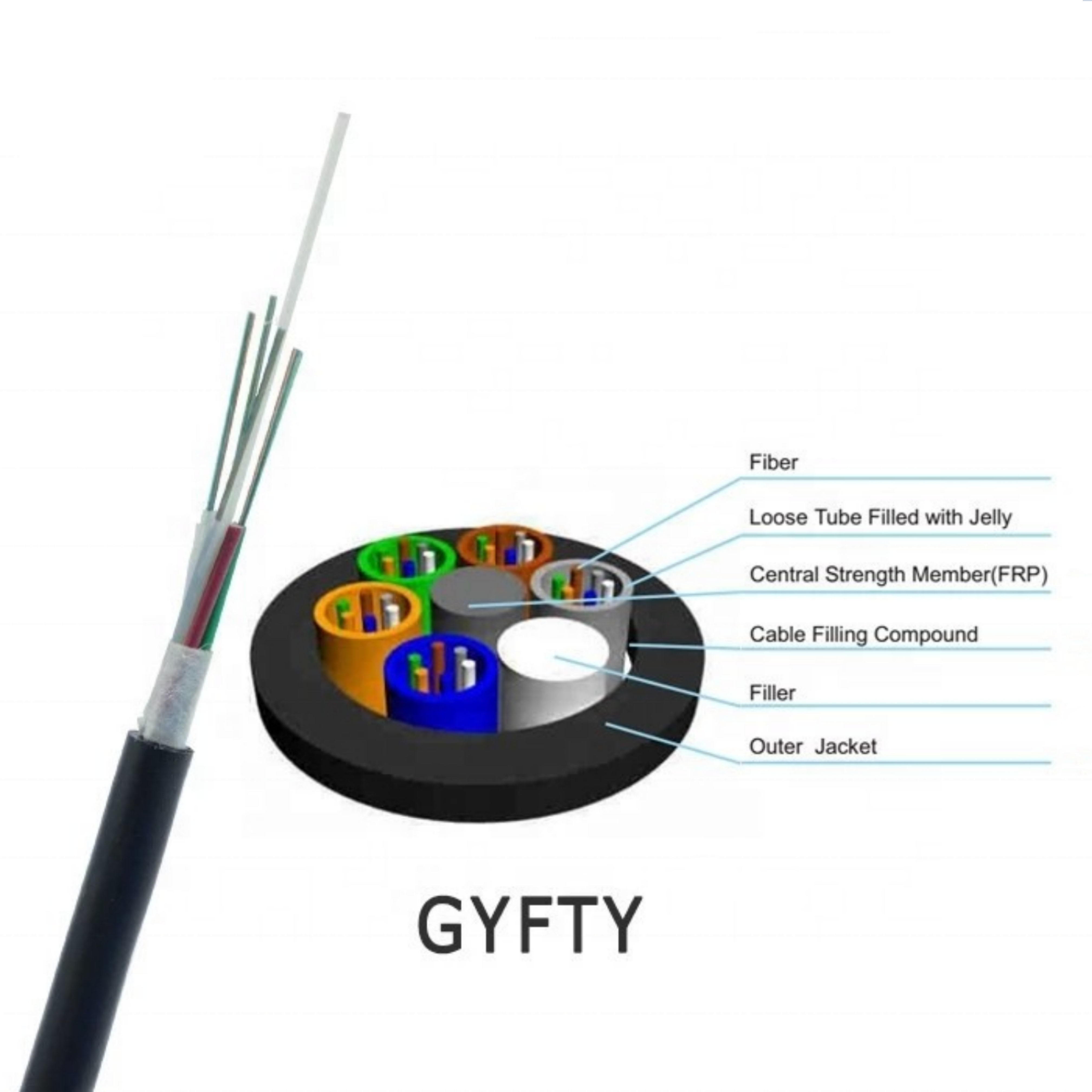

GYFTY fiber optic cable uses 250µm fibers housed in high-modulus loose tubes filled with water-blocking gel. A central FRP rod provides non-metallic strength, with tubes and fillers stranded into a compact dielectric core. The core is protected with jelly and wrapped with water-blocking materials to ensure long-term moisture resistance. A PE outer jacket completes the lightweight, durable, waterproof structure.
Lightweight design with small diameter for easy installation
Strong mechanical and temperature performance
Low attenuation and stable transmission
Gel-filled loose tubes for enhanced fiber protection
Non-metal FRP strength member for excellent anti-electromagnetic interference
Effective water-blocking system for reliable outdoor waterproof performance
Durable PE jacket suitable for harsh environments
Aerial and duct installation
Outdoor distribution networks
Access network and local communication
Areas with electromagnetic interference
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHzkm |
2200MHz:km |
|
|
@1300nm |
|
21000MHz-km |
2600MHzkm |
|
NumericalAperture |
|
|
0.200+0.015NA |
0.275+0.015NA |
|
CableCut- offWavelengthλcc |
|
≤1260nm |
|
|
Cable Parameters
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0±0.2 | 65 |
| 24 | 1+5 | 6 | 1.9±0.3 | 1.4/1.4 | 1.6 | 9.2±0.2 | 68 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6 | 80 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.2/3.5 | 1.6 | 12.0 | 103 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.2/6.4 | 1.8 | 15.0 | 180 |
FAQ
1. Are you a trading company or manufacturer?
We are a direct manufacturer with 10+ years of experience in fiber optic cable production, including outdoor cables, drop cables, and patch cords. Our factory is located in Guangzhou. Welcome to visit us.
2. How is your product quality?
All fibers are tested before shipment. After confirming the price, free samples can be offered for quality checking.
3. Do you accept small orders?
Yes. Small orders are supported, especially for new projects or trial orders.
4. What is your delivery time?
Normally 3–7 working days depending on the order quantity. We will arrange shipment as soon as payment is received.
5. Do you offer OEM service?
Yes. OEM/ODM is available, including logo printing and customized designs based on your requirements.
