| 최소 주문 수량 : | 1 킬로미터 | 포장 세부 사항 : | 나무 드럼 |
|---|---|---|---|
| 배달 시간 : | 2-5 일 | 지불 조건 : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력 : | 한 달에 8000km |
| 원래 장소: | 광동, 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | CE/ISO9001/RoHS/FCC | 모델 번호: | Gyta 12core/24 코어/48 코어 |
|
상세 정보 |
|||
| 유형: | TAC 케이블 | 원래 장소: | 광동, 중국 |
|---|---|---|---|
| 섬유 유형: | G652d 단일 모드 또는 요청으로 | 섬유 수: | 2-144 코어 |
| 길이: | 사용자 정의 | 색상: | 사용자 정의 |
| 튜브: | 다중 느슨한 튜브 | 중앙 강도 멤버: | 스틸 와이어 |
| 장갑: | 알루미늄 테이프 | 외피: | PE/ MDPE/ HDPE 또는 귀하의 요청으로 |
| 패키지: | 나무 드럼/맞춤형 | 애플리케이션: | 직접 매장/ 덕트 배치 |
| OEM: | 사용 가능 | 작동 온도: | -40' C~+70' Ｃ |
| 전체 직경: | 11.4mm~13.10mm | 스팸: | 100/200/300/400/500m |
| 집 밖의: | 실외 광섬유 케이블 | 내부 재킷: | PE |
| 샘플: | 무료 | 구조: | 중앙 느슨한 튜브 |
| 외부 재킷: | HDPE | 표준 길이: | 2,000m/4000m |
| 중앙 강화 멤버: | FRP | 재킷 지름: | 12.8 |
| 서비스: | OEM & ODM | 지휘자 수: | ≥ 10 |
| 향기로운: | 알루미늄 테이프 | ||
| 강조하다: | GYTA aluminium armored fiber optic cable,144 core outdoor fiber optic cable,duct direct burial fiber optic cable |
||
제품 설명

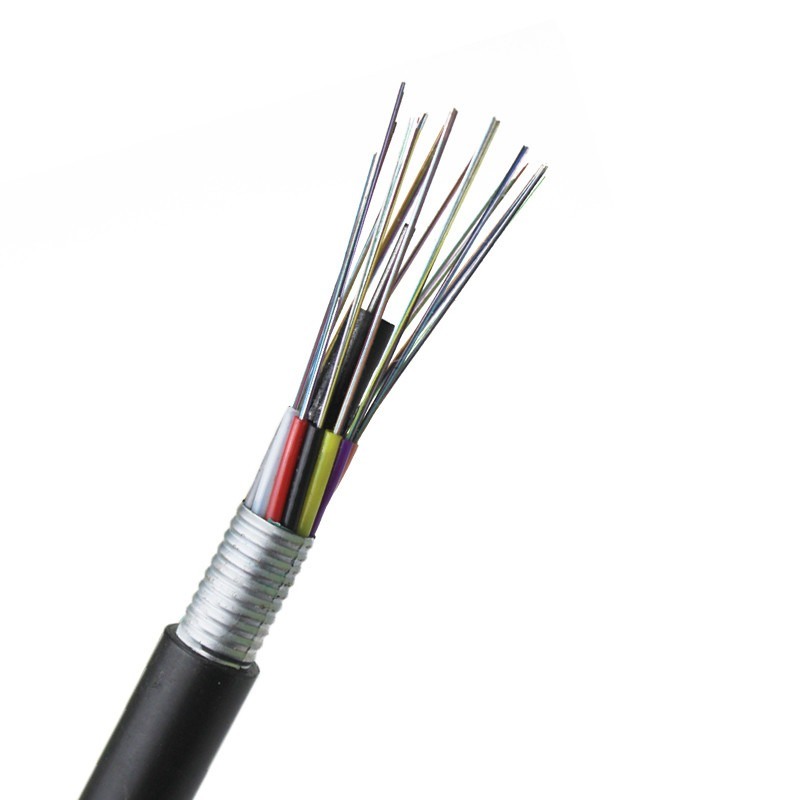

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture Resistant Design
Product Overview

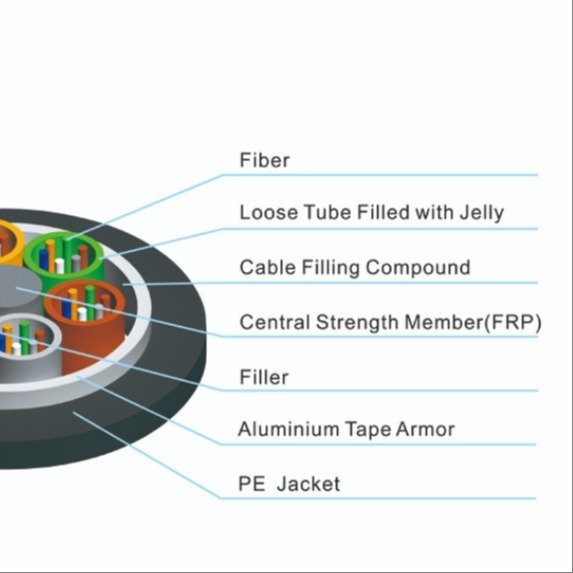

GYTA fiber optic cable uses a stranded loose tube structure around a central strength member to form a compact and stable core The core is wrapped with aluminum polyethylene laminate tightly bonded to a PE inner sheath providing strong longitudinal and radial moisture blocking Corrugated steel tape and a durable MDPE outer jacket offer additional mechanical protection making the cable ideal for outdoor environments
Why Choose GYTA
Unlike direct buried cables GYTA is designed for aerial and duct installation delivering reliable performance for long distance telecommunication networks The letter A stands for aluminum tape which offers excellent anti corrosion and moisture protection ensuring longer service life in ducts and harsh environments
Key Features
High Strength Construction – Superior tensile and crush resistance with long term durability
Central Strength Member – Phosphatized steel wire core optionally coated with PE for flexibility and corrosion protection
Water Blocking System – Tubes and interstices fully filled with water blocking gel to prevent longitudinal water penetration
Moisture Protection – Aluminum tape with bonded PE sheath creates an effective barrier against water and rust
Extended Lifespan – Stable optical transmission for long term reliable operation
Wide Applications – Perfect for telecom backbone metropolitan networks CATV and high speed data links
Specification:
| item | value |
| Model Number | GYTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |
| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |

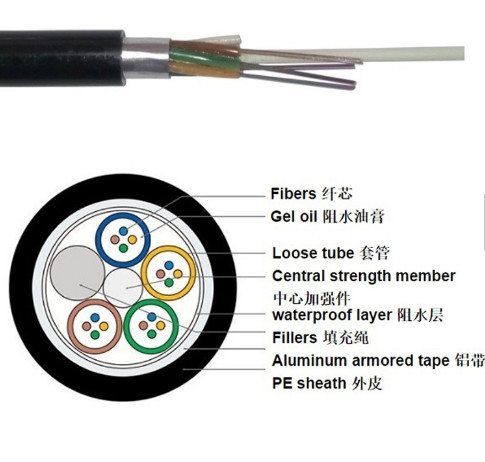

Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ
1. Who Are We
We are a professional fiber optic cable manufacturer in Guangdong China founded in 2017 Our main markets include Africa South America Western Europe the Middle East Southeast Asia and South Asia with a team of 11 to 50 skilled employees
2. How Do We Guarantee Quality
Pre production samples provided for approval before mass production
100 percent final inspection before shipment to ensure quality
3. What Products Do We Offer
Fiber Optic Cables FTTH Drop Cables Indoor and Outdoor Communication Cables and related accessories
4. What Services Are Available
Delivery Terms: FOB EXW
Payment Methods: T T L C D P D A Credit Card PayPal Western Union Cash
Currencies: USD CNY
Languages: English Chinese
5. What Is the Minimum Order Quantity
Our MOQ is 1KM and we welcome trial orders for new projects
6. Can I Get a Sample
Yes we offer free samples you just pay for express shipping
7. Do You Support OEM or ODM
Yes we provide OEM and ODM service with custom design logo and packaging options
8. What Is the Lead Time
Normally 3 to 7 working days depending on quantity and specifications
