| 최소 주문 수량 : | 1km | 포장 세부 사항 : | 나무 드럼 |
|---|---|---|---|
| 배달 시간 : | 5-8 일 | 지불 조건 : | L/C, T/T, Western Union |
| 공급 능력 : | 일 당 30 킬로미터 |
| 원래 장소: | 광저우, 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE-EMC FCC SDOC | 모델 번호: | GCYFY / GCYFTY |
|
상세 정보 |
|||
| 섬유 수: | 4-144 코어 | 섬유 유형: | 단일 모드/멀티 모드 |
|---|---|---|---|
| 재킷: | PE/PVC/LSZH/HDPE/MDPE | 색상: | 검거나 오렌지색이거나 주문 제작됩니다 |
| 제품 이름: | 공기 삽입 마이크 케이블 | 모델 번호: | GCYFY / GCYFTY |
| 길이: | 2km 또는 맞춤형 길이 | 설치: | 항공 또는 덕트 |
| 지휘자 수: | ≥ 10 | 집 밖의: | 실외 광섬유 케이블 |
| 중앙 강도 멤버: | FRP 또는 강선 | 워터 블로킹 재료: | 물 차단 테이프 또는 충전 화합물 |
| 갑옷: | 골판지 강철 테이프 갑옷 | 케이블 크기: | 8mm ~ 16mm |
| 코어: | 구매자의 요청에 따라 | 케이블 구조: | 다중 느슨한 튜브 강철 테이프 갑옷 |
| RTS: | 45-80 kn | 작동 온도: | -40 ° C ~ +70 ° C |
| OEM: | 허용 가능 | 보증: | 25 년 |
| 느슨한 튜브: | PBT | 모델: | 무장한 광섬유 케이블 |
| 재킷 재료: | PE | 섬유 모델: | 단일 모드/멀티 모드 |
| 핵심: | 12-144 코어 | 메신저 지름: | 5.0mm |
| 아웃재킷 색상: | 검은색 | 외장: | HDPE |
| 발진시간: | 20년 이상 | 느슨한 튜브 재료: | PBT |
| 구조: | 중앙 느슨한 튜브 | 내부 쉬스 재료: | PE/HDPE |
| 견본: | 무료 | 핵심 번호: | 6코어/8코어/12코어 |
| 강도 멤버: | 스틸 와이어 | 케이블 유형: | 느슨한 튜브 |
| 강조하다: | 96 core microduct fiber cable,air blown outdoor fiber optic,loose tube high speed cable |
||
제품 설명

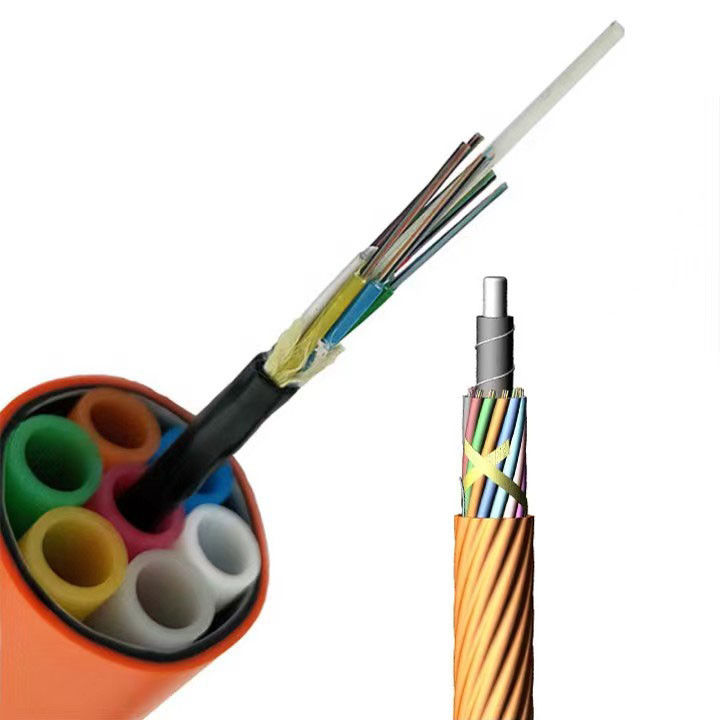

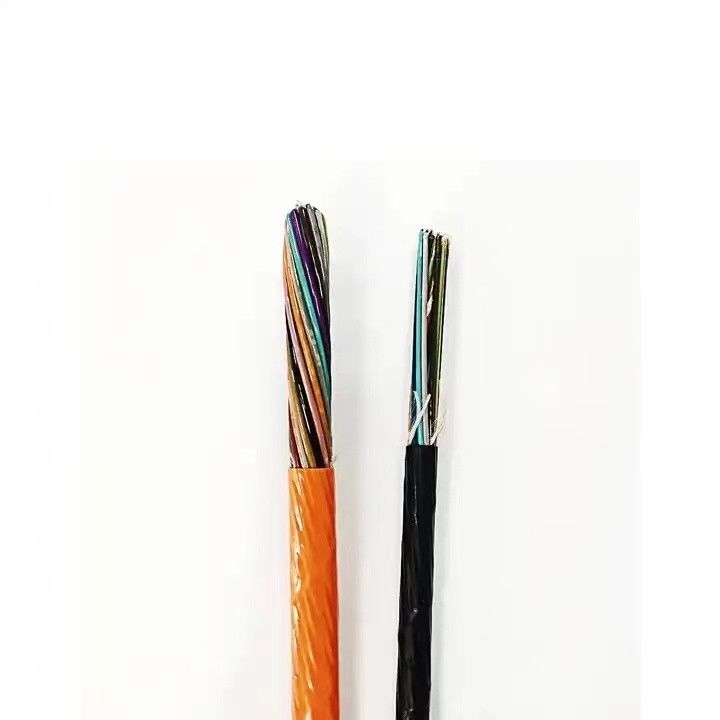

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable
Product Description
The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.
Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.
Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.
1. Model: GCYFY-96B1.3
2. Cable Cross-section
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.
Cable Parameters
|
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
| 12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Environmental Characteristics
| Working temperature | -35oC ~ +70oC |
| Storage and transportation temperature | -35oC~ +70oC |
| Installation temperature | -15oC~ +60oC |
Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.
Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.
FAQ
Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.
Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.
Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.
Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.
Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.
Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.
Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
