GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced

1km
MOQ
Inquiry for price
가격
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
섬유 종류: G652D/G657A1/G657A2
섬유수: 2-288 코어
재킷: PE, MDPE, LSZH, PVC, HDPE
색상: 검거나 오렌지색이거나 주문 제작됩니다
길이: 2km, 5km 또는 맞춤형 길이
보증: 10년
애플리케이션: 덕트/ 직접 매장
튜브형: 느슨한 튜브
강조하다:

288 core armored fiber optic cable

,

steel tape reinforced optical cable

,

outdoor underground direct burial fiber

기본 정보
원래 장소: 중국 광둥성
브랜드 이름: Jiqian/Customize/ OEM
인증: CE/ISO9001/RoHS/FCC
모델 번호: GYTS-48B1
결제 및 배송 조건
포장 세부 사항: 나무 드럼 또는 맞춤형
배달 시간: 3-5 일, 수량에 따라 다릅니다
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력: 월 60000km/월
제품 설명

GYTS Armored Underground Fiber Optic Cable 2–48 Core Outdoor Communication Cable



Product Introduction
GYTS fiber optic cable is designed for underground installations, featuring steel tape armor for strong mechanical protection and stable long-distance signal transmission.

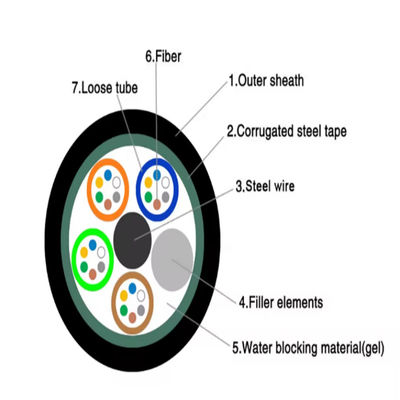

Key Features

  • Corrugated steel tape armor for crush resistance
  • Loose tube structure for fiber protection
  • Strong tensile performance
  • Durable PE outer sheath

Applications

  • Underground fiber networks
  • Telecom and backbone communication
  • Data center connections
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D




GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 0





GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 1



GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 2





Fiber Tube Color:
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 3

Packaging Details
  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 4
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 5
Exhibition Picture
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 6

FAQ



1. What fiber types are available for GYTS cable?
It supports single-mode and multimode fibers such as G652D, OM1, OM2, OM3, and OM4.



2. How many cores are available?
Common options include 2, 4, 6, 8, 12, 24, 32, and 48 cores.



3. Is GYTS cable suitable for direct burial?
Yes, the steel tape armored structure provides strong protection for underground installation.



4. What environments is this cable designed for?
It is suitable for outdoor underground networks, telecom infrastructure, and backbone communication systems.



5. What is the outer jacket material?
The cable uses a durable PE outer sheath for weather and environmental resistance.
