MGTSV Mining Armored Fiber Optic Cable Flame Retardant Underground Communication Cable
Features:
Applications:
|
Item Name
|
MGTSV Fiber Optic Cable
|
|
Place of Origin
|
Guangdong,China
|
|
Model Number
|
MGTSV
|
|
Brand Name
|
JQ/ Jiqian/ Customize |
|
Fiber Type
|
Single mode ITU-T G652D
|
|
Fiber No.
|
2-288 cores
|
|
Strength Member
|
Central Steel Wire/ FRP
|
|
Material of Jacket
|
Flame-retardant Sheath
|
|

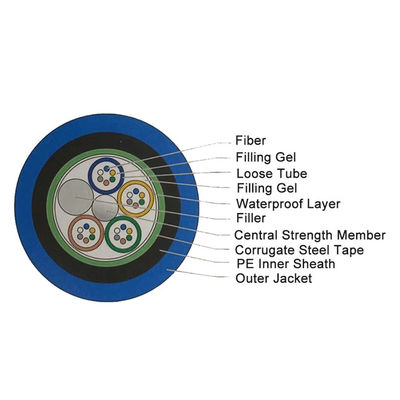

Cable Structure
|
Stranded Loose Tube
|
|
Certificate
|
ISO9001/CE/RoHS/CE
|
|
Storing Temperature
|
-40℃ to +70℃
|
|
Application
|
Duct/Aerial
|
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical data
| Cable Type |
Fiber Count |
Tubes +Fills |
Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long /Short Term N/100m |
Bending Radius Static /Dynamic mm |
|
MGTSV-2~6 |
2~60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62~72 | 62~72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74~96 | 74~96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98~120 | 98~120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122~144 | 122~144 | 12 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146~216 | 146~216 | 18 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |

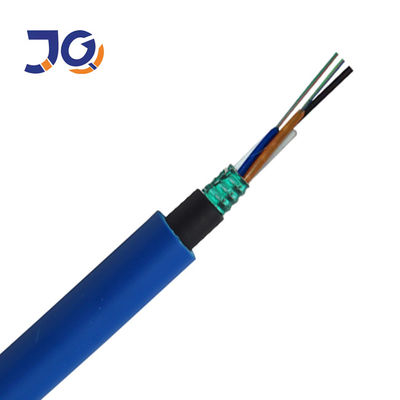

Product Image
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
FAQ – MGTSV Mining Fiber Optic Cable
Q1: What is MGTSV fiber optic cable used for?
A: It is mainly used for underground mining communication and monitoring systems.
Q2: Is MGTSV cable flame retardant?
A: Yes, it uses a flame-retardant PVC sheath designed for safe mining environments.
Q3: Does the cable have strong mechanical protection?
A: Yes, the PSP armored layer and steel strength member provide excellent crush and impact resistance.
Q4: Is the cable waterproof?
A: Yes, the cable features gel-filled loose tubes and full water-blocking structure.
Q5: Can the fiber count be customized?
A: Yes, different fiber core counts can be customized according to project requirements.
