| 최소 주문 수량 : | 1km | 포장 세부 사항 : | 나무 드럼 |
|---|---|---|---|
| 배달 시간 : | 5-8 근무일 | 지불 조건 : | L/C, T/T, 웨스턴 유니온 |
| 공급 능력 : | 한달에 4500KM |
| 원래 장소: | 광저우, 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO9001 ROHS CE FCC SDOC | 모델 번호: | GYTA33 |
|
상세 정보 |
|||
| 섬유 종류: | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 | 색상: | 검거나 오렌지색이거나 주문 제작됩니다 |
|---|---|---|---|
| 재킷: | PE, MDPE, LSZH, PVC, HDPE | 섬유 수: | 4-72코어 |
| 제품명: | 좌초된 느슨한 튜브 기갑 케이블 | 길이: | 2km 또는 맞춤형 길이 |
| 설치: | 에어리얼 및 덕트 | OEM: | 사용 가능 |
| 강조하다: | 24 core underwater armored fiber optic cable,48 core stranded loose tube fiber cable,GYTA33 underground fiber optic cable |
||
제품 설명
Overview The GYFTY33 is a heavy-duty, water-proof fiber optic cable based on the GYFTY structure. It is engineered with multi-layer protection to ensure superior waterproofing and resistance to mechanical crushing (anti-extrusion).
Structural Composition (Inside-Out)
Core: GYFTY fiber optic cable base.
Moisture Barrier: Longitudinal aluminum tape coating.
Inner Sheath: Extruded Polyethylene (PE) layer.
Armoring: Single or double layer of thin round steel wire (wrapped longitudinally).
Outer Sheath: Final extruded Polyethylene (PE) protective layer.
Key Features
Enhanced Waterproofing: Dual protection via aluminum tape and PE sheathing.
High Mechanical Strength: Round steel wire armor provides excellent anti-extrusion and tensile strength for underwater or harsh environments.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters

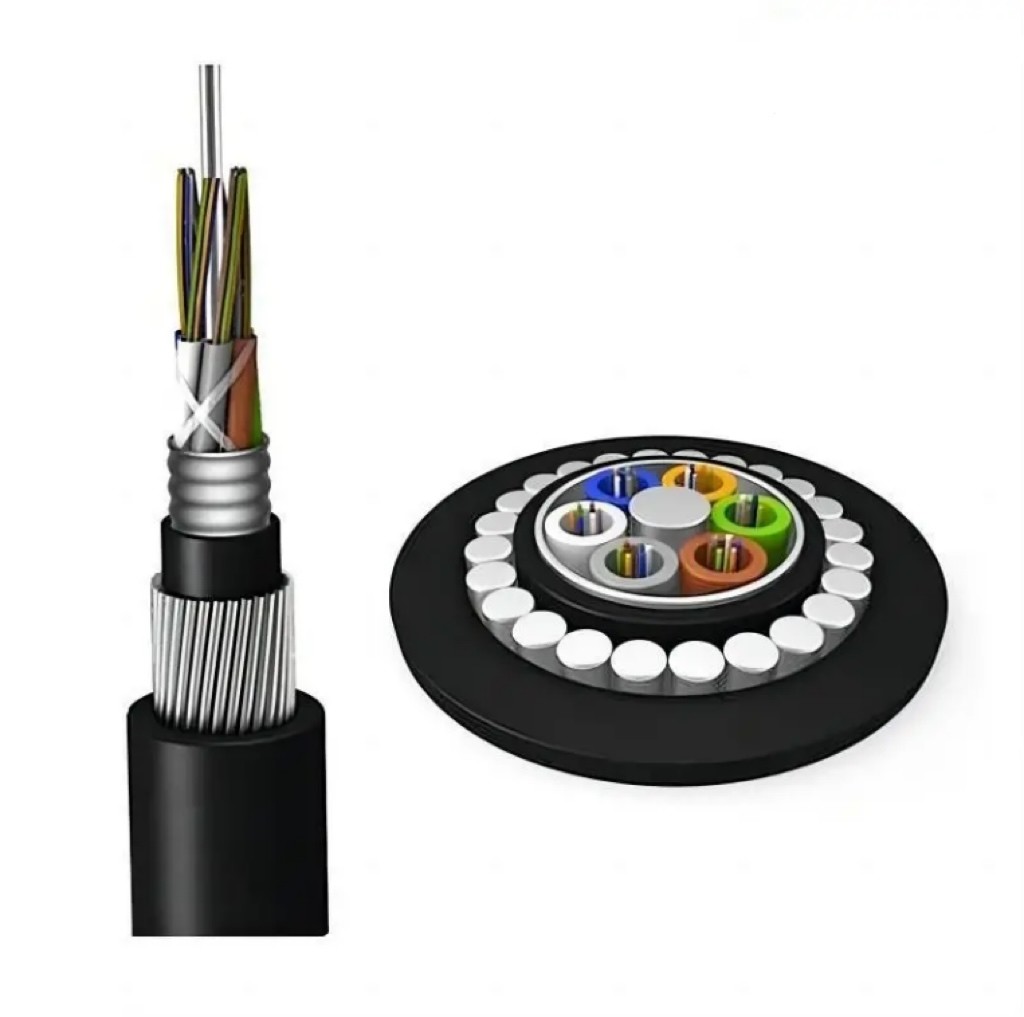

Product Construction

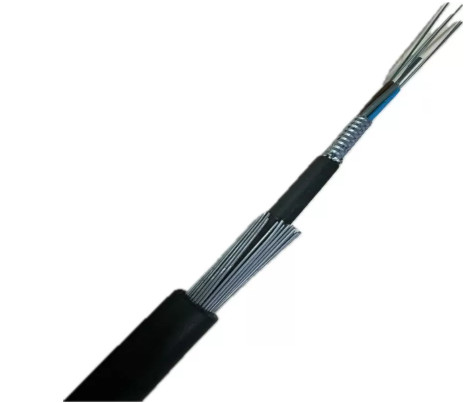

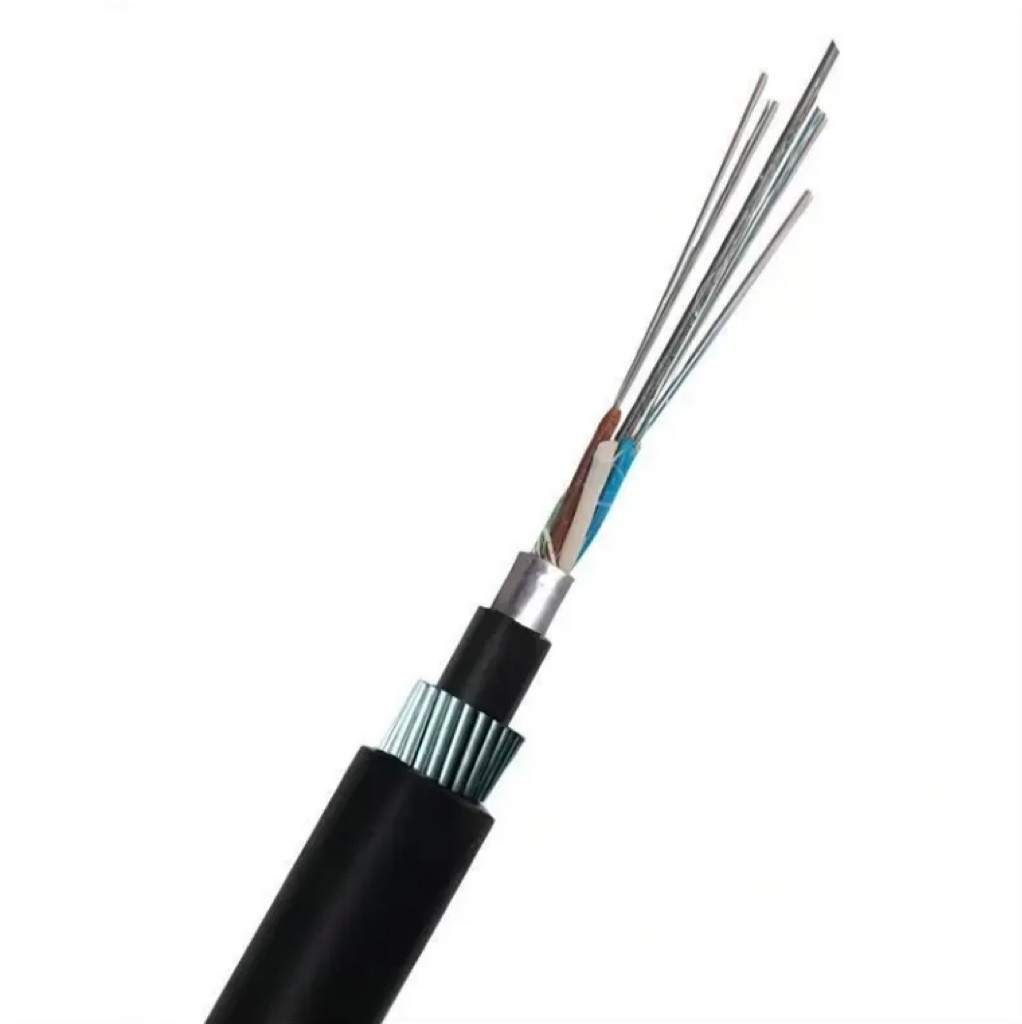

Cable Picture
Application
Suitable for directly buired laying or Underwater method
Related-products: GYTA53
Packing
1/2/3/4km or customized length export wooden drum
professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Factory Directly Supply Price.
2. Life Time Warranty:More 25years
3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.
4. 100% test before shipping.
5. OEM/ODM is available.
6. Professional manufacturer. Welcome to visit our factory!
