GYTS 24 코어 덕트 광섬유 케이블
담당자 : JQ CABLE
전화 번호 : +8618122383351
왓츠앱 : +8618122383351
|
상세 정보 |
|||
| 섬유 수: | 4-144 코어 | 섬유 종류: | 단일 모드 G652D/G657A1 |
|---|---|---|---|
| 재킷: | PE, MDPE, LSZH, PVC, HDPE | 색상: | 검거나 오렌지색이거나 주문 제작됩니다 |
| 제품명: | 장갑하지 않은 유선 광섬유 케이블 | 구조: | 스트랜딩 SZ |
| 설치: | 에어리얼 및 덕트 | Strenght 멤버: | FRP |
| 강조하다: | GYFTY duct fiber optic cable,outdoor FTTH fiber optic cable,12 core non-armored fiber cable |
||
제품 설명

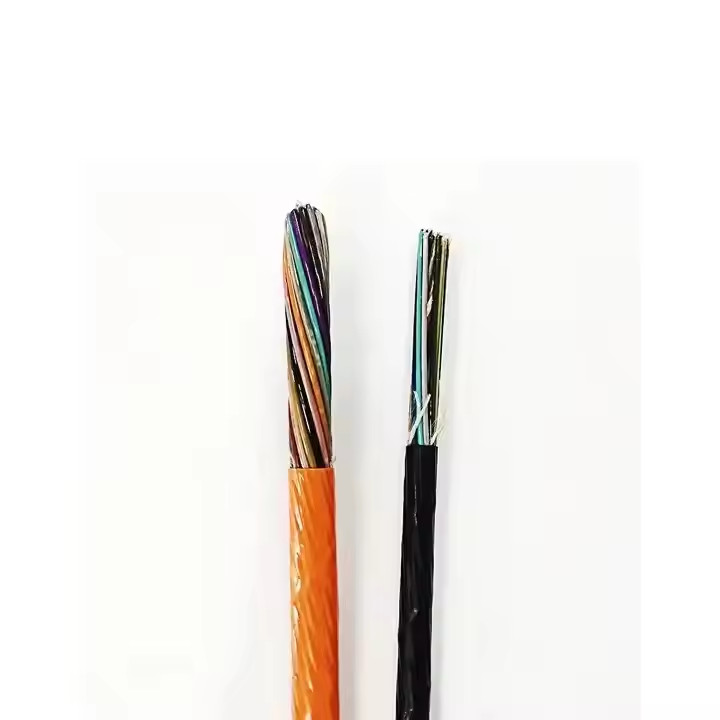

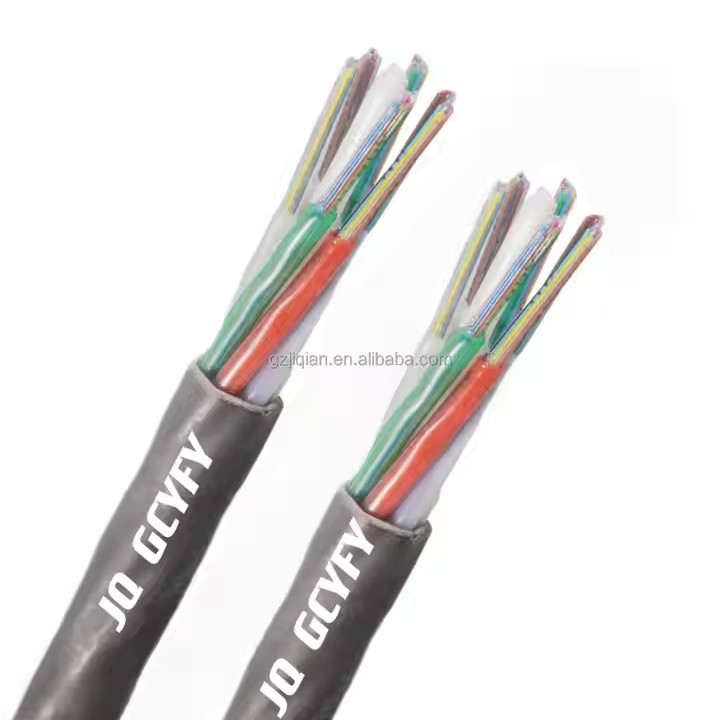

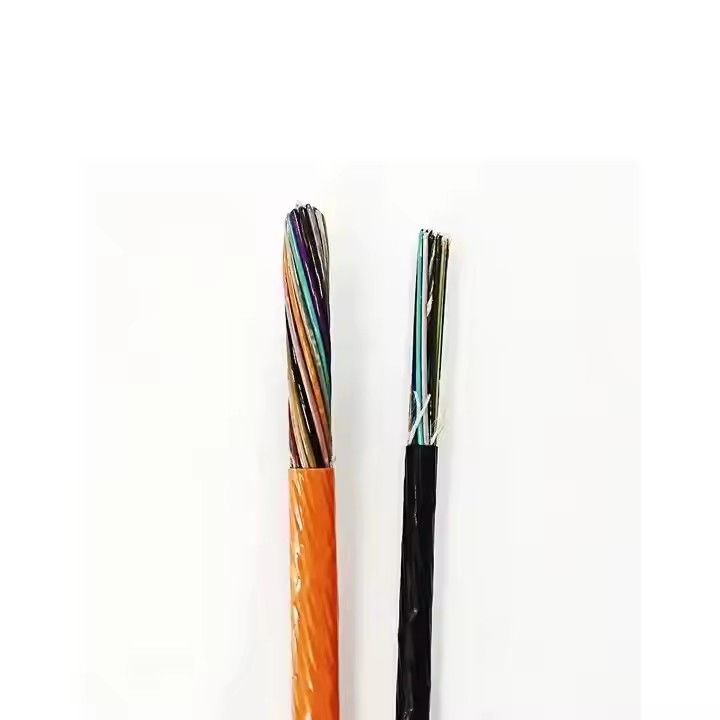

2-144 Cores GYFTY Non-armored Duct Fiber Optic Cable With Factory Price, Support OEM.
Small diameter lightweight and soft for easy installation
Optimized structure with strong water blocking performance
FRP non metallic central strength member for high tensile strength
Excellent resistance to electromagnetic interference

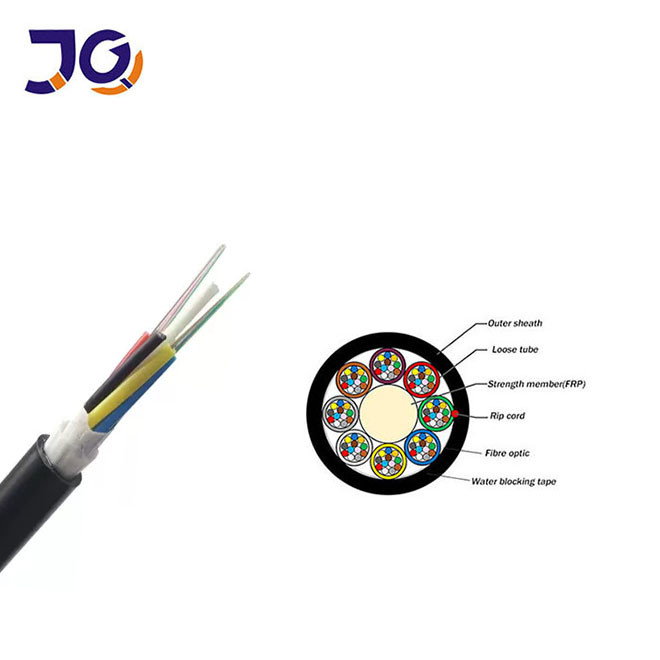

Jelly filled loose tube design with PP filler for fiber protection
Water blocking tape and PE outer sheath for outdoor durability
Aerial installation
Duct installation
Excellent mechanical strength and temperature stability
Reliable fiber protection for long term outdoor deployment
PE sheath provides strong UV resistance crush resistance and flexibility
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Cable Parameters
| Items | Specifications | |
| Fiber Count | 48fibers | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 2.0mm±0.2mm |
| Material | FRP or steel wire | |
| Outer Jacket | Dimension | 12.0mm±0.2mm |
| Material | PE | |
| Color | Black | |
![]()
![]()
Cable Mark: Company logo GYFTY-48B1.3 2024 0000M
![]()
Welcome to your Inquiry Welcome to visit our factory!
