| 최소 주문 수량 : | 50개 | 포장 세부 사항 : | 100PCS 1개의 수출 만화 상자 |
|---|---|---|---|
| 배달 시간 : | 5-8 근무일 | 지불 조건 : | 웨스턴 유니온, T/T, L/C, 알리페이 |
| 공급 능력 : | 하루 5000개 |
| 원래 장소: | 광저우, 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO 9001,ROHS CE-EMC FCC SDOC | 모델 번호: | SM-SX 패치 코드 |
|
상세 정보 |
|||
| 재료: | PVC/LSZH | 색상: | 노란색 |
|---|---|---|---|
| 목: | 광섬유 패치 코드 | 반복성: | ≤ 0.2dB |
| 섬유 수: | 단순 또는 이중 | 품질 관리: | 배송 전에 100% 테스트 |
| 커넥터 유형: | SC / APC-SC / UPC | 제품명: | 광섬유 패치 코드 |
| 강조하다: | SC APC to SC UPC fiber patch cord,single mode optical fiber cable,LSZH fiber optic patch cord |
||
제품 설명

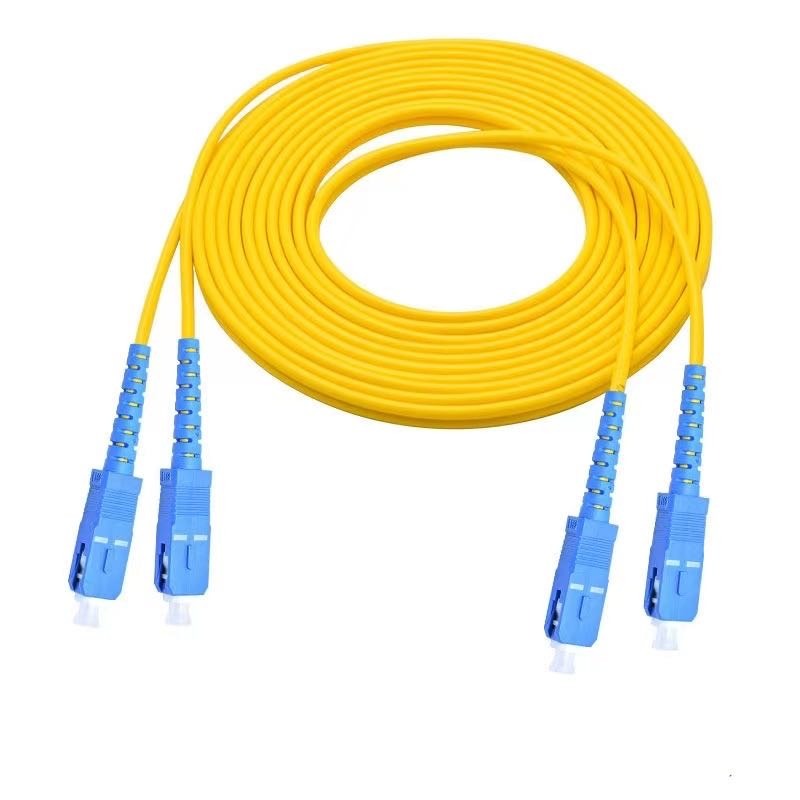

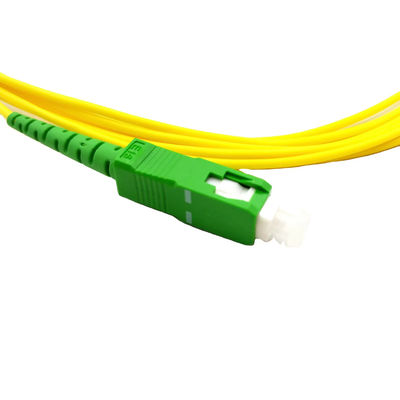

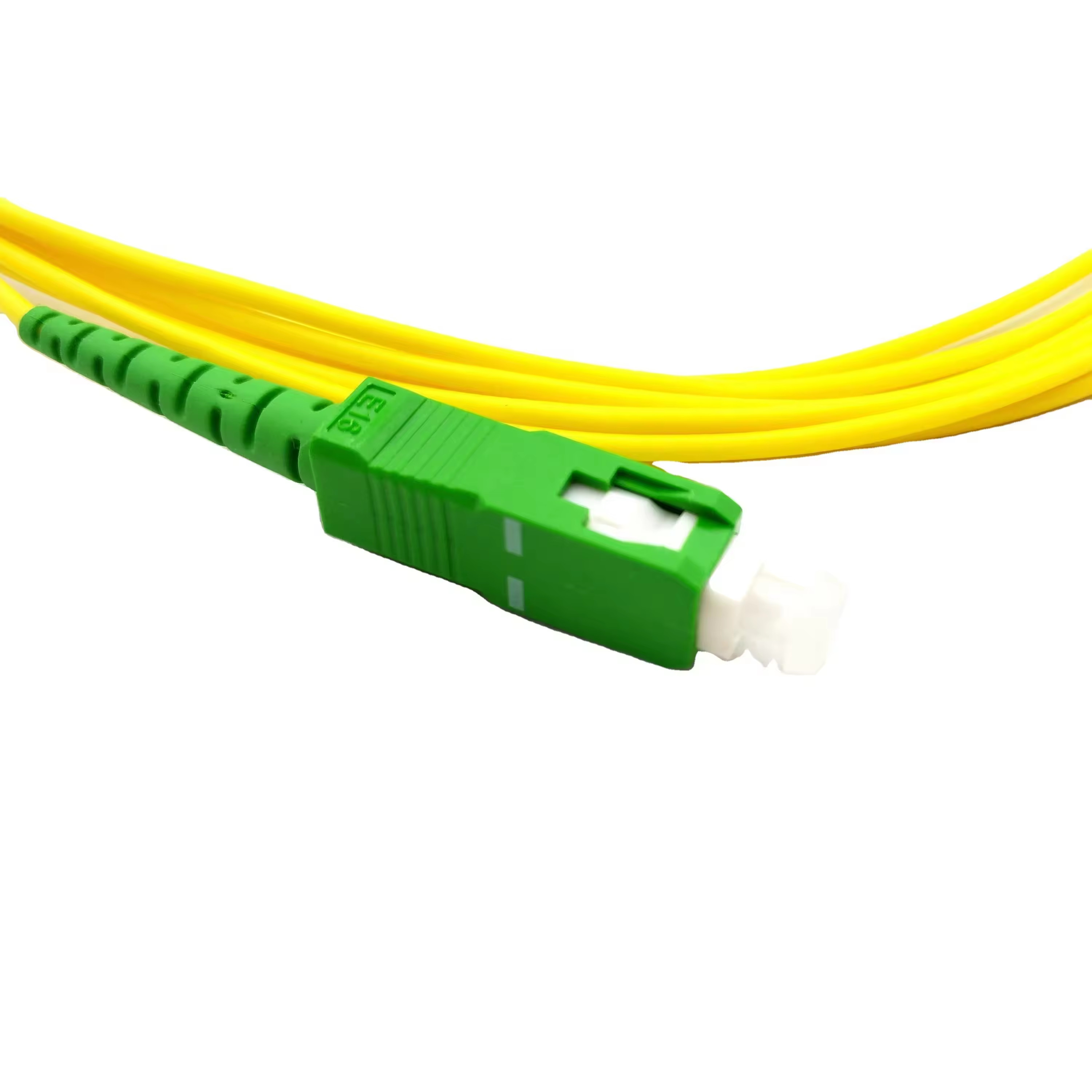

SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord
Product Description
9/125µm simplex 900µm buffered fiber patch cord, UPC polished and factory terminated. Fully tested for insertion and return loss with data recorded for each cord. Complies with TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards. High-quality tight-buffered fiber with lifetime traceable QC.
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter |
PC |
UPC |
APC |
Multi-mode |
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return loss |
≥40dB |
≥50dB |
≥60dB |
≥35dB |
|
Exchange |
≤0.2dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Servicelife |
>1000times |
|||
|
Tensile strength |
>10kg |
|||
|
Temperature range |
-40°C to +85°C |
|||
Technical Data
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,MPO,SC/APC, FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125(Multi mode) OM2&OM1 50/125,10G(Multi mode)OM3 |
|
Cable |
Simplex,Duplex outer diameter:3.0mm,20mm,0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC(8°&6°) |
|
Insertion Loss |
≤0.1dB (For Single mode Master) ≤0.25dB (For Single mode Standard) ≤0.25dB (ForMultimode) Tested by JDSRM3750 |
|
Return Loss (Single mode) |
UPC≥50dB SPC≥55dB APC≥60dB (typ.65dB) Tested by JDSRM3750 |
|
Repeat ability |
≤0.1dB |
|
Operating temperature |
-400 C° to 850 C° |
|
Geometry Requirement (Single mode) |
Ferrule Endface Radius 7mm≤R≤12mm (For APC) 10mm≤R≤25mm (For Standard) Apex Offset≤30μm (For Master) Apex Offset≤50μm (For Standard) Under cut-50nm SU≤50nm Tested by DORCZX-1 |
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Connector Type
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
