SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord
Product Features
SC APC to SC UPC connector design
Ensures low insertion loss and stable optical signal transmission for single mode fiber networks.
High quality single mode fiber 9 125 micron
Tight buffered structure provides excellent mechanical protection and long term reliability.
Factory terminated and fully tested
100 percent tested for insertion loss and return loss with data recorded for each patch cord.
Precision polished end face
Complies with Telcordia GR 326 CORE and TIA EIA 568 B 3 standards for consistent performance.
Low loss and high return loss performance
Suitable for high speed and long distance optical transmission.
Durable and flexible jacket
900 micron buffered fiber ensures easy installation and good bending resistance.
FTTH and FTTx networks
Used for connecting optical network terminals and distribution frames.
Telecom and data communication systems
Ideal for patching between ODFs switches and optical equipment.
Data centers and server rooms
Reliable fiber jumper for high density cabling environments.
Optical testing and measurement
Suitable for test instruments and temporary fiber connections.
Indoor fiber optic connections
Widely used in central offices equipment rooms and communication cabinets.
Optical Characteristics
|
Parameter |
PC |
UPC |
APC |
Multi-mode |
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return loss |
≥40dB |
≥50dB |
≥60dB |
≥35dB |
|
Exchange |
≤0.2dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Servicelife |
>1000times |
|||
|
Tensile strength |
>10kg |
|||
|
Temperature range |
-40°C to +85°C |
|||
Technical Data
|
Type |
Standard,Master |
|
Style |

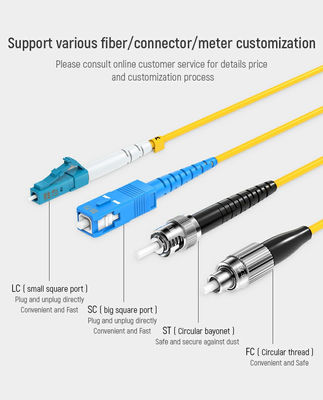

LC,SC,ST,FC.MU,DIN,MPO,SC/APC, FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125(Multi mode) OM2&OM1 50/125,10G(Multi mode)OM3 |
|
Cable |
Simplex,Duplex outer diameter:3.0mm,20mm,0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC(8°&6°) |
|
Insertion Loss |
≤0.1dB (For Single mode Master) ≤0.25dB (For Single mode Standard) ≤0.25dB (ForMultimode) Tested by JDSRM3750 |
|
Return Loss (Single mode) |
UPC≥50dB SPC≥55dB APC≥60dB (typ.65dB) Tested by JDSRM3750 |
|
Repeat ability |
≤0.1dB |
|
Operating temperature |
-400 C° to 850 C° |
|
Geometry Requirement (Single mode) |
Ferrule Endface Radius 7mm≤R≤12mm (For APC) 10mm≤R≤25mm (For Standard) Apex Offset≤30μm (For Master) Apex Offset≤50μm (For Standard) Under cut-50nm SU≤50nm Tested by DORCZX-1 |

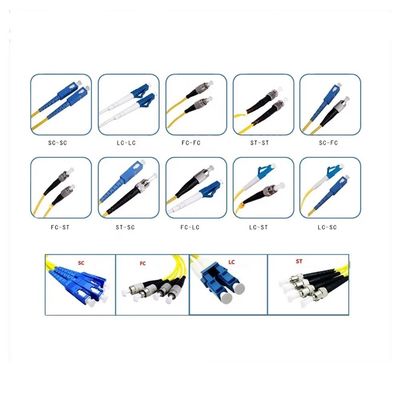

Connector Type
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
FAQ
Q1: What connectors does this patch cord use?
A: SC APC to SC UPC.
Q2: What fiber type is used?
A: 9/125 micron single mode fiber.
Q3: Is the patch cord tested?
A: Yes, 100 percent factory tested.
Q4: Which standards does it meet?
A: Telcordia GR 326 CORE and TIA EIA 568 B 3.
Q5: What lengths are available?
A: 1m 2m and 3m. Custom lengths available.
Q6: Where is it used?
A: FTTH telecom networks data centers and ODFs.
Q7: Do you support OEM?
A: Yes, OEM and customization are supported.
