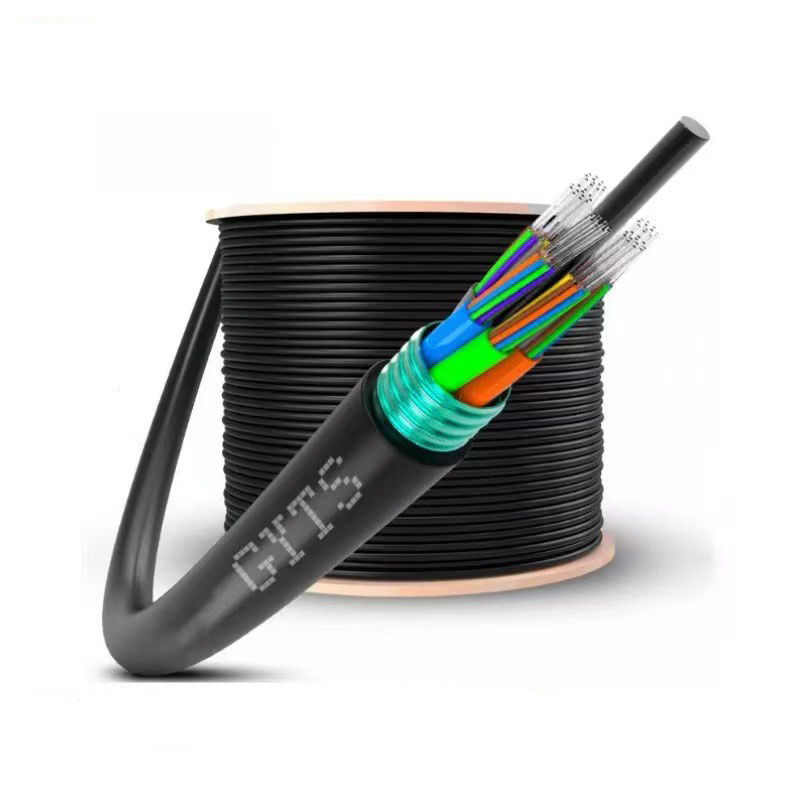

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable

최소 주문 수량 :	1km	포장 세부 사항 :	나무 드럼
배달 시간 :	3-5 일, 수량에 따라 다릅니다	지불 조건 :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력 :	월 60000km/월

원래 장소:	광동 중국	브랜드 이름:	Jiqian/Customize/ OEM
인증:	CE/ISO9001/RoHS/FCC	모델 번호:	GYTS-48B1

상세 정보
섬유 유형:	G652D/G657A1/G657A2	섬유 수:	2-288 코어
재킷:	PE, MDPE, LSZH, PVC, HDPE	색상:	검은색
길이:	2km, 5km 또는 맞춤형 길이	보증:	10 년
애플리케이션:	덕트/ 직접 매장	파장:	1310/1550
튜브 유형:	느슨한 튜브	발진시간:	20년 이상
섬유 브랜드:	yofc/ corning/ fiberhome	방수복:	예
재킷 지름:	9.8-16.1	허용 측면 압력:	> 1000 (N/100mm)
강도 멤버:	두 개의 스틸 와이어	케이블 길이:	1000m
지휘자 수:	2,4,8,24,48	관내의 지름:	2.2~2.6mm
기간:	100/200/300/400/500m	갑옷 타입:	스틸 테이프/스틸 와이어/알루미늄 테이프
스팸:	100/200/300/400/500m	연결 구조:	둥근 와이어
OEM 공장:	예	케이블 유형:	느슨한 튜브/장갑
재킷 재료:	PE/PVC/LSZH/HDPE/MDPE	장갑:	강화된 강철 줄자
아라미드 섬유:	수입 또는 국산	표준 길이:	2,000m/4000m
강철:	0.45mm	레이어링 방법:	직접 매장/ 덕트 배치
느슨한 튜브:	겔 충진됩니다	케이블 디자인:	중앙 느슨한 튜브
UV 저항:	예	작동 온도:	-20 ℃ ~ +70 ℃
강조하다:	armored underground fiber optic cable , direct burial outdoor fiber cable , 288 core outdoor fiber optic

제품 설명

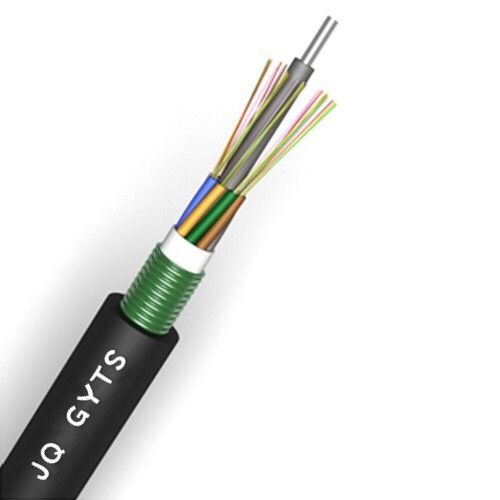

High-Performance GYTS Armored Underground Fiber Optic Cable

The GYTS armored fiber optic cable is designed for reliable underground installations, offering durability and stable performance in harsh environments. Available in 2, 4, 6, 8, 12, 24, 32, and 48 cores, it provides flexible options for various network requirements.

Key Features:

Armored Protection: Steel tape or wire armor ensures resistance to mechanical stress, rodent damage, and crushing.
Durable Outer Sheath: High-density polyethylene (HDPE) jacket protects against moisture, corrosion, and UV exposure.
Stable Data Transmission: Multiple cores support long-distance, high-speed communication with minimal signal loss.
Easy Installation: Designed for direct burial or conduit installation, simplifying deployment in outdoor environments.
Versatile Applications: Ideal for telecom networks, data centers, FTTH projects, and critical communication systems.

Specifications & Advantages:

Core options from 2 to 48 for different network needs
Excellent mechanical strength and environmental resistance
Low maintenance and long service life

This GYTS armored underground fiber cable is perfect for network operators, service providers, and enterprise installations requiring reliable, high-performance underground optical connectivity.

Structural Features

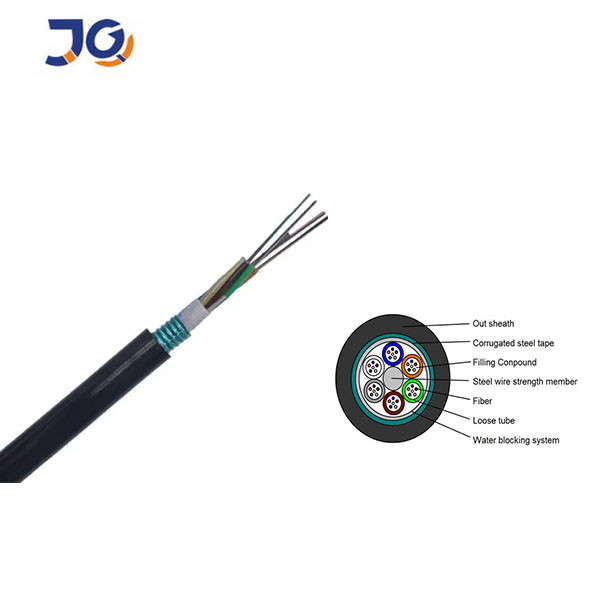

The cable features loose tubes or filler elements stranded around a central metal strength member. The core is protected by corrugated steel tape and an outer PE jacket. The tubes, made from temperature-resistant materials, house single-mode or multi-mode fibers with double coating for enhanced durability.

Product featureThe cable is built with loose tubes or fillers twisted around a central metal strength member. The core is protected with corrugated steel tape and a robust PE outer jacket. The tubes, constructed from heat-resistant materials, contain double-coated single-mode or multi-mode fibers.

Technical Parameters:

			Cable Type (increased by 2fibers)

			Fiber Count

			Tubes+Fillers

			Cable Diameter mm

			Cable Weight kg/km

			Tensile Strength Long/Short Term N

			Crush Resistance Long/Short Term N/100mm

			Bending Radius Static/Dynamic mm

			GYTS 2 ~ 30

			2~30

			5

			9.5

			80

			600/1500

			300/1000

			10D/20D

			GYTS 32 ~36

			32~36

			6

			9.7

			97

			600/1500

			300/1000

			10D/20D

			GYTS 38 ~60

			38~60

			6

			10.5

			109

			600/1500

			300/1000

			10D/20D

			GYTS 62 ~72

			62~72

			6

			11.5

			126

			600/1500

			300/1000

			10D/20D

			GYTS 74 ~96

			74~96

			8

			13.2

			153

			600/1500

			300/1000

			10D/20D

			GYTS98 ~120

			98~120

			10

			14.6

			182

			600/2000

			300/1000

			10D/20D

			GYTS122 ~ 144

			122~144

			12

			16.5

			221

			600/2500

			300/1000

			10D/20D

			GYTS146 ~ 216

			146~216

			18

			16.5

			221

			600/2500

			300/1000

			10D/20D

Fiber Tube Color:

Packaging Details

Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.
Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Exhibition Picture
Frequently Asked Questions (FAQ)
What is a fiber optic cable?

	Fiber optic cables transmit data as light signals, offering higher speeds and greater bandwidth compared to traditional copper cables.
What types of fiber optic cables do you offer?

	We provide armored, drop, and loose tube cables, suitable for underground installations, FTTH networks, and other applications.
What core counts are available?

	Cables are available in 2, 4, 6, 8, 12, 24, 32, and 48 cores. Custom core counts can also be arranged.
What is the difference between single-mode and multi-mode fiber?
Single-mode: Best for long-distance, high-speed transmission.
Multi-mode: Suitable for shorter distances with high data rates.
How are the cables packaged?

	Cables are delivered on fumigated wooden drums, wrapped in protective polyethylene, and reinforced with wooden battens.
How do I choose the right fiber optic cable?

	Consider the core count, fiber type (single-mode or multi-mode), and installation environment (indoor, outdoor, or underground). We can assist in selecting the best option.
What is the lead time for orders?

	Standard orders typically ship within 7–10 business days. Custom orders may take longer.
Do you provide installation services?

	We do not provide installation, but can recommend reliable installation partners.
How can I request a quote?

	Email us at [jiqian@gzjqofc.com] with details including core count, cable type, and quantity to receive a quotation.
