Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

최소 주문 수량 : 50pcs 포장 세부 사항 : PE 백 또는 플라스틱 상자 및 만화 상자
배달 시간 : 3-5 일 지불 조건 : Western Union, T/T, L/C.
공급 능력 : 하루 30000pc
원래 장소: 광저우, 중국 브랜드 이름: JQ/OEM/Customize
인증: ISO 9001,ROHS CE-EMC FCC SDOC 모델 번호: 광섬유 피그 테일

상세 정보

애플리케이션: ftth fttb fttx 네트워크 커넥터 유형: SC UPC
길이: 3는 재거나, 특화했습니다 색상: 사용자 정의
케이블 직경: 0.9/2.0/3.0mm 페룰 엔드 페이스: PC/UPC/APC
재킷 재료: PVC/LSZH/PE 제품 이름: 광섬유 피그 테일
송신기 파장: 1310nm 목: 광섬유 패치 코드
섬유 유형: G.652D/G.657A1/G.657A2 회로망: 4g, 5g
섬유 번호: 1 (단순) 제품: OM4 SC-SC 12 코어 광섬유 패치 케이블
섬유 카운트: 9/125um, 50/125um, 62.5/125u 반환 손실: > 50dB (UPC)/> 60dB (APC)
케이블 직경: 2.0 3.0mm 물미: APC
폴란드 유형: UPC에서 UPC로 케이블 길이: 1m/2m/3m/5m/10m/사용자 정의
섬유 모드: 단일 모드 케이블 유형: 단일 모드/멀티 모드
코어 수: 단일 코어 파장: 1260-1650nm
선택적 커넥터: LC/SC/FC/ST 안의: 세라믹
세련: PC 또는 UPC 특징: IL&RL의 고성능
지휘자 수: 1 재킷: PVC/LSZH
강조하다:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

제품 설명

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

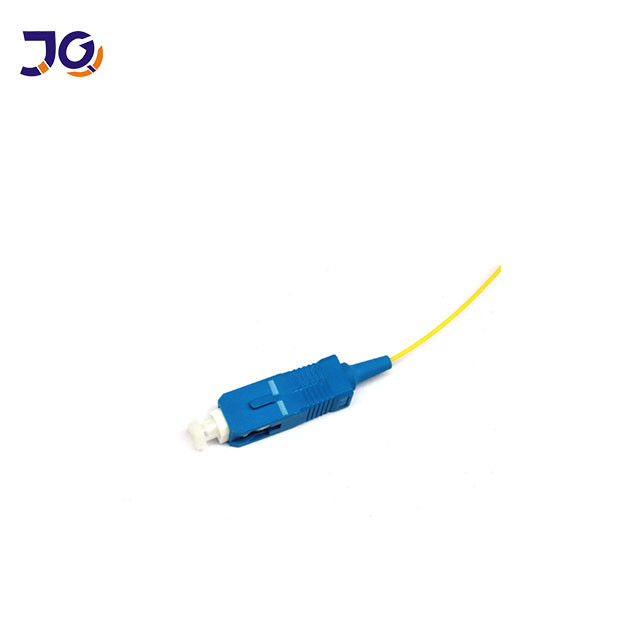

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

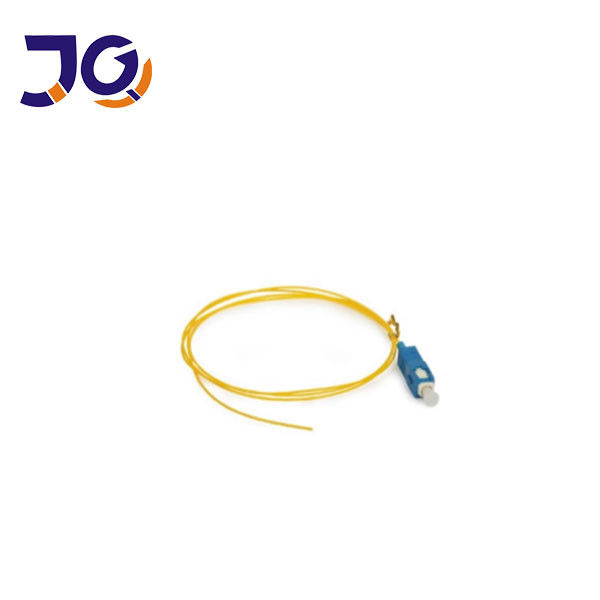

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3




FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
