| 최소 주문 수량 : | 50pcs | 포장 세부 사항 : | 100PCS 1개의 수출 만화 상자 |
|---|---|---|---|
| 배달 시간 : | 5-8 일 | 지불 조건 : | 웨스턴 유니온, T/T, L/C, 알리페이 |
| 공급 능력 : | 하루 5000개 |
| 원래 장소: | 광저우, 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | ISO 9001,ROHS CE-EMC FCC SDOC | 모델 번호: | SM-SX 패치 코드 |
|
상세 정보 |
|||
| 재료: | LSZH /PVC | 색상: | 노란색/검은 색 |
|---|---|---|---|
| 목: | 광섬유 패치 코드 | 반복성: | ≤ 0.2dB |
| 섬유 수: | 단순 또는 이중 | 섬유 유형: | SM 또는 MM |
| 품질 관리: | 배송 전에 100% 테스트 | 커넥터 유형: | SC / APC-SC / UPC |
| 길이: | 1m 2m 3m 또는 사용자 정의 | 제품 이름: | 광섬유 패치 코드 |
| 폴란드어: | PC/UPC/APC | 사용자 정의 길이: | 1/2/3/5/7/9/10m |
| 포장: | 폴리 백 | 부츠: | 12컬레 색 부츠 |
| 제품 이름: | 광섬유 패치 코드 | 지휘자 수: | 1/2/4 핵심 |
| 단부면: | 완전한 클린 | 케이블: | 기지국 케이블 5.0mm Gyfjh |
| 케이블 자켓 재료: | LSZH 또는 PVC | 보증: | 5 년 |
| 플러그 재질: | NSK, 일본 | 테스트: | 100% 제품 테스트 |
| 지름: | 3.0 mm,2.0mm,0.9mm | 트렁크 지름: | 30.0mm-17.3mm |
| 섬유형: | G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4 | 특징: | IP68 방수성 |
| 분쇄 저항: | ≥100n/100mm | 외부 재킷: | PVC/LSZH/OFNP |
| 방식층 재료: | LSZH, TPU | 섬유 유형: | G.652d, G.657A1, G.657A2 등 |
| 모델 번호: | FC SC ST LC 패치 코드 | 섬유 길이: | 사용자 정의 |
| 커넥터 스타일: | LC/APC-LC/UPC | 재킷 OD: | 2mm |
| 파장: | 1310/1550NM | 외경: | 7.0mm |
| 기능: | 섬유 신호 전송 | ||
| 강조하다: | SC/APC to SC/UPC fiber patch cord,LSZH fiber optic jumper cable,3.0mm fiber patch cord with warranty |
||
제품 설명
Product Description
This SC/APC to SC/UPC fiber optic patch cord delivers reliable, high-speed connections for telecom and data networks. Made with 9/125µm single-mode simplex fiber and a 900µm tight buffer, it ensures stable transmission and long-term durability.
Each cord is factory-terminated and UPC polished, 100% tested for insertion loss and return loss, with traceable QC records. Compliant with TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards, it guarantees excellent end-face geometry and superior optical performance.
The 3.0mm LSZH jacket provides flame retardance and low smoke emission, ideal for safe indoor use in data centers, LANs, FTTH, FTTX, and telecom rooms. Available in 1m, 2m, and 3m lengths for flexible installation.
Key Features:
Connector: SC/APC to SC/UPC
Fiber: 9/125µm Single-Mode Simplex
Jacket: LSZH, 3.0mm OD
Factory polished & terminated for stable performance
Fully compliant with TIA/EIA & Telcordia standards
100% tested with traceable QC record
Lengths: 1m, 2m, 3m
Applications: FTTH, FTTX, data centers, LAN, CATV, telecom

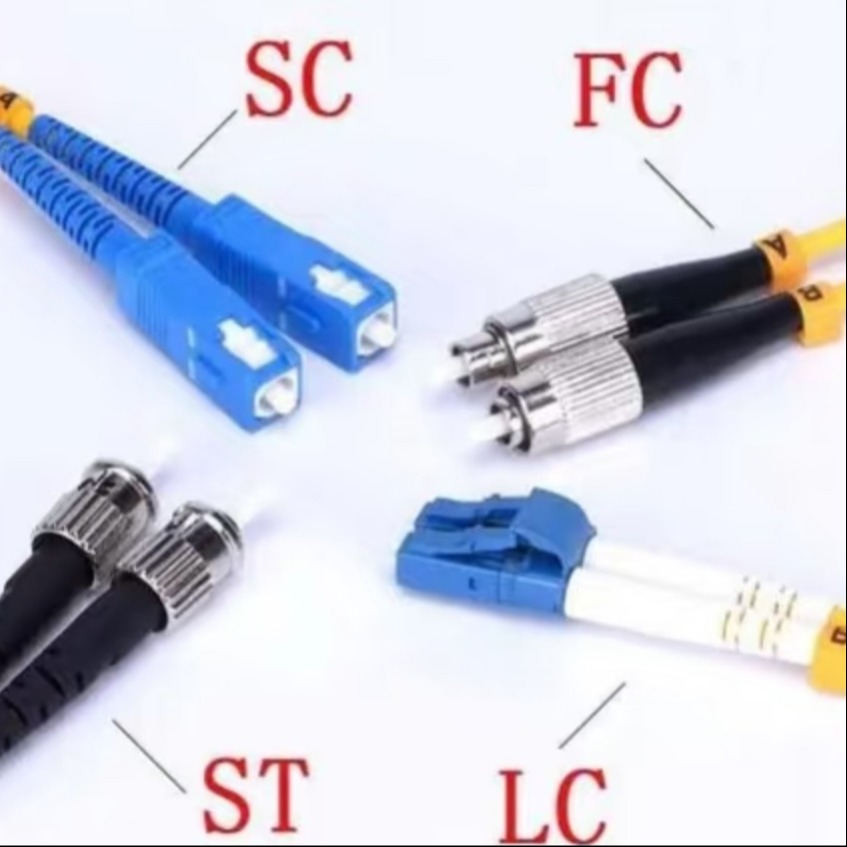

Connector Type
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter |
PC |
UPC |
APC |
Multi-mode |
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return loss |
≥40dB |
≥50dB |
≥60dB |
≥35dB |
|
Exchange |
≤0.2dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Servicelife |
>1000times |
|||
|
Tensile strength |
>10kg |
|||
|
Temperature range |
-40°C to +85°C |
|||
Technical Data
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,MPO,SC/APC,
FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode
50/125,62.5/125(Multi mode) OM2&OM1
50/125,10G(Multi mode)OM3 |
|
Cable |
Simplex,Duplex
outer diameter:3.0mm,20mm,0.9mm
PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC(8°&6°) |
|
Insertion Loss |
≤0.1dB (For Single mode Master)
≤0.25dB (For Single mode Standard)
≤0.25dB (ForMultimode)
Tested by JDSRM3750 |
|
Return Loss (Single mode) |
UPC≥50dB
SPC≥55dB
APC≥60dB (typ.65dB)
Tested by JDSRM3750 |
|
Repeat ability |
≤0.1dB |
|
Operating temperature |
-400 C° to 850 C° |
|
Geometry Requirement (Single mode) |
Ferrule Endface Radius
7mm≤R≤12mm (For APC)
10mm≤R≤25mm (For Standard)
Apex Offset≤30μm (For Master)
Apex Offset≤50μm (For Standard)
Under cut-50nm SU≤50nm
Tested by DORCZX-1 |
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ – SC/APC to SC/UPC Fiber Optic Patch Cord
Q1: What is the difference between SC/APC and SC/UPC connectors?
A1: SC/APC has an 8° angled end-face to reduce back reflection, ideal for CATV, FTTx, and high-precision networks. SC/UPC has a flat, ultra-polished surface, commonly used in data and telecom applications.
Q2: Is this patch cord single-mode or multimode?
A2: It is a single-mode (SM) patch cord with 9/125µm simplex fiber, suitable for long-distance, high-speed transmission.
Q3: What lengths are available?
A3: Standard lengths are 1m, 2m, and 3m. Custom lengths are available upon request.
Q4: What jacket material is used?
A4: 3.0mm LSZH (Low Smoke Zero Halogen) jacket, flame-retardant and safe for indoor installations.
Q5: Are these patch cords tested?
A5: Yes, all cords are 100% factory tested for insertion loss and return loss, with traceable QC data.
Q6: What standards does it comply with?
A6: Meets TIA/EIA-568-B.3 and Telcordia GR-326-CORE Issue 3 standards for consistent quality.
Q7: Where can this patch cord be used?
A7: Suitable for FTTH, FTTX, LAN, CATV, data centers, and telecom networks.
Q8: Can I customize connectors or lengths?
A8: Yes, we offer custom connector types (LC, FC, ST, etc.) and cable lengths on request.
