담당자 : JQ CABLE
전화 번호 : +8618122383351
왓츠앱 : +8618122383351
| 최소 주문 수량 : | 1 킬로미터 | 포장 세부 사항 : | 나무 드럼 |
|---|---|---|---|
| 배달 시간 : | 2-5 일 | 지불 조건 : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력 : | 한 달에 8000km |
| 원래 장소: | 광동, 중국 | 브랜드 이름: | JQ/OEM/Customize |
|---|---|---|---|
| 인증: | CE/ISO9001/RoHS/FCC | 모델 번호: | ASU |
|
상세 정보 |
|||
| 모델 번호: | ASU | 유형: | 옥외안테나 광섬유 케이블 |
|---|---|---|---|
| 원래 장소: | 광동, 중국 | 지휘자 수: | ≥ 10 |
| 섬유 유형: | G652d 단일 모드 또는 요청으로 | 길이: | 필요에 따라 |
| 색상: | 사용자 정의 | 강도 멤버: | FRP |
| 패키지: | 나무 드럼/맞춤형 | 신청: | 자부지식 안테리안 |
| OEM: | 사용 가능 | 코어 수: | 2-144 코어 |
| 케이블 시스: | HDPE/ MDPE/ PE | 섬유 옵션: | G652D, G657A1 |
| 중앙 강도 멤버: | FRP 강도 멤버/스틸 와이어 | 외부 재킷 재료: | 단일 PE 재킷 |
| 섬유 보호: | 워터 블로킹 젤 | CSM: | FRP |
| 저장 온도: | -40+~+85 ℃ | 아모르 층: | 알루미늄 테이프 |
| 강도 멤버: | 아라미드 원사 | 케이블 직경: | 10.5mm |
| 신청서: | 공중선 | 샘플 상태: | 재고로 |
| 보증 기간: | 25 년 | 강도 멤버 재료: | FRP/아라미드 원사 |
| 강조하다: | 4 core ADSS fiber optic cable,self-supporting fiber cable for 80-150M span,mini ADSS cable with warranty |
||
제품 설명
ASU Optical Cable | Non-Armored Uni-Tube Outdoor Fiber Cable with FRP Strength Members – High Bandwidth & Reliable Transmission
Product Overview

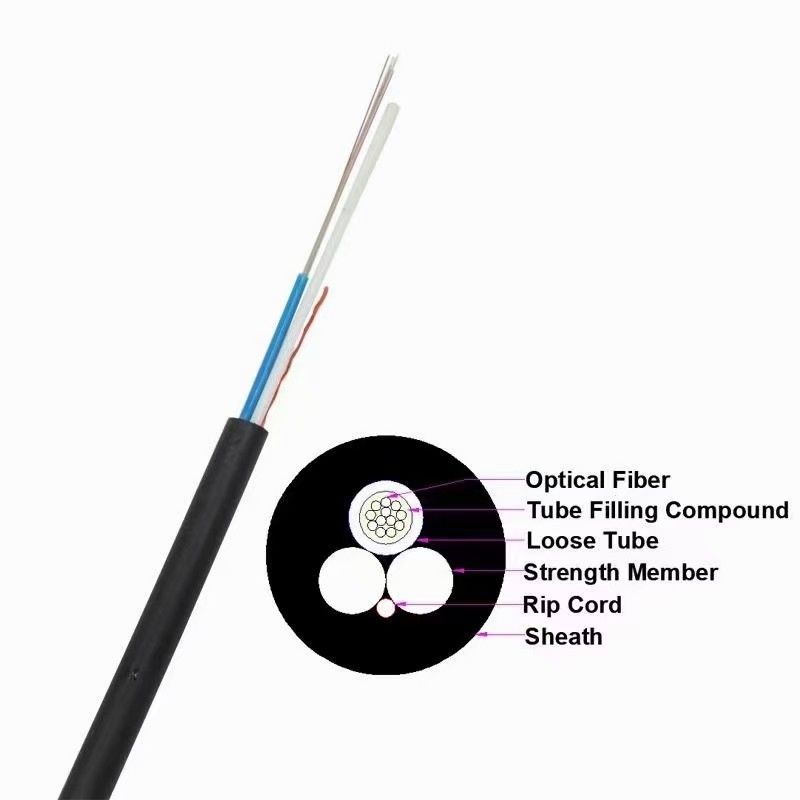

ASU (Non-Armored Uni-Tube) optical cable is designed for reliable and cost-effective outdoor fiber optic communication. The fibers are housed in a loose buffer tube filled with moisture-blocking jelly to prevent water ingress and migration. The cable is covered with a durable black polyethylene (PE) outer jacket for superior environmental protection. Two embedded strength members—either FRP (Fiber Reinforced Plastic) or metallic wires—provide excellent tensile strength, ensuring stable performance even in challenging environments.
Key Features & Benefits
High-Performance Optical Fiber – Utilizes special low-bend-sensitivity fibers that offer high bandwidth and excellent transmission properties, supporting long-distance and high-speed communication.
Enhanced Mechanical Strength – Two parallel FRP or metallic strength members deliver superior crush resistance and tensile performance, protecting the fibers during installation and operation.
Lightweight & Practical Design – Simple, compact cable structure allows for easy handling, transport, and installation, reducing overall project costs.
Easy Stripping & Splicing – Innovative flute design simplifies fiber access, splicing, and maintenance, saving time in the field.
Safety & Compliance – Low Smoke Zero Halogen (LSZH) and flame-retardant sheath minimizes toxic emissions during fire, ensuring a safer installation environment.
Weather & UV Resistant – Outer PE jacket provides strong protection against moisture, sunlight, and harsh outdoor conditions, ensuring long service life.
Applications
Power Line Installation – Ideal for aerial installation on the same pole with new or existing power lines.
High Electromagnetic Interference Areas – Designed to perform in regions with strong electric fields and high thunderstorm frequency.
Long-Span Communication – Excellent choice for long-distance transmission projects and rural broadband deployment.
Industrial & Utility Networks – Suitable for power utilities, transportation systems, and communication backbone networks.
FTTx & Broadband Projects – Supports fiber-to-the-home (FTTH) and other last-mile network connections.
Specification:
| item | value |
| Model Number | ASU |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable type | Outdoor All dielectric self-supporting aerial cable |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-24Cores |
| Fiber Type | G652D Single mode or as your request |
| Fiber color | Blue, Orange, Green, Brown,etc |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose tube Material | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | Self-supporting aerial |
| Span | 80-150 meters |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located on the 2nd Floor of Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong, China. We are a high-tech joint-stock enterprise integrating R&D, production, and sales of optical fiber cables.
Our company focuses on manufacturing a wide range of optical cables with 2–288 cores, designed to meet diverse network and communication needs. Guided by our core values—integrity, speed, flexibility, efficiency, and innovation—we are committed to delivering high-quality products and services that exceed customer expectations.
We uphold the principle that customer satisfaction is the ultimate measure of our success. With competitive pricing, strict quality control, and professional service, we aim to build long-term partnerships and create mutual growth with our clients worldwide.
We sincerely welcome global customers to visit our factory, discuss cooperation opportunities, and work together for a prosperous future.
WHY CHOOSE US:
Certification:
FAQ
1. Who Are We?
We are Guangzhou Jiqian Fiber Optic Cable Co., Ltd., located in Guangdong, China. Established in 2017, we focus on global fiber optic cable sales, serving customers in:
Africa (33%)
South America (17%)
Western Europe (17%)
Middle East (17%)
Southeast Asia (9%)
South Asia (7%)
Our team consists of 11–50 experienced professionals dedicated to providing quality products and services.
2. How Do We Ensure Quality?
Pre-production sample provided before mass production
100% final inspection before shipment
3. What Can You Buy From Us?
Outdoor / Indoor Fiber Optic Cables
FTTH Drop Cables
Communication Cables
4. What Services Do We Provide?
Delivery Terms: FOB, EXW
Payment Options: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
Currency: USD, CNY
Languages: English, Chinese
5. What Is the Minimum Order Quantity (MOQ)?
MOQ: 1 km
6. Can I Get a Sample?
Yes! We provide free samples. You only need to cover express shipping costs.
7. Do You Accept OEM/ODM Orders?
Yes. As a manufacturer with an in-house engineering department, we can produce according to your specifications.
8. What Is the Delivery Time?
Normally 3–7 days after order confirmation, depending on quantity.
