48 Core GYTA33 Direct Burial Steel Wire Armored Submarine Underwater Fiber Optic Cable

최소 주문 수량 : 1킬로미터 포장 세부 사항 : 나무 드럼
배달 시간 : 3-5 일 지불 조건 : L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력 : 한 달에 8000km
원래 장소: 광동, 중국 브랜드 이름: JQ/OEM/Customize
인증: CE/ISO9001/RoHS/FCC 모델 번호: GYTA33

상세 정보

케이블 유형: GYTA33 원산지 :: 광저우, 중국
섬유 수: 2-288cores 섬유 유형: G652d 단일 모드 또는 요청으로
섬유 브랜드: YOFC/Fiberhome/Corning/Fujikura 지휘자 수: ≥ 10
강도 멤버: 스틸 와이어/FRP 유리 원사 구조: 루즈 튜브는 좌초했습니다
장갑: 더블 아머드 더블 재킷 재킷의 재료: PE 또는 귀하의 요청으로
케이블 구조: 다중 느슨한 튜브 알루미늄 테이프 갑옷 애플리케이션: 잠수함 수중 해저
작업 온도: -40 ~+60 ~ 커넥터 유형: SC/FC/ST/LC
보증: 25년 이상 인증: ROHS, Reach, SGS 및 ISO 인증
재료: 광섬유 느슨한 튜브: PBT
방법: 단일 모드 또는 멀티 모드 칼집: HDPE/LSZH
특징: 골판지 알루미늄 테이프 섬유의 수: 8
제조업체: 재킷 지름: 12.8
사용: 덕트/ 공중/ 수중/ 직접 매장 설치 방법: 공중선
외피 색상: 검은색
강조하다:

48 core steel wire armored fiber optic cable

,

direct burial underwater fiber optic cable

,

GYTA33 submarine fiber optic cable

제품 설명

The GYTA33 optical cable adopts a PBT loose tube design, where the optical fibers are housed and filled with thixotropic gel. At the center of the cable core lies a steel wire strength member, and for cables with higher core counts, a PE cushion layer is added. The loose tubes are stranded around the central strength member in an SZ pattern, with water-blocking compounds filling the interstices. The outer layer is reinforced with round steel wire armor and covered by a polyethylene sheath for enhanced protection.

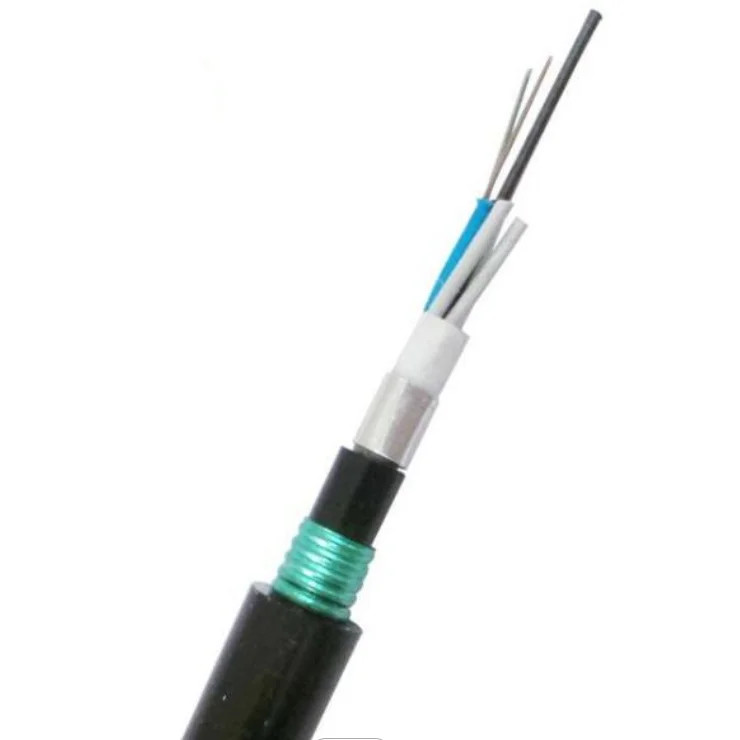

48 Core GYTA33 Direct Burial Steel Wire Armored Submarine Underwater Fiber Optic Cable 0

The GYTA33 optical cable is designed for deployment in freshwater and shallow water environments. It can be laid directly without joints and is suitable for short-distance underwater communication.

Key Features:

  1. Strong resistance to mechanical stress and temperature variations.

  2. Steel wire armor provides high tensile strength.

  3. Longitudinal aluminum tape wrapping acts as an effective moisture barrier.

  4. Full cross-section water-blocking ensures protection against fresh or salt water intrusion.

  5. Outer jacket shields the cable from UV exposure.

  6. Flame-retardant sheath available upon request.

  7. Reliable operation when installed at depths up to 250 meters.

Product Specifications:

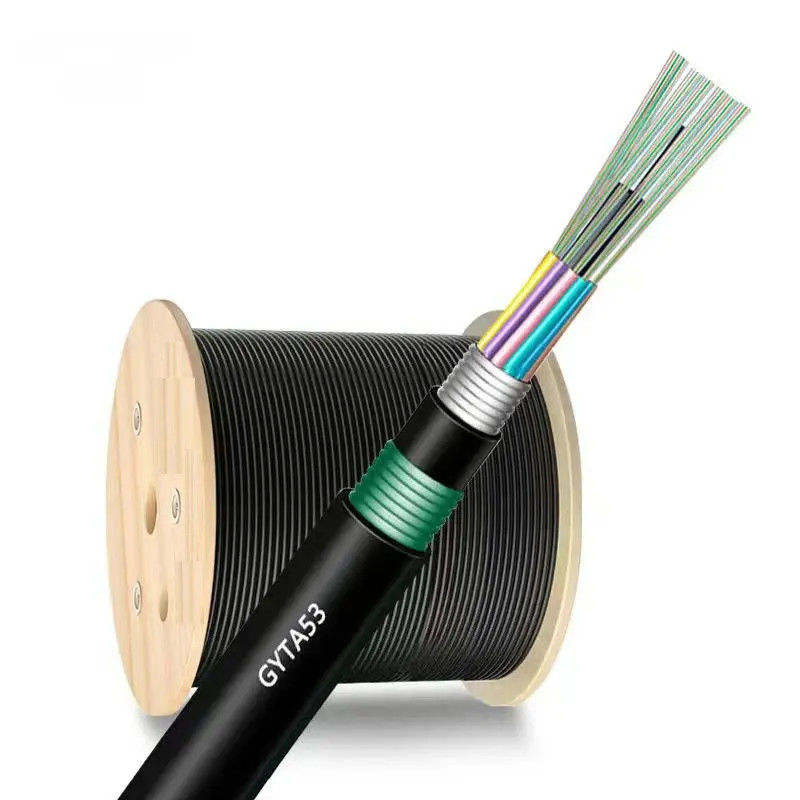

48 Core GYTA33 Direct Burial Steel Wire Armored Submarine Underwater Fiber Optic Cable 1
Package:
24 Core G652D GYTA33 Steel Armored Stranded Loose Tube Optical Fiber Cable
3km/Wooden Drum,Drum dimension 110*55*50cm,G.W 360.0kg.

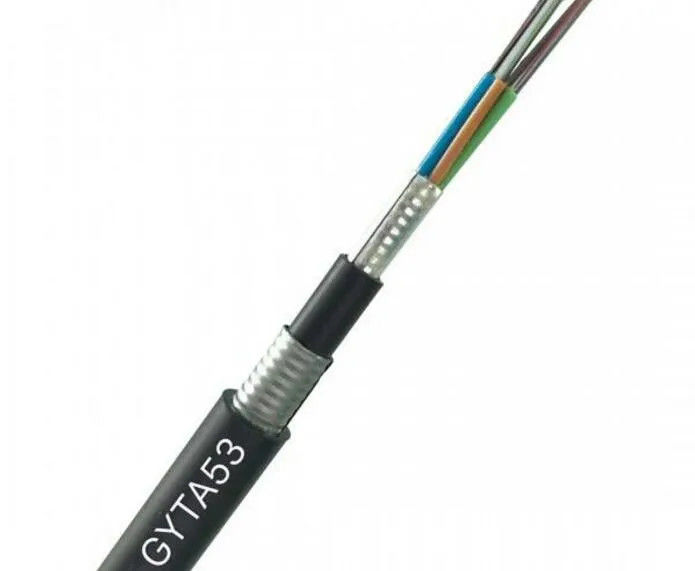

48 Core GYTA33 Direct Burial Steel Wire Armored Submarine Underwater Fiber Optic Cable 2

FAQ

Q1: Are you a manufacturer or a trading company?
A1: We are a direct manufacturer.



Q2: Where is your factory located? How can I visit?
A2: Our factory is in Shenzhen, Guangdong Province. You can fly to Shenzhen or Guangzhou airport, and provide us with your flight number—we’ll arrange pickup.



Q3: Can I order samples?
A3: Of course! Sample orders are welcome for testing our quality and service.



Q4: What is the warranty period?
A4: All products come with a 12-month warranty.



Q5: What payment options do you support?
A5: We accept L/C, T/T, PayPal, Western Union, and MoneyGram.



Q6: Do you offer OEM/branding services?
A6: Yes, we provide professional OEM service. For bulk orders, custom logo printing is free of charge.
