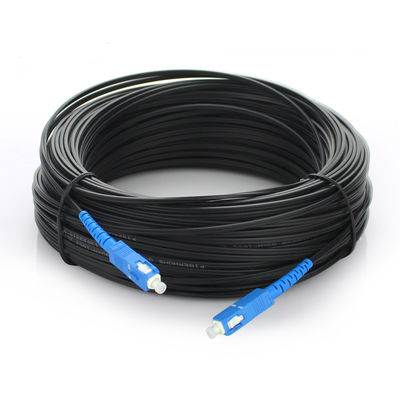

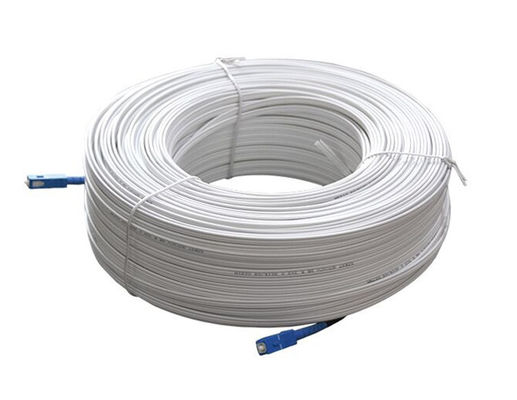

고품질 맞춤형 패치 코드 광섬유 LC/FC/SC/ST
담당자 : Philip
전화 번호 : +8613422342788
왓츠앱 : +8613422342788
상세 정보 |
|||
재료: | LSZH /PVS | 섬유 유형: | G657A1/A2/G652D/G657A1/G657A2 |
---|---|---|---|
색: | 백색 /Black | 중앙 힘 일원: | FRP 강도 부재 / 강선 |
OEM: | 이용 가능합니다 | 설치: | FTTH |
하이 라이트: | SC / UPC-SC / APC 광섬유 패치 코드,G657A FRP 광섬유 패치 코드,G657A FRP 야외 섬유 패치 코드 |
제품 설명
Features:
1. High bandwidth and excellent communication transmission property;
2. Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber.
3. Simple structure, light weight and high performance;
4. Low smoke zero halogen and flame retardant sheath.
Applications:
1. Optical fiber pigtail, also named
2. CATV
3. Optical fiber communication systems
4. Optical fiber data transmission
5. Building network access
Specifications
Connectors type
|
SC/UPC, SC/APC
|
Cable
|
FTTH Indoor/Outdoor Cable 10/20/30/50/80/100/200M Length
|
Fiber Type
|
G657A1/A2
|
Cable Color
|
Black, White
|
Insertion loss
|
≤0.3 dB
|
Return loss
|
≥45dB
|
Joint endurance
|
>1000Times
|
Operating Temperature
|
-40ºC~+60ºC
|
Storage Temperature
|
-40ºC~+60ºC
|
|
