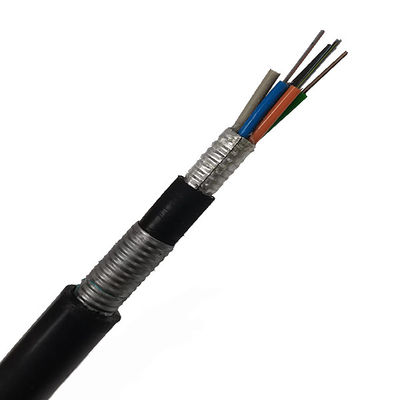

Armored Directly Buried 4-144 Core Fiber Optic Cable GYTA53

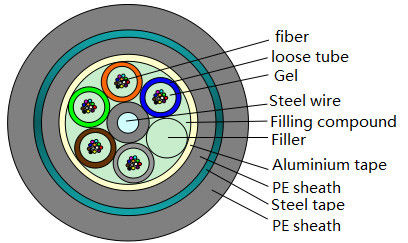

250µm fibers are placed in high-modulus loose tubes filled with water-resistant compound.
A central steel wire provides strength, with tubes stranded around it to form a compact cable core. APL ensures moisture protection, followed by a PE inner sheath.
PSP armor adds mechanical strength, and the cable is finished with a durable PE outer sheath.
Features
Strong mechanical and temperature performance
Water-resistant, high-strength loose tube
Special filling compound protects fibers
Compact structure prevents tube shrinkage
UV-resistant PE jacket for outdoor use
Central steel strength member for added support
Full core filling for moisture protection
APL moisture barrier enhances waterproof performance
Application
Suitable for directly buired laying method
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket(mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 12.0±0.2 | 145 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 12.0±0.2 | 145 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 12.0±0.2 | 145 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 12.0±0.2 | 145 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 12.0±0.2 | 145 |
| 36 | 1+6 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 13.2±0.2 | 155 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 13.2±0.2 | 155 |
| 60 | 1+5 | 12 | 2.2±0.1 | 1.61.6 | 1.6 | 13.2±0.2 | 160 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 13.2±0.2 | 180 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 15.4±0.2 | 220 |
| 144 | 1+12 | 12 | 2.2±0.1 | 1.8/6.4 | 1.6 | 18.5±0.3 | 270 |
GYTA53( Aluminium polyethylene laminate)
Packing

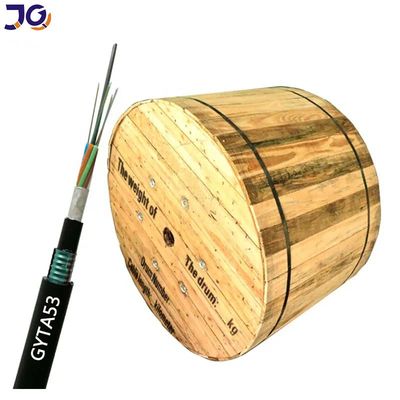

1/2/3/4km or customized length export wooden drum
FAQ
1. Are you a manufacturer?
Yes, we are a manufacturer with 10 years of experience based in Guangzhou.
2. How do you ensure quality?
All products are fully tested before shipment. Free samples are available.
3. Do you accept small orders?
Yes, trial orders are supported.
4. What is your delivery time?
Usually 3–7 working days, depending on quantity.
5. Do you offer OEM service?
Yes, customization and logo printing are available.
