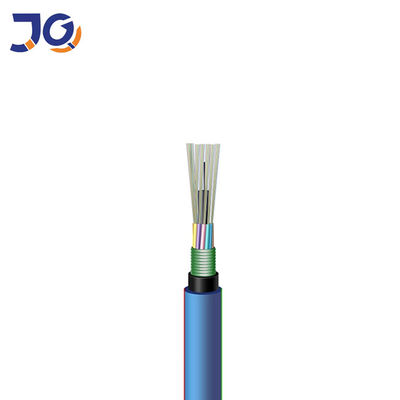

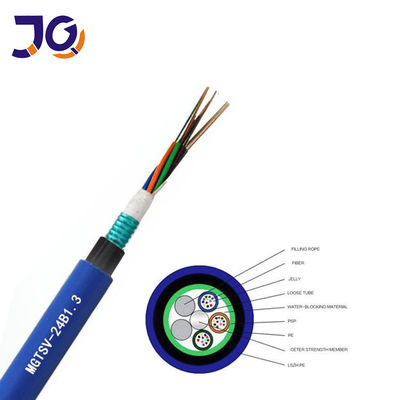

Bule LSZH Jacket Mining Flame-Retardant Fiber Optic Cable 24 core MGTSV
Excellent flame retardant performance for safe operation
High strength loose tube with hydrolysis resistance
Double sheath and single armor design offering strong crush resistance waterproofing and anti rodent protection
Non woven tape wrapped loose tube providing effective water blocking
Special tube filling compound ensures reliable fiber protection
Blue PVC or LSZH jacket flame retardant and easy identification
Flexible structure with high crush resistance for easy installation
Suitable for mine duct installation
Suitable for aerial deployment
Storage temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius
Operating temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius
|
Item Name
|
MGTSV Fiber Optic Cable
|
|
Place of Origin
|
Guangdong,China
|
|
Model Number
|
MGTSV
|
|
Brand Name
|
JQ |
|
Fiber Type
|
Single mode ITU-T G652D
|
|
Fiber No.
|
2-288 cores
|
|
Strength Member
|
Central Steel Wire/ FRP
|
|
Material of Jacket
|
Flame-retardant Sheath
|
|
Cable Structure
|
Stranded Loose Tube
|
|
Certificate
|
ISO9001/CE/RoHS/CE
|
|
Storing Temperature
|
-40℃ to +70℃
|
|
Application
|
Duct/Aerial
|
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical data
| Cable Type |
Fiber Count |
Tubes +Fills |
Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long /Short Term N/100m |
Bending Radius Static /Dynamic mm |
|
MGTSV-2~6 |
2~60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62~72 | 62~72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74~96 | 74~96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98~120 | 98~120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122~144 | 122~144 | 12 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146~216 | 146~216 | 18 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |
Product Image
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
