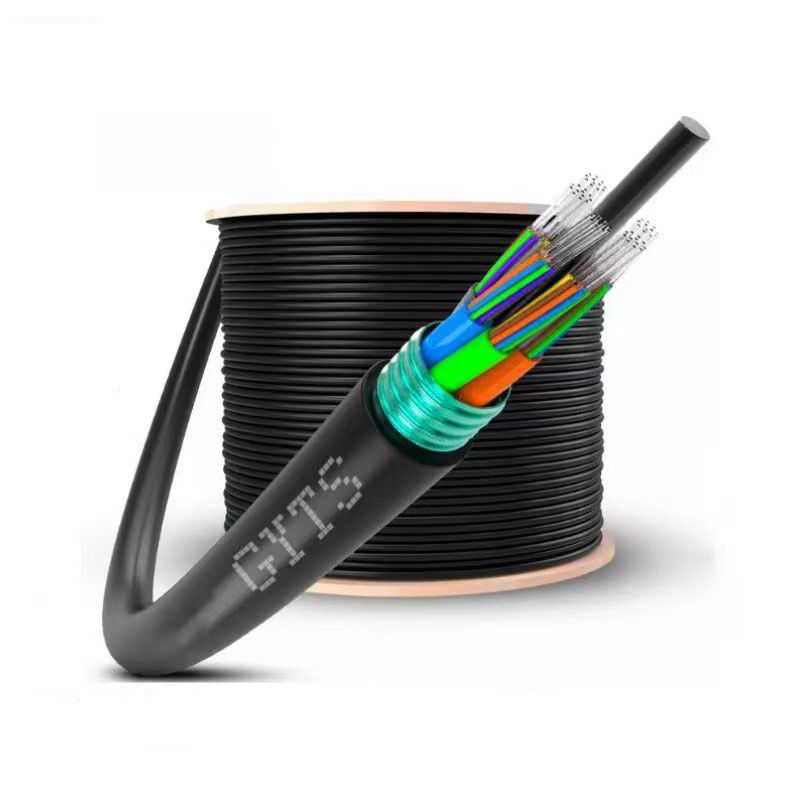

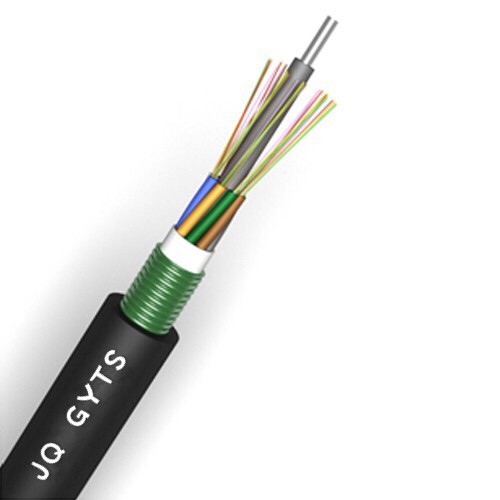

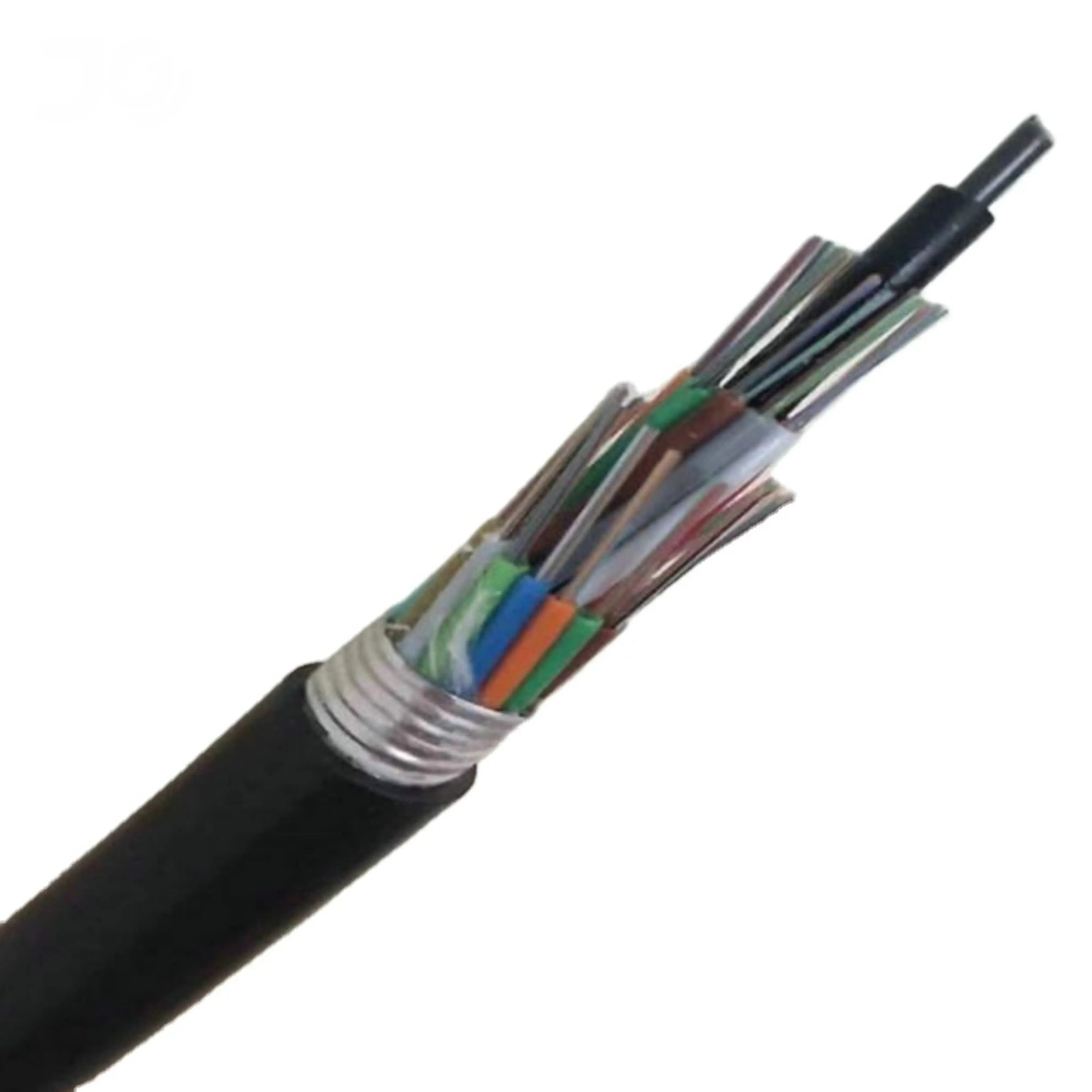

GYTS 24 코어 덕트 광섬유 케이블
담당자 : JQ CABLE
전화 번호 : +8618122383351
왓츠앱 : +8618122383351
|
상세 정보 |
|||
| 섬유 종류: | 요구로서의, YOFC, 화이바홈 | 색상: | 검거나 오렌지색이거나 주문 제작됩니다 |
|---|---|---|---|
| 재킷: | PE, MDPE, HDPE | 강도 멤버: | 스틸 와이어/FRP 유리 원사 |
| 섬유 수: | 2-288 코어 | 설치: | 에어리얼 및 덕트 |
| 제품명: | 야외 광 섬유 케이블 | 어플리케이션: | 네트워크 / 장거리 통신 |
| 강조하다: | 24 core duct fiber optic cable,armored single mode fiber cable,outdoor stranded loose tube cable |
||
제품 설명
Strong mechanical & temperature performance
Water-resistant high-strength loose tube
Special grease for better fiber protection
Compact structure prevents tube shrinkage
UV-resistant PE jacket for outdoor use
Central strength member + waterproof gel
Full-core filling with APL moisture barrier
![]()
![]()
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.8 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.7 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 11.3 | 140 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Application
Suitable for external application in duct and aerial
![]()
Delivery&Payment
![]()
1. Are you a manufacturer?
Yes. We have 10+ years of experience in fiber optic cable production. Factory located in Guangzhou—welcome to visit.
2. How about quality?
All fibers are 100% tested before delivery. Free samples available after price confirmation.
3. Do you accept small orders?
Yes. Small and trial orders are supported.
4. Delivery time?
Generally 3–7 working days, depending on quantity.
5. Do you offer OEM?
Yes. We support OEM/ODM and can print your logo.
