Optical Fiber Cutter Handheld Optical Fiber Cleaver
Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver
지금 연락

Optical Fiber Cutter Handheld Optical Fiber Cleaver

최소 주문 수량 : 1 조각 포장 세부 사항 : 내부 플라스틱 케이스, 외부의 인수
배달 시간 : 3-5일, 주문 수량에 따라 다릅니다. 지불 조건 : L/C, T/T, Western Union, Alipay
공급 능력 : 한 달에 2000 조각
원래 장소: 중국 브랜드 이름: JQ/OEM
인증: ISO 9001 모델 번호: FC-20

상세 정보
애플리케이션: 네트워크 도구 제품 이름: 광섬유 절단기
모크: 1pcs 보증 시간: 1 세
갈라진 길이: 단일 섬유 : 8 ~ 20mm 적용 가능한 섬유 케이블: 단일 섬유 : 0.25 ~ 3.0mm
전형적인 절단 각도: 0.5도 미만
강조하다:

handheld optical fiber cleaver

,

optical fiber cutter tool

,

fiber optic cleaver with warranty

제품 설명

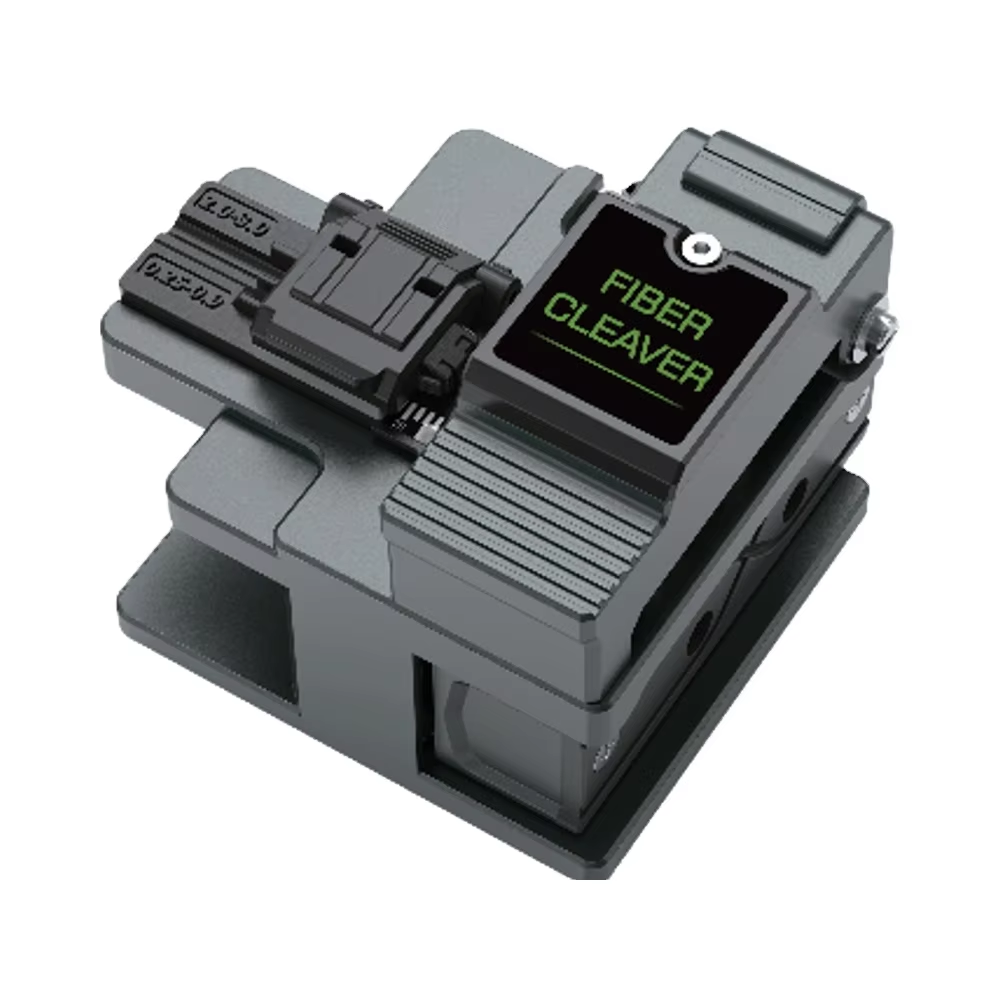

FC-20 Handheld optical fiber cleaver

Blade life up to 48,000 times
Typical cleaving angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Palm-sized design, lightweight and portable
All-in-one holder is suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Optical Fiber Cutter Handheld Optical Fiber Cleaver 0

Optical Fiber Cutter Handheld Optical Fiber Cleaver 1Optical Fiber Cutter Handheld Optical Fiber Cleaver 2





Product configuration
Fiber cleaver FC-20
1
Carrying case
1
Quick guide
1

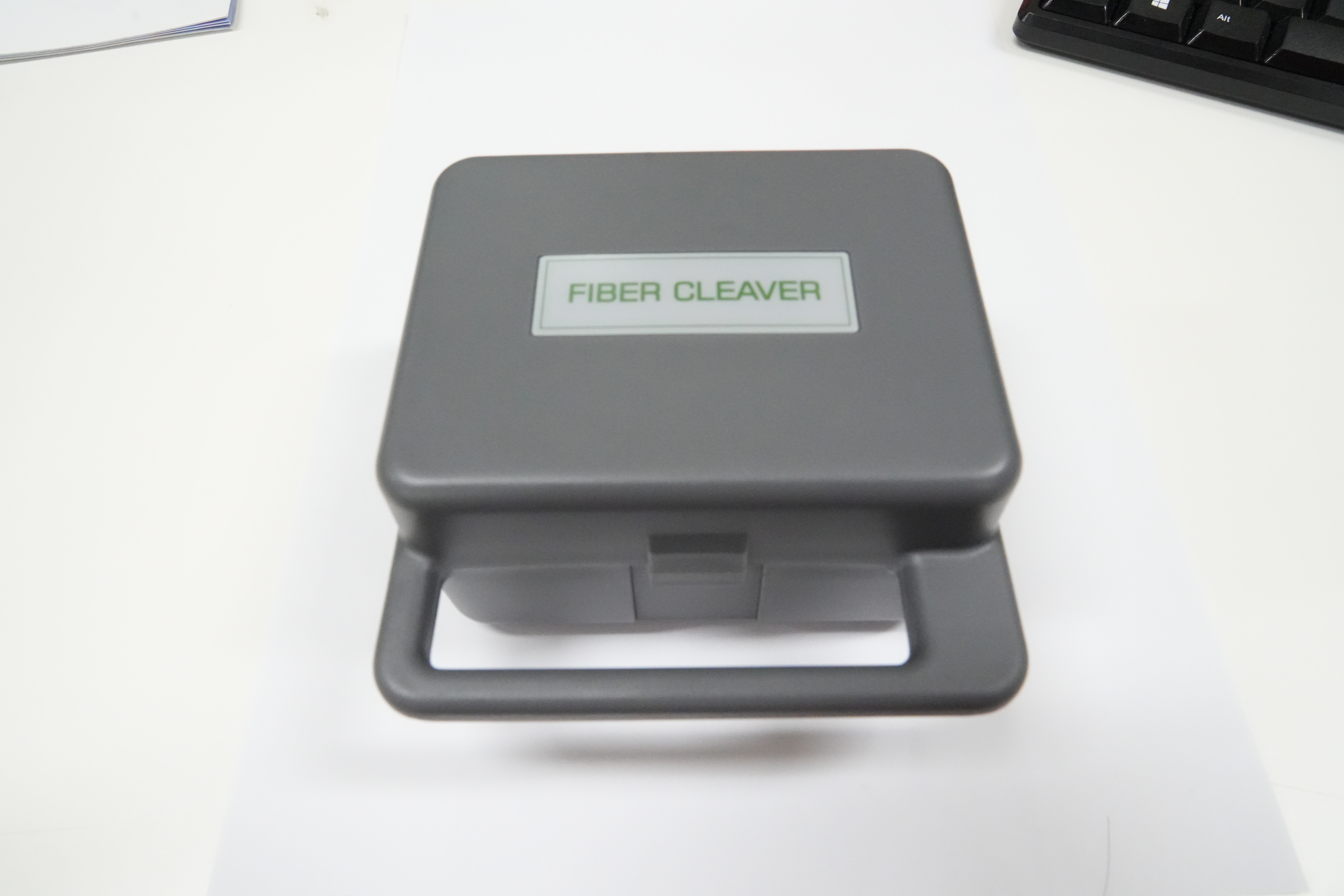

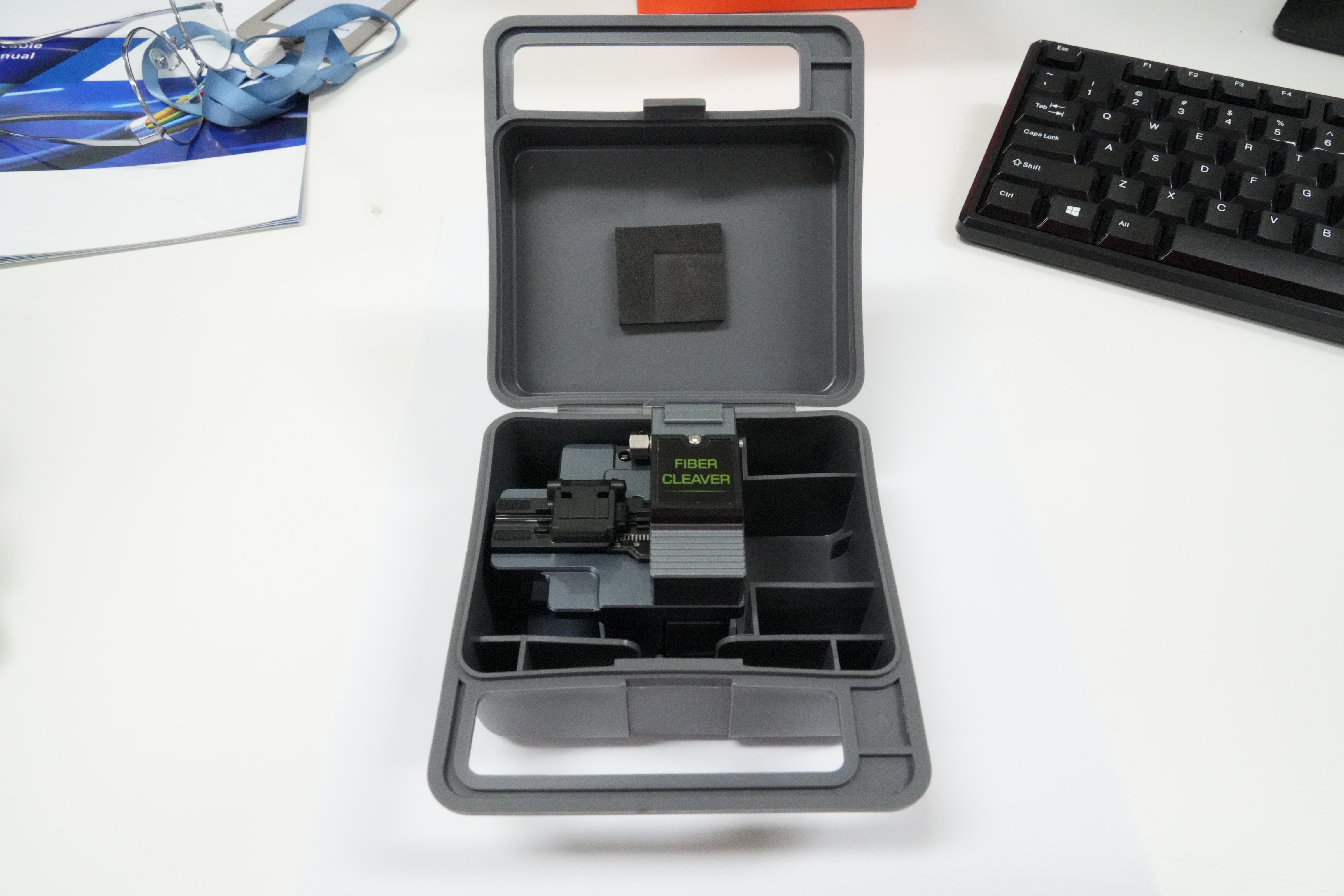

Professional carrying case

The slot design in the box prevent damage to the cutting blade body caused by shaking and collision,and can effectively protect the cutting blade



Optical Fiber Cutter Handheld Optical Fiber Cleaver 3



Specification

Brand Name
JQ/HAISO/OEM
Place of Origin
Guangzhou China
Use
ftth
Warranty Time
1year
Product name
Optical Fiber Cleaver
No. of Fiber
Single fiber
Ladding Diameter
125μm
Cleaved Length
Single fiber: 8~20mm
Applicable Fiber Cable
Single fiber: 0.25 ~ 3.0mm
Typical Cleaved Angle
Less than 0.5 Degrees
Typical Blade Life
Total 48,000 fiber cleaves (replaceable)
Auto Return
Pre-fitted
MOQ
1Pcs
Dimension
55W *55D*50H(mm)
Weight
235g



Optical Fiber Cutter Handheld Optical Fiber Cleaver 4





Optical Fiber Cutter Handheld Optical Fiber Cleaver 5

Optical Fiber Cutter Handheld Optical Fiber Cleaver 6Optical Fiber Cutter Handheld Optical Fiber Cleaver 7







We Support OEM and Customize products



Service: On-time deliveries,best price and high quality product.
We Support OEM and Customize products,Welcome to your inquiry!
Factory address: No 43 Lixin 9th Road Xintang Town Zengcheng District Guangzhou city China

Welcome to your inquiry!
Contact me at +86 18122384553
