1-4 Core GJYXCH FTTH Fiber Optic Drop Cable G652D Simplex Outdoor Use With Steel Messenger

최소 주문 수량 : 1킬로미터 포장 세부 사항 : 판지 상자
배달 시간 : 2-5 일 지불 조건 : L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력 : 월 80000km
원래 장소: 광저우 중국 브랜드 이름: JQ/OEM/Customize
인증: CE/ISO9001/RoHS/FCC 모델 번호: ftth 드롭 케이블

상세 정보

브랜드 이름: JQ / OEM / Customize 덮개의 재료: LSZH/PVC
재킷 색: 검정, 흰색 등 강도 멤버: 스틸 와이어/FRP 유리 원사
섬유: 단일모드, 다중-모드 섬유 유형: 단일 모드
섬유 브랜드: YOFC 코닝 파이버홈 핵심 단어: ftth 드롭 케이블
신청: ftth fttb fttx 네트워크 케이블 유형: 자부장형 전선
전령: 스틸 와이어 보증 시간: 30 년
사용: 회로망 인장 강도: 100N
케이블 구조: 자부장형 전선 제조업체:
재킷 색상: 흑백 핵심 번호: 1-12 코어
작동 온도: -40 ° C ~ +70 ° C 아무레드:
타이트 버퍼 색: 하얀색 Weigt: 10kg
서비스: OEM 색상: 흑백
케이블 색상: 검은색 분쇄 저항: 1000N/100mm
굽힘 반경: 20mm 섬유의 수: 1/2/4 핵심
강조하다:

GJYXCH FTTH fiber optic cable

,

outdoor fiber optic drop cable

,

G652D simplex fiber cable

제품 설명

GJYXCH 1-4 Core Indoor FTTH Fiber Optic Cable Single Mode G652D/G657A1/A2 1km 2km – Competitive Price

1-4 Core GJYXCH FTTH Fiber Optic Drop Cable G652D Simplex Outdoor Use With Steel Messenger 0

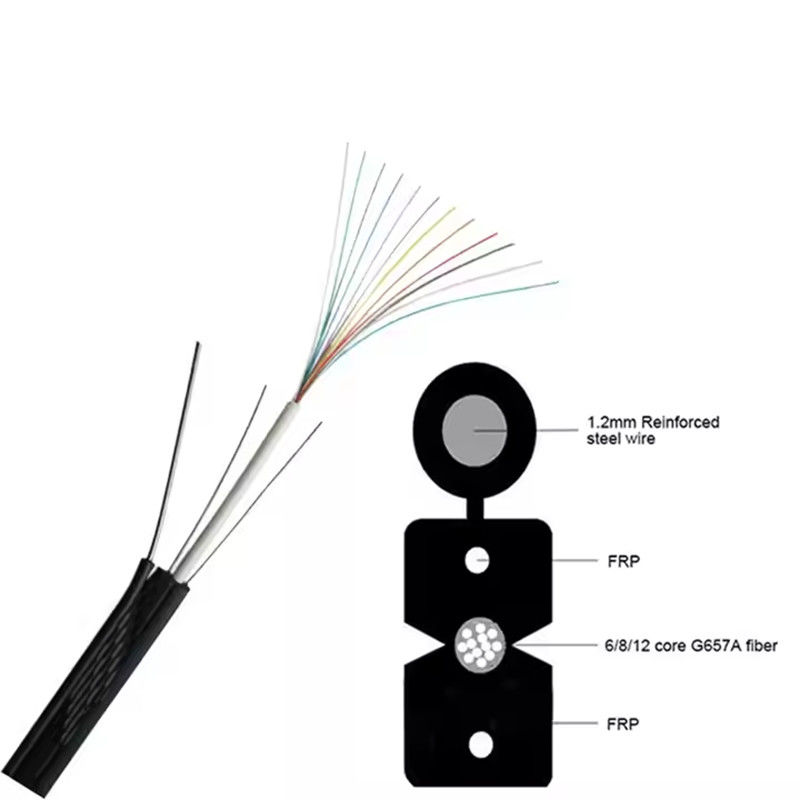

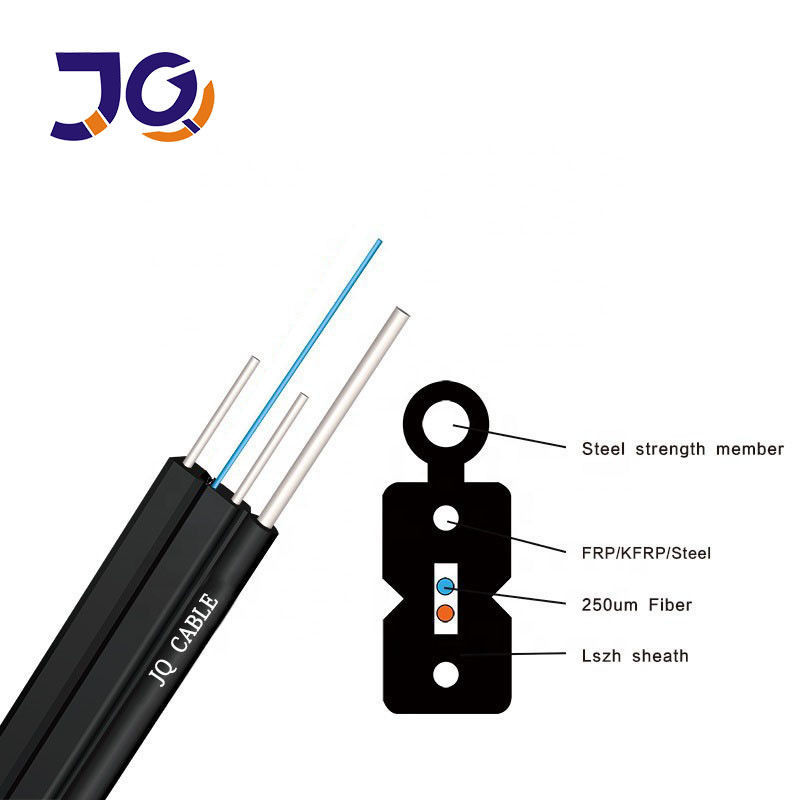

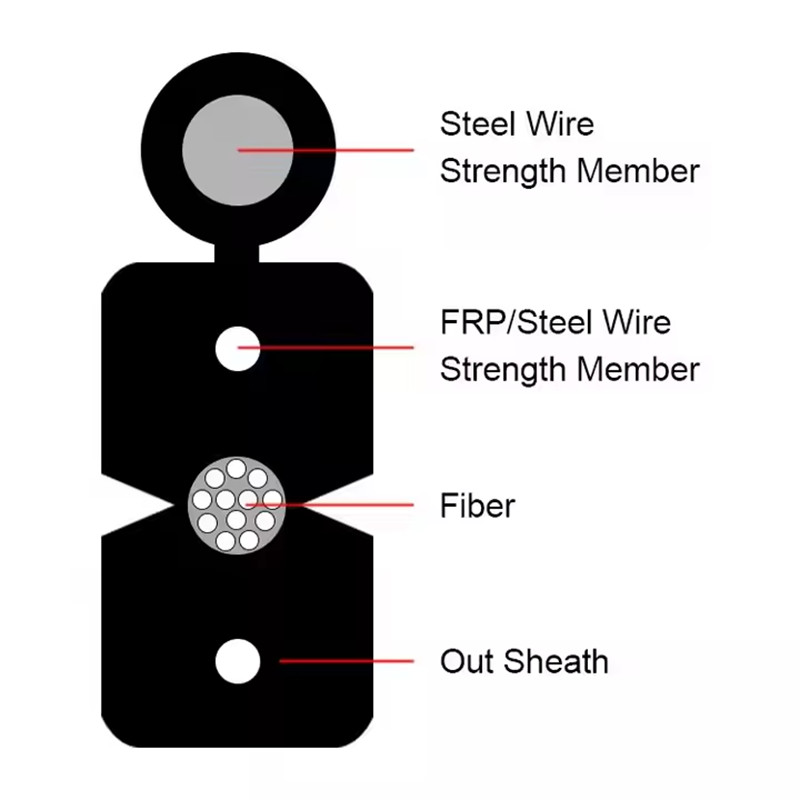

GJYXCH FTTH Drop Cable features a centrally positioned optical fiber unit for stable signal transmission. Two parallel fiber-reinforced steel wires run along the sides, providing additional tensile strength, while an extra central steel wire further enhances durability. The cable is finished with a black or colored LSZH jacket, offering flame retardancy and environmental protection, making it ideal for indoor fiber-to-the-home (FTTH) installations.

1-4 Core GJYXCH FTTH Fiber Optic Drop Cable G652D Simplex Outdoor Use With Steel Messenger 1

Features:

  1. Compact Design

    • Small-diameter construction with tight-buffered or loose-tube fiber

    • Outer diameter typically 3–6mm for easy handling and installation

  2. Mechanical Strength

    • Reinforced with aramid yarn (Kevlar) or fiberglass rods, providing tensile strength over 100N

    • Flexible design resists repeated bending, with a minimum bend radius of 20× cable diameter

  3. Environmental Durability

    • UV-resistant LSZH or PE outer jacket

    • Operating temperature from -40°C to +70°C

    • Protected with water-blocking gel or dry swellable tape

  4. Easy Installation

    • Lightweight (<10kg/km) for simple handling

    • Pre-connectorized options for rapid deployment

    • Suitable for aerial, duct, or direct-burial installation

  5. High Transmission Quality

    • Low attenuation (<0.4dB/km at 1310nm)

    • Minimal macro- and micro-bending losses

Applications:

  • Outdoor FTTH access networks via aerial deployment

  • Vertical cabling systems for multi-gigabit connections inside buildings

  • High-performance optical backbones for critical network operations

Optical Characteristic:

Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.34 1550nm:≤0.21
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as require



Packing



1-4 Core GJYXCH FTTH Fiber Optic Drop Cable G652D Simplex Outdoor Use With Steel Messenger 2

1-4 Core GJYXCH FTTH Fiber Optic Drop Cable G652D Simplex Outdoor Use With Steel Messenger 3

The packaging is up to you, we can provide a variety of packaging.

Certificate:

1-4 Core GJYXCH FTTH Fiber Optic Drop Cable G652D Simplex Outdoor Use With Steel Messenger 4

FAQ

  1. Are you a trading company or manufacturer?
    We are a manufacturer with over 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—welcome to visit!

  2. How about the product quality?
    Every fiber is tested before delivery to ensure quality. After price confirmation, you can request free samples to check the quality.

  3. Do you accept small orders?
    Yes, small orders are welcome. We support new customer projects because we understand that business often starts small.

  4. What is the delivery time?
    Usually 3–7 working days, depending on the order quantity. We will arrange your order as soon as possible after payment.

  5. Do you provide OEM services?
    Yes, OEM is available. We can print your logo on the products, and we are open to your ideas for customization.
