물 저항하는 48 핵심 500m 경간 OFC ADSS 광섬유 케이블
담당자 : Philip
전화 번호 : +8613422342788
왓츠앱 : +8613422342788
상세 정보 |
|||
섬유형: | 요구로서의 YOFC 또는 화이바홈 | 섬유 번수: | 4 / 6 / 12 / 24 /48 /96 핵심 |
---|---|---|---|
색: | 주문을 받아서 만들어지는 검정 | 길이: | 2km 또는 주문을 받아서 만들어진 길이 |
재킷 물자: | PE 또는에 | 강도 부재: | FRP 중심 강도 부재 |
작동 온도: | -40 ~ +60 C | 경간: | 50/100/200/300/400m |
설치: | 자활하는 공중선 | 느슨한 관: | PBT |
하이 라이트: | 100m ADSS 광섬유 케이블,꼼짝 못하게 된 ADSS 광섬유 케이블,야외 ADSS 광섬유 케이블 |
제품 설명

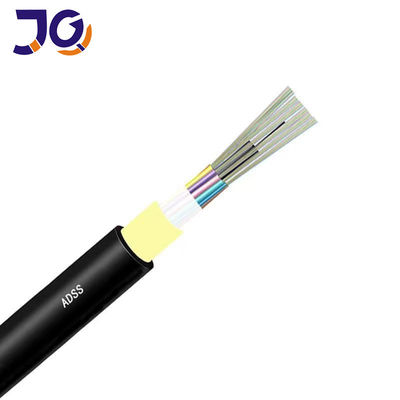

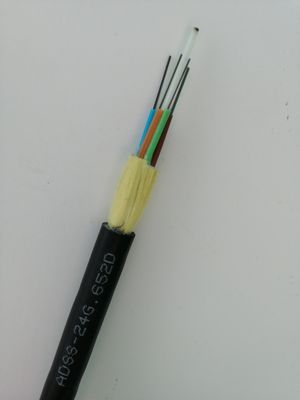

Outdoor Stranded 100m Span ADSS 4 / 6 / 12 / 24 /48 /96 Core Fiber Optic Cable
Product Description

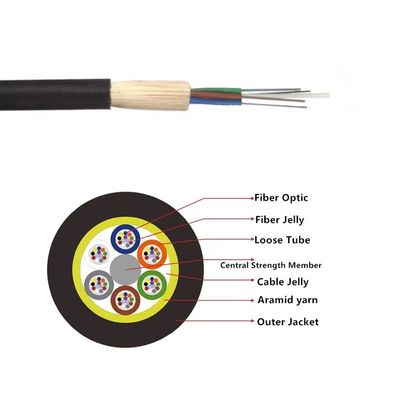

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Product Features
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Data
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter /pad diameter(mm) |
Nominal Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 83 |
36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 84 |
48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 93 |
72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 95 |
96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7 | 12.5±0.5 | 122 |
144 | 1+12 | 12 | 2.2±0.1 | 3.5/6.4 | 1.7 | 15.5±0.5 | 185 |
Package Detail
