Non Metal Unarmored 72 Core Aerial Fiber Optic Cable

지금 연락

비 금속 갑옷을 입지 않은 72 핵심 공기 광섬유 케이블

최소 주문 수량 :	1km	포장 세부 사항 :	나무로 되는 드럼
배달 시간 :	5-8 작업 일수	지불 조건 :	L/C (신용장), 전신환, 웨스턴 유니온
공급 능력 :	달 당 4500 킬로미터

원래 장소:	광저우, 중국	브랜드 이름:	JQ/OEM
인증:	ISO9001 ROHS CE-EMC FCC

상세 정보
모델 번호:	GYFTY	섬유 번수:	4-288 핵심
섬유 유형:	단일 모드/다 형태	재킷:	PE
색:	검정색	상품 이름:	옥외 광학 섬유 케이블
길이:	2km 또는 주문을 받아서 만들어진 길이	구조:	느슨한 관
설치:	공기이거나 도관	지휘자의 수:	≥ 10
하이 라이트:	EMC 공기 광섬유 케이블 , 옥외안테나 광섬유 케이블

제품 설명

Non-Metal Unarmored 12 24 48 72 Core Fiber Optic Cable GYFTY

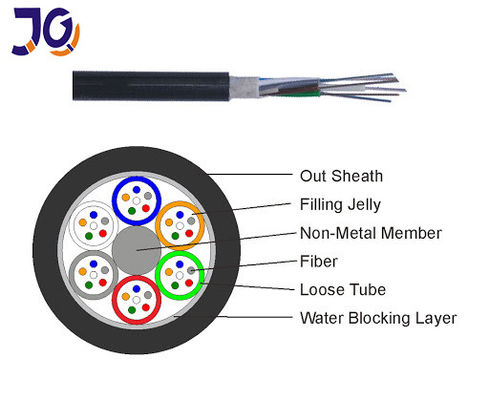

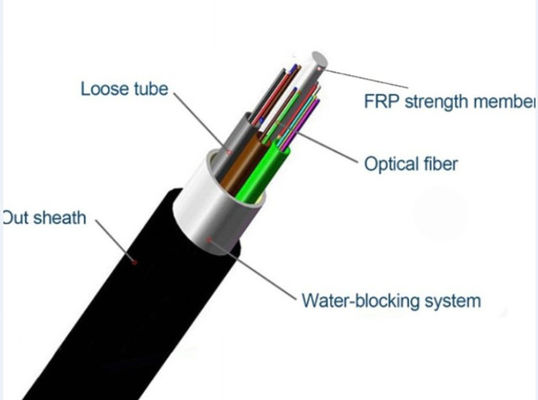

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.

5. jelly-filled, fiber contained loose tube and PP filler

6. water blocking tape, PE outer sheath

Application

Aerial or Duct

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHzkm

2200MHz:km

@1300nm

21000MHz-km

2600MHzkm

NumericalAperture

0.200+0.015NA

0.275+0.015NA

CableCut-

off Wavelength λcc

≤1260nm

Cable Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.2	85	6	6	1500	600	1000	300
38~72	11.1	100	12	6	1500	600	1000	300
74~96	12.6	130	12	8	1500	600	1000	300
98~120	14.1	162	12	10	1500	600	1000	300
122~144	15.9	204	12	12	1800	600	1000	300
146~216	15.9	205	12	18(2 layers)	2200	600	1000	300
>144	Available upon customer request

Product Detail

비 금속 갑옷을 입지 않은 72 핵심 공기 광섬유 케이블 1

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
