고품질 맞춤형 패치 코드 광섬유 LC/FC/SC/ST
상세 정보 |
|||
원래 장소: | 광저우, 중국 | 브랜드 이름: | Jiqian |
---|---|---|---|
모델 번호: | SC / UPC 땋아 늘인 머리 | 길이: | 1.5m 또는 주문을 받아서 만드는 |
연결관 유형: | SC/UPC | 섬유 유형: | G652D/G657A |
재킷: | PVC/LSZH | 물미 말단 면: | UPC |
하이 라이트: | 0.9 밀리미터는 광섬유 땋아 늘인 머리를 단순화합니다,1.5M 0.9 밀리미터 광섬유 땋아 늘인 머리,1.5M 0.9 밀리미터 단일모드 파이버 피그테일 |
제품 설명

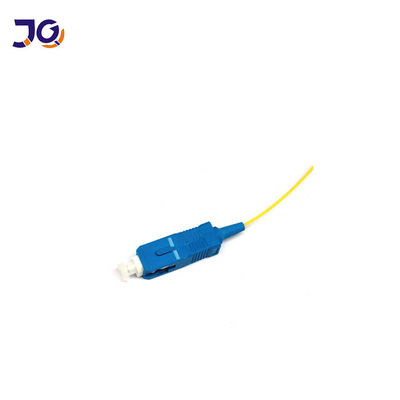

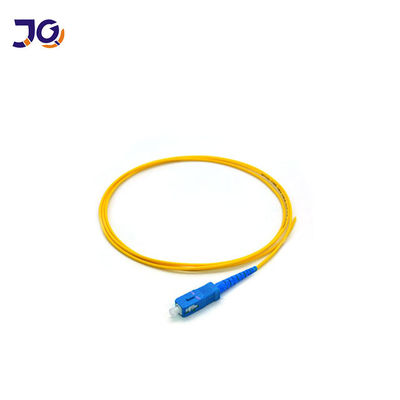

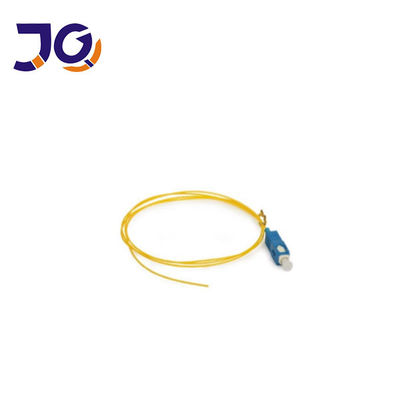

SC/UPC 1.5M Single mode 0.9mm Simplex Fiber Optic Pigtail
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.
• Apply for CATV, LAN, Telecom network, test equipment
• CATV
• Telecommunication networks
• Active device termination
• Metro
• Local Area Networks(LANs)
• Test equipment
• Premise installations
Performance Index
Item | SM(Single Mode) | MM(Multimode) | |||
Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
Endface Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
Return Loss (dB) | >45 | >50 | >60 | / | |
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
Anti-tensile Force (N) | >70 | ||||
Temperature Range (℃) | -40~+80 |
FAQ
1,Q:What is the MOQ?
2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.
4.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
