물 저항하는 48 핵심 500m 경간 OFC ADSS 광섬유 케이블
담당자 : Philip
전화 번호 : +8613422342788
왓츠앱 : +8613422342788
상세 정보 |
|||
섬유 유형: | 요구로서의 YOFC 또는 화이바홈 | 섬유 번수: | 2-144 핵심 |
---|---|---|---|
색: | 주문을 받아서 만들어지는 검정 | 길이: | 2km 또는 주문을 받아서 만들어진 길이 |
재킷 물자: | PE 또는에 | 이름: | ADSS 광 케이블 |
힘 일원: | FRP 중심 강도 부재 | 작동 온도: | -40 ~ +60 C |
경간: | 50/100/200/300/400m | 설치: | 자활하는 공중선 |
하이 라이트: | 공중 케이블을 지원하는 OEM 전폭 100M 자립하 공중 케이블,PE 재킷 본인이 100M 자립하 광섬유 케이블에 걸쳐 이어집니다,Span 100M self supporting fiber optic cable |
제품 설명
ADSS Fiber Cable Span 100M with PE Jacket Self-supporting Aerial Cable
ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking)
outer sheath.
Features
Crush resistance and flexibility,The following measures are taken to ensure the cable watertight
100% cable core filling,Loose tube filling compound
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Data
Structure and Technical Specifications ADSS-DJ(50-500m Span)
Ref.Outer Diameter (mm) |
Ref.Weight kg/km) |
Rec.DailyMax. Working Tension(kN) |
Max Allowable Working Tension [kN) |
Break Strength (kN) |
Strength Member CSA. (kN/mm2) |
Modulusof Elasticity CSA kNmm2)[ |
Heat Expansion Coefficient (X10-6/K) |
SuitableSpan Meter ABICP |
||||
PE |
AT |
|
||||||||||
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
15.5 |
190 |
204 |
9.0 |
26 |
|60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |

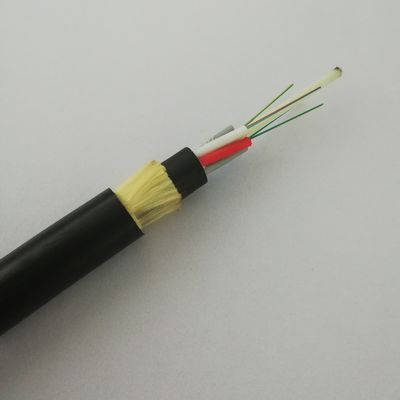

Product Picture
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Package Detail
FAQ
