상세 정보
재킷 물자:	PE	섬유 번수:	2-144Core
상품 이름:	옥외 눈 섬유 케이블	섬유 유형:	YOFC 또는 요구로서
색:	검정색	타입:	잡종 광학 섬유 케이블
구조:	좌초된 느슨한 관	설치:	공중선/관/덕트
작동 온도:	-40 ~ +60 C	애플리케이션:	원거리 통신
하이 라이트:	YOFC 야외 광섬유 케이블 , OPLC 4 핵심 광섬유 cable , 2 동선 야외 섬유 케이블

제품 설명

Outdoor 2 Copper wire OPLC 4 Core Composite Hybrid Optical Fiber Cable

Product Description

Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (PE) sheath.

Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Compact structure and lightness, flexible and good bend-resistant performance

Low dispersion and attenuation.Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and enviromental properties.The armoring of steel wire and corrugate steel tape make cable have nice properties of moisture resistance and crush resistance

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Range of Temperature			-20c~ +60c
Riser			Type OFNR/OFN FT4
Plenum			Type OFNR/OFN FT6
Jacket			LSZH or PE
Code name	cable cores	Diameter (mm)	Copper Wire (mm)	Linear mass (kgk m)	Tensile		Crush		Bending radius
Code name	cable cores	Diameter (mm)	Copper Wire (mm)	Linear mass (kgk m)	Short Term (N)	Long Term (N)	Short lerm N)	Long Term (N)	short Term N)	Long Term (N)
OPLC-2*0.5	6~24	10	2*0.5	125	1500	600	1000	300	20D	10D
OPLC-4*0.5	6-~24	10	4*0.5	130	1500	600	1000	300	20D	10D
OPLC-2*0.75	6~24	10	2*0.75	128	1500	600	1000	300	20D	10D
OPLC-4*0.75	6~24	10	4*0.75	135	1500	600	1000	300	20D	10D
oPLC-2*1.0	6~24	10	2*1.0	130	1500	600	1000	300	20D	10D
OPLC-4*1.0	6-~24	12	4*1.0	150	1500	600	1000	300	20D	10D
OPLC-2*1.5	6~24	12	2*1.5	140	1500	600	1000	300	20D	10D
OPLC-4*1.5	6~24	12	4*1.5	160	1500	600	1000	300	20D	10D
OPLC-2*2.5	6~-24	12	2*2.5	150	1500	600	1000	300	20D	10D
OPLC-4*2.5	6-~24	14.5	4*2.5	180	1500	600	1000	300	20D	10D

Product Image

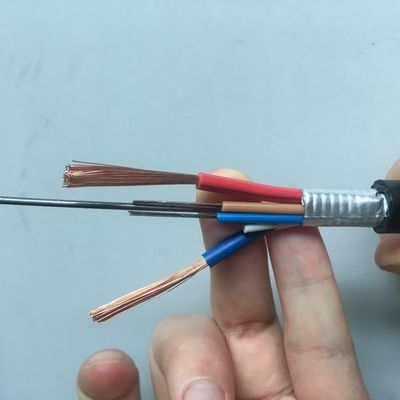

2 동선 OPLC 4 핵심 YOFC 야외 광섬유 케이블 1

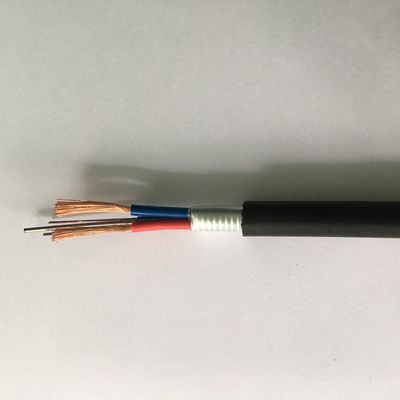

2 동선 OPLC 4 핵심 YOFC 야외 광섬유 케이블 2

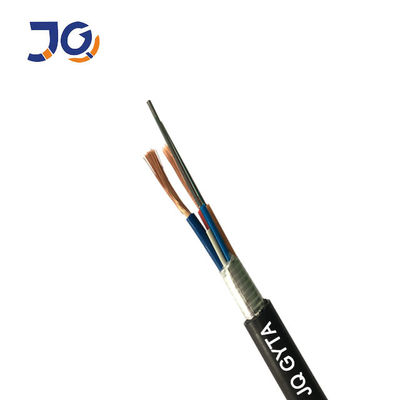

2 동선 OPLC 4 핵심 YOFC 야외 광섬유 케이블 3

Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.

Packing

1/2/3/4/km in one wooden drum,deliver days:5-8work days

2 동선 OPLC 4 핵심 YOFC 야외 광섬유 케이블 4

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.

태그:

제품 상세 정보:
원래 장소:	광저우 중국
브랜드 이름:	JQ/OEM
인증:	ISO9001
모델 번호:	GDTS
결제 및 배송 조건:
최소 주문 수량:	1km
포장 세부 사항:	나무로 된 드럼에서 1/2/3/4/5 킬로미터
배달 시간:	3-5dyas
지불 조건:	L/C (신용장), 전신환, 웨스턴 유니온
공급 능력:	일 당 30 킬로미터
